CASCADE POWER SUPPLY

I N T R O D UC T ION
The power supply (PSU) is a DC-DC converter providing a low noise output with an ultra-high
efficiency above 94.5%. It delivers up to 2x16.7A output current with 48V output voltage and is
capable of operating from -30°C to 60°C. See Figure 5 for images of the CASCADE power supply.
The power supply is designed to provide sufficient power for a full CASCADE subrack containing
two transceivers, two 125W power amplifiers, three fans and an option slot. The PSU can also be
used in other configuration requiring less current, for example, a multiple receiver configuration (up
to six transceivers).

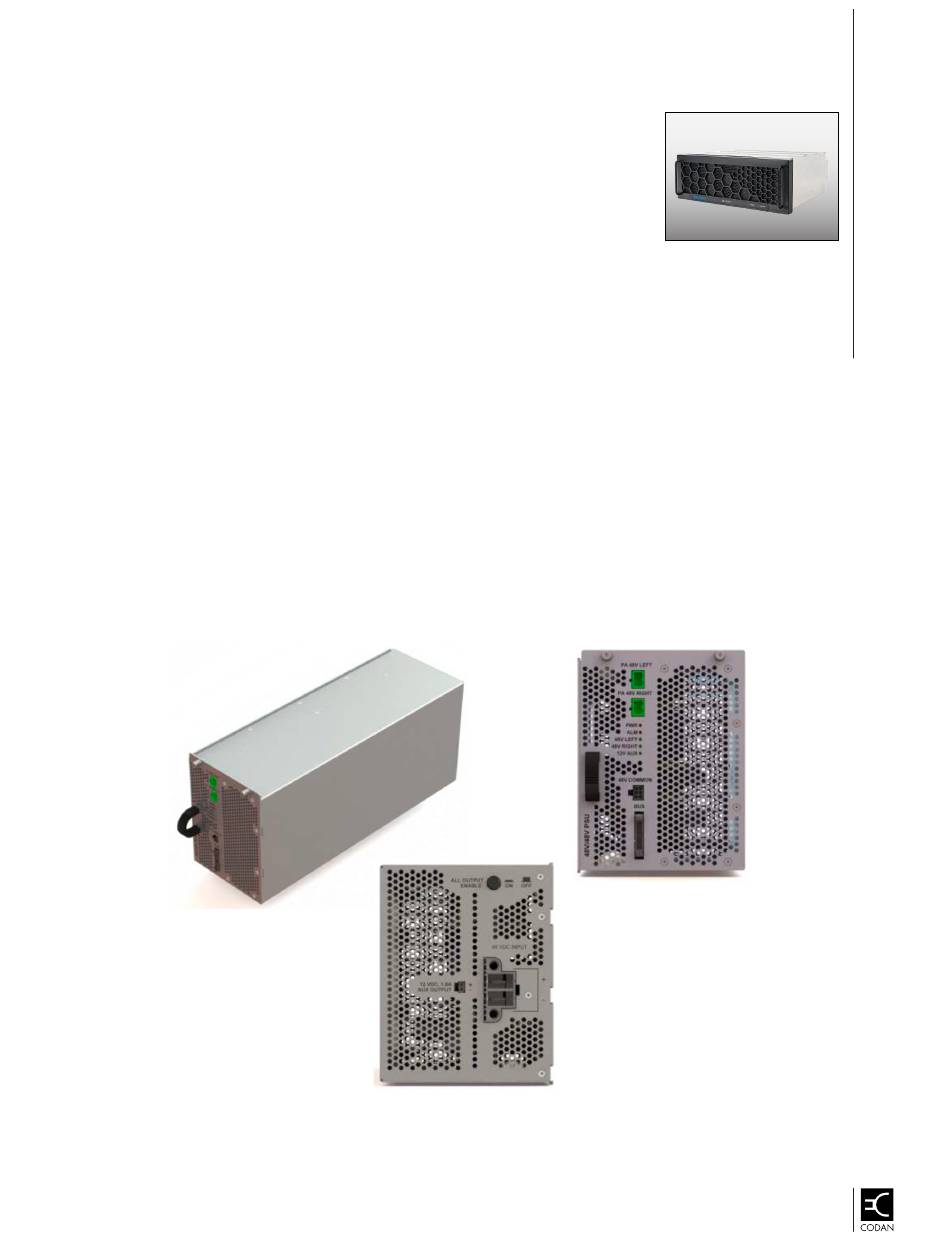

PSU Front View
PSU Rear View
FIGURE 5: Power Supply – Side Front and Rear Views
