I N T R O D UC T ION
The CASCADE Transceiver (TRx) is a full duplex software controlled radio (see Figure 11) and is
comprised of:
An RF PCB that contains the Transmit, Receive and Clock Distributions sections
•
• A Digital PCB that contains the user interfaces and a single board computer which acts as
the brains of the CASCADE product

CASCADE TRANSCEIVER

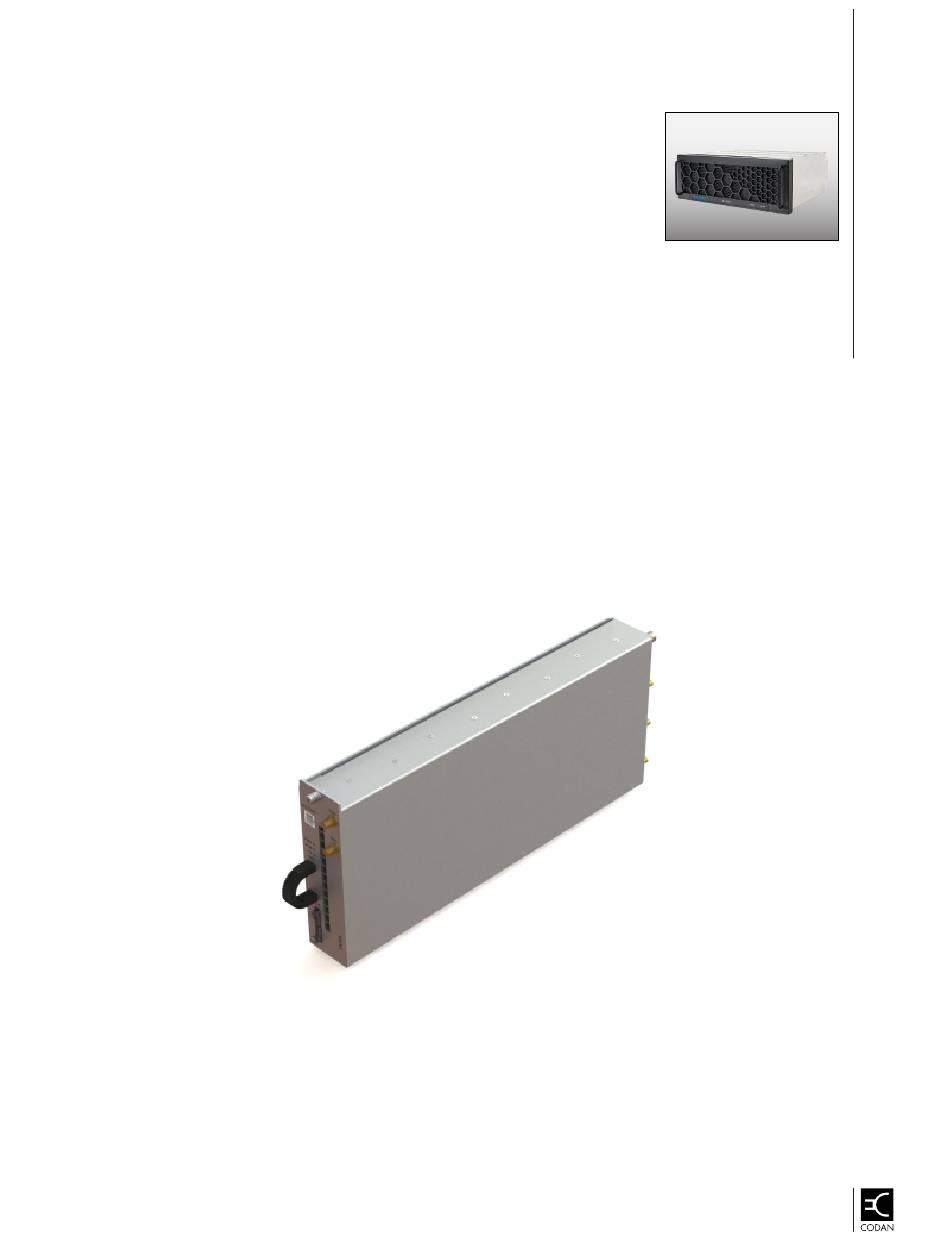

FIGURE 11: Transceiver Module
