Large Capacity, High Speed Centrifuge 1096R – Service manual
# C11DC00304-11

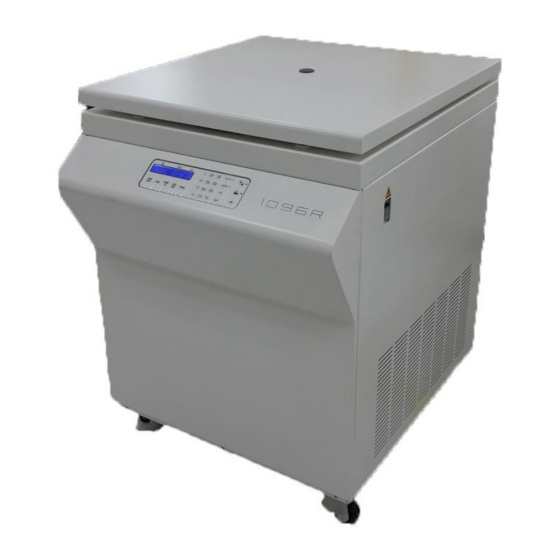

1. Model: Large Capacity, High Speed Centrifuge 1096R
2. Manufacturer: Gyrozen Co., Ltd.
3. Service: BMS Co., Ltd. Technical Service Team, 82-2-3471-8171
Gyrozen Co., Ltd Customer Service Team, 82-70-8620-5350
1
