Summary of Contents for GYROZEN 1524

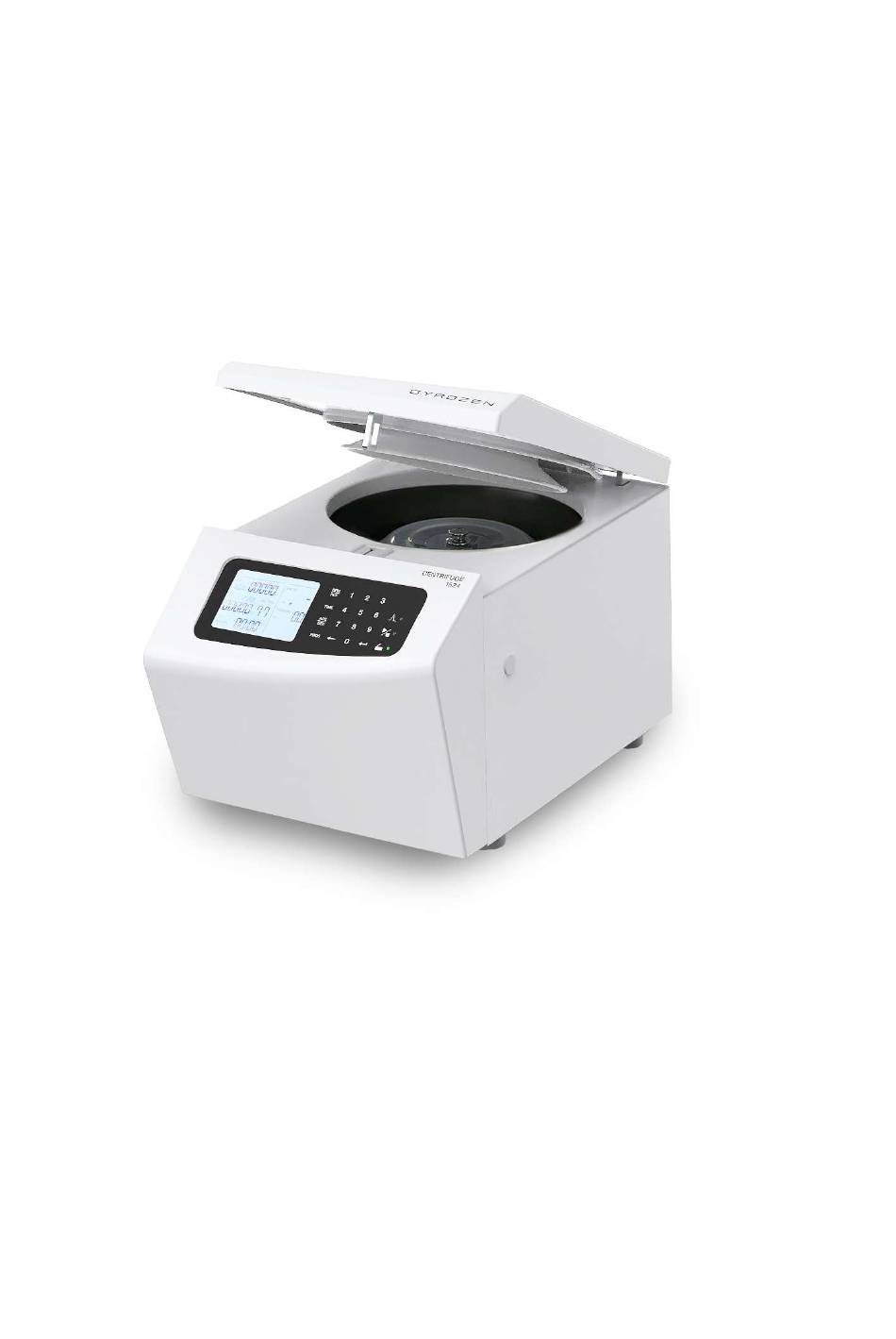

- Page 1 Micro centrifuge 1524 User Manual Manufacturer: GYROZEN Co., Ltd. 5F, 16 Arayuk-ro, Gochon-eup, Gimpo-si, Gyeonggi-do, Republic of KOREA TEL) +82-2-2274-1107, FAX) +82-2-3471-8174 info@gyrozen.com http://www.gyrozen.com UM-1524(E)(Rev.4), 2024.04.16...
-
Page 2: Table Of Contents
4-10. Replacement of Fuse ....................22 Maintenance ........................ 23 Trouble Shooting ......................24 6-1. Checklist ........................24 6-2. Error Code ......................... 25 Equipment Disposal ..................... 27 Rotors & Accessories ....................27 CE Declaration of Conformity ..................28 www.gyrozen.com Microcentrifuge 1524... -
Page 3: Meanings Of Labels & Safety Precautions
4. Before connecting the main power, check the rated voltage. 5. Should not use incompatible Rotors and accessories. ▶ Only use the Rotors manufactured by GYROZEN Co., Ltd., appropriate centrifugal tubes and adaptors to hold sample containers tight in the Rotors. -
Page 4: Lifting And Carrying
: 5 ~ 40℃ -Relative humidity : 30 ~ 85% -Atmospheric Pressure : 500 ~ 1060hPa -Atmospheric Pressure : 500 ~ 1060 hPa -Altitude : Up to 2000m above sea level -Over-Voltage category : II -Pollution Degree www.gyrozen.com Microcentrifuge 1524... -
Page 5: Product Description & Technical Specifications
2. Product Description & Technical Specifications 2-1. Intended Use The device is used mainly in the laboratory to separate the components through centrifugal force. 2-2. Product Description Manual Lid Opening Hole Power Socket Power Switch Display & Control Panel www.gyrozen.com Microcentrifuge 1524... -
Page 6: Technical Specifications
Safety lid lock Lid drop protection 220-230 V~, 50/60 Hz Power supply(V, Hz) (110 V~ optional) Power requirement(VA) Dimension(W x D x H, mm) 240 x 378 x 240 Weight without Rotor (Kg) 13.5 Cat. No. GZ-1524 www.gyrozen.com Microcentrifuge 1524... -
Page 7: Installation
[DOOR]. Door can be opened only when the operation is completely stopped and the power is on again. If you want to open the door at the power failure, please refer to ‘4-9. Emergency Door Open’. www.gyrozen.com Microcentrifuge 1524... -
Page 8: Removing And Installing A Rotor
3-3. Removing and Installing a Rotor When the instrument is dispatched from the Gyrozen facility, the Rotor is fixed in the chamber of the instrument. There is a buffer to fix the Rotor in the chamber. Please remove the buffer before running the instrument. -
Page 9: Positioning Of Sample Tubes
Incorrect loading examples for fixed angle rotor If the density of the whole sample is greater than 1.2 g/ml, the maximum rotational speed should be reduced to avoid rotor failure. Otherwise, unexpected accidents can result from a damaged rotor or centrifuge. www.gyrozen.com Microcentrifuge 1524... -
Page 10: Operation
4-1. Key Functions of the Control Panel RPM/RCF RPM/RCF indicates rotating speed. The maximum RPM/RCF of 1524 is 15,000/21,206. TIME Time can be set at „Minute‟ and „Second‟ with the range up to 99 min 59 sec (00:00: continuous). ACC/DEC The acceleration and deceleration rates can be set from 1 to 9 and from 0 to 9, respectively. - Page 11 The changed parameters are immediately applied to the ongoing operation. Note! Lock Mode All input buttons can be locked in protocol security. When the [PROG] button is kept touched for longer than 2 seconds, all buttons can be locked ( ) or unlocked ( www.gyrozen.com Microcentrifuge 1524...
-
Page 12: Setting The Rpm/Rcf Value
4-2 Setting the RPM/RCF Value The rotation speed is indicated as RPM (Rotation per Minute) / RCF (Relative Centrifugal Force). The speed range of 1524 is 500~15,000 rpm and 24~21,206g. The RPM and RCF values are indicated on the display at the same time. - Page 13 ▶ After the setting value is saved, actual value is „00000‟. ▶ When RCF value is saved, RPM is converted automatically. ▶ If any keys are not touched for 15 seconds, the setting mode is cleared. www.gyrozen.com Microcentrifuge 1524...
-
Page 14: Setting Time
[ENTER] to complete the setting. ▶ The input value is saved by touching [ENTER]. ▶ The setting unit is 1 sec or 1 min. ▶ If any keys are not touched for 15 seconds, the setting mode is cleared. www.gyrozen.com Microcentrifuge 1524... - Page 15 [Start] button is touched, and “At set mode which starts to count at the point when the actual speed reaches the set speed. *Normal (blank in time mode): From t0 to t2 *At set speed: From t1 to t2 www.gyrozen.com Microcentrifuge 1524...
-
Page 16: Setting Acceleration / Deceleration (Acc/Dec)
▶ The acceleration can be set from 1 to 9. (ACC9: the fastest acceleration). ▶ The deceleration can be set from 0 to 9. (DEC0: natural deceleration). ▶ If any keys are not touched for 15 seconds, the setting mode is cleared. www.gyrozen.com Microcentrifuge 1524... -
Page 17: Start / Stop
4-5-2. Stop Action Touch the [ ] button to stop spinning. ▶ If you touch the [Start/Stop] button, the operation stops immediately. ▶ The deceleration sign ( flashes on the display while braking the rotation. www.gyrozen.com Microcentrifuge 1524... -
Page 18: Pulse (Short Spin)
▶ If the actual speed reaches the set value, the centrifuge starts to decelerate even when the [Pulse] button is kept touched. ▶ When the operation is complete and the Rotor stops, the lid is automatically opened. www.gyrozen.com Microcentrifuge 1524... -
Page 19: Save / Call Program
▶ The program number flickers and the “SAVE” sign appears on the display window. 3 Touch the numeric keys for the program number and [ENTER] to complete the setting. ▶ Maximum 100 programs can be saved. (Program number: 00 to 99). www.gyrozen.com Microcentrifuge 1524... - Page 20 Note! Lock Mode All input buttons can be locked in protocol security. When the [PROG] button is kept touched for longer than 2 seconds, all buttons can be locked ( ) or unlocked ( www.gyrozen.com Microcentrifuge 1524...
-
Page 21: Setting End Alarm
[ 3 ] button for 3 seconds to change the sound repeat time. ▶ The range of the repeat time is 0~99 (0: silent, 99: 99 times). ▶ If there is no following input for 10 seconds, the setting mode becomes cleared. www.gyrozen.com Microcentrifuge 1524... -
Page 22: Emergency Door Open
Case with the flat-head screwdriver to take it out of the Fuse Case. If you find the fuse broken or damaged, replace it with the new spare one stored in the fuse case and check if the power can be turned on. www.gyrozen.com Micro centrifuge 1524... -
Page 23: Maintenance
If the Rotor cannot be easily removed from the shaft, do not pull the Rotor by force, and call a service engineer authorized by GYROZEN Co., Ltd. Rotor If any parts become contaminated, clean them with a soft wet cloth and keep the Rotor dry. -
Page 24: Trouble Shooting
Remove any foreign objects or dirt at the lid latch. If the lid can’t be I can’t close the lid. closed for any reason, please contact GYROZEN service team. Please check if the table and the instrument keep level. Please recheck the three-coupling status on the following. -
Page 25: Error Code
Check whether the motor is working correctly. Error 1 If the error message does not disappear, please contact a Service Engineer of your local GYROZEN’s partner. If the lid opens while spinning or has any trouble with the lid sensor, this message may come up. - Page 26 If the installed software has any bugs, this message may come up. Contact a Service Engineer of your local GYROZEN‟s Error 7 System partner and get the firmware upgrade. Wire disconnection or tuning of the instrument must be performed only by a Service Engineer authorized by GYROZEN Co., Ltd.
-
Page 27: Equipment Disposal
11 x 38 (Φ x L, mm) Adapter None Cat No. GAS-m0.2(2) GAS-m0.5(2) Max. radius (mm)* 84.3 Max. RCF (g-force)* 16,854 18,363 21,206 * Depending on the size of cap, there is a possibility of not fit-in. www.gyrozen.com Micro centrifuge 1524... -
Page 28: Ce Declaration Of Conformity
9. CE Declaration of Conformity www.gyrozen.com Micro centrifuge 1524...
