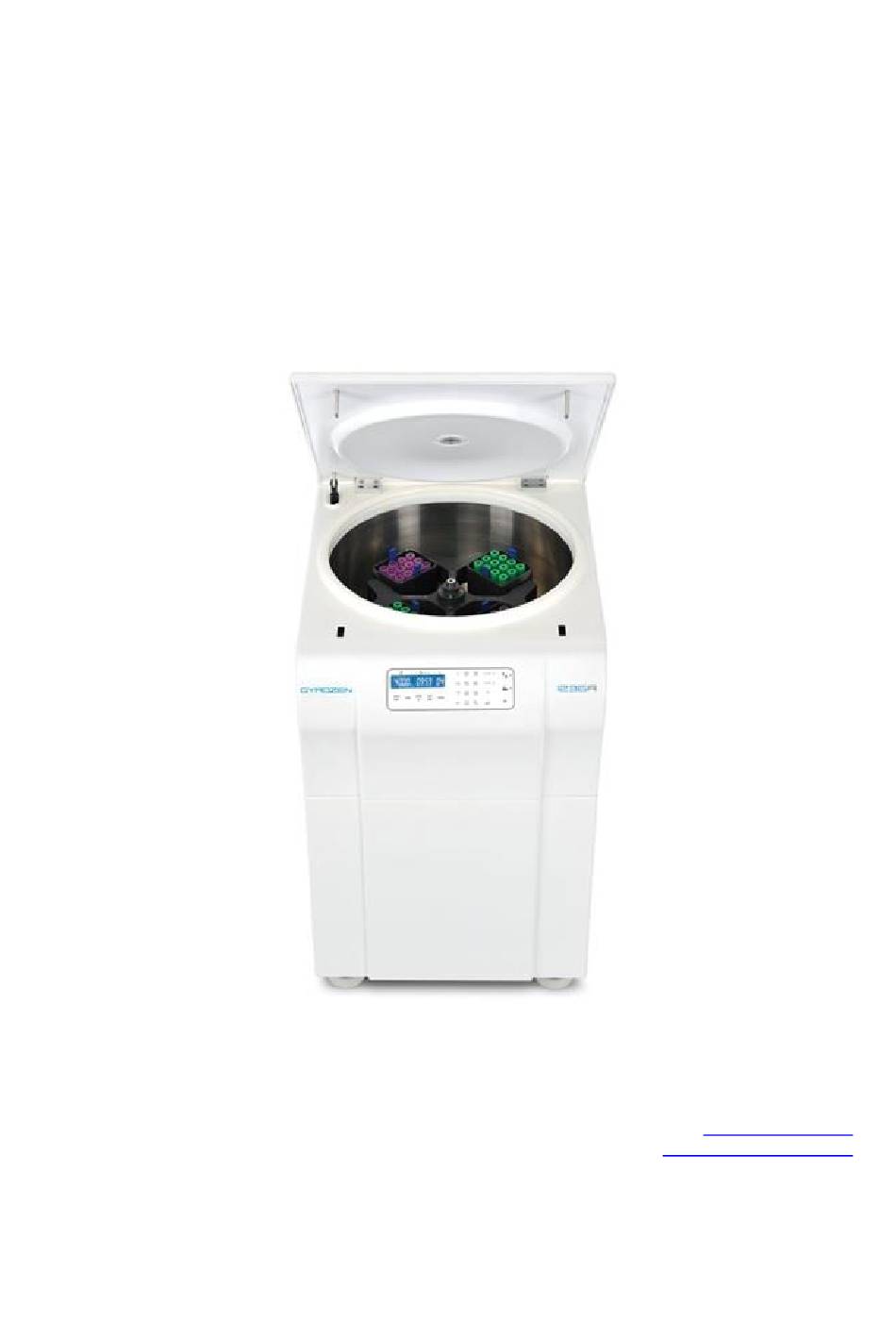

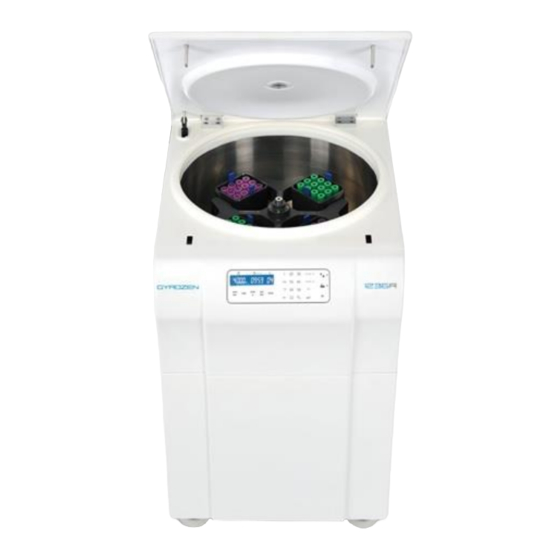

- Page 1 Multi-Purpose, High Speed Centrifuge 1236R User’s Manual Manufacturer: GYROZEN Co., Ltd. 1F & 5F, 16 Arayuk-ro, Gimpo-si, Gyeonggi-do, KOREA Tel: +82-2-2274-1107 Fax: +82-2-3471-8174 info@gyrozen.com http://www.gyrozen.com UM-1236R(E)(Rev.1)
- Page 2 Multi-Purpose High-Speed Centrifuge 1236R...
- Page 3 Multi-Purpose High-Speed Centrifuge 1236R...
-
Page 4: Table Of Contents
6-2. Chamber ............................... 21 6-3. Shaft ................................21 6-4. Rotor ................................22 6-5. Transportation of Instrument ........................22 7. Trouble Shooting ..............................22 7-1. Check List ..............................22 7-2. Error Code..............................23 8. CE ................................... 25 Multi-Purpose High-Speed Centrifuge 1236R... -
Page 5: Meanings Of Symbols & Safety Precautions
ALWAYS position the instrument with enough space on each side of instrument to ensure proper air circulation. ALWAYS install the instrument within a temperature and humidity controlled environment. (Permissible ambient temperature: +5°C ~ +35 °C, Relative humidity: ≤ 85%) Multi-Purpose High-Speed Centrifuge 1236R... - Page 6 Should not use unapproved rotors and accessories. Only use rotors from GYROZEN Co., Ltd. with appropriate centrifugal tubes and suitable adaptors to embrace sample containers tightly enough inside rotors. Before operating the instrument, check if the rotor and the rotor lid are securely fastened.
- Page 7 If the power input is more than +/- 10% of the recommended voltage or fluctuates frequently, it may cause malfunction of the instrument and often result serious damage. Install the instrument at the place without any kind of corrosive gases. Multi-Purpose High-Speed Centrifuge 1236R...
-
Page 8: Product Description & Technical Specifications
5,000 rpm / 5,394 xg Fixed angle 6 x 85 ml, 30 x 1.5/2.0 ml Max. capacity 4 x 250 ml Swing out 48 x 15 ml, 16 MTPs -20 ~ +40 Temp. range(℃) FAST cool button Multi-Purpose High-Speed Centrifuge 1236R... -
Page 9: Unpacking
Untie the plastic banding over the paper box and get rid of box from the instrument main body. Unwrap the vinyl coat surrounding the main body. Place the instrument on a proper place by moving instrument’s wheel. Removal of Safety Padding Multi-Purpose High-Speed Centrifuge 1236R... -
Page 10: Installation
For opening the lid, touch the [LID] button. Should touch the [LID] button When the lid is closed (Lid LED shows off) Close the lid until hearing clank shut. When the lid is opened, the lid LED turns on. Multi-Purpose High-Speed Centrifuge 1236R... -
Page 11: Rotor Coupling And Disassembling
Spin the rotor manually to check if bucket swinging is free enough and ever. If they do not swing freely, apply the Lubricant (grease) to the linking area. 4-3-2. Fixed Angle Rotor Mount a proper rotor into the motor shaft. Multi-Purpose High-Speed Centrifuge 1236R... -
Page 12: Balance Adjustment - Final
If there is a water drop or dirt in the rotor hole or inner adaptor, remove it with soft dry cloth. Tubes should be placed in the rotor with same amount of samples at symmetrical positions. Only use appropriate centrifugal tubes and do not exceed the speed beyond the tube’s max g-force. Multi-Purpose High-Speed Centrifuge 1236R... -
Page 13: Drain Hole
Before the centrifuge starts, check if drain hole on the left side of the instrument is completely tightened. If not, refrigerating efficiency could be getting lowered. Should check whether the sealing-ring is attached on the drain cap. Multi-Purpose High-Speed Centrifuge 1236R... -
Page 14: Operation
Use for quick runs □ Enter Use for completion of data setting □ Start/Stop Use to start and stop operation □ Lid Use to open instrument lid □ Sound Use to set the number of sound and volume Multi-Purpose High-Speed Centrifuge 1236R... -
Page 15: Setting The Rpm/Rcf Value
*[AT SET SPEED] lamp turns on: From t1 to t2 *[AT SET SPEED] lamp turns off: From t0 to t2 Multi-Purpose High-Speed Centrifuge 1236R... -
Page 16: Setting Temperature And Fast Cool
▶ Temperature can be set from -20℃ to 40℃ ▶ Temp setting unit: 1 ℃ Touch [TEMP] button. Default latest temperature value blinks on the display window. Touch the number buttons to change temperature. Touch the [ENTER] button to complete setting. Multi-Purpose High-Speed Centrifuge 1236R... -
Page 17: Acceleration / Deceleration
If you do not touch the number button for 15 seconds, the setting mode is cleared. If wrong number is entered, touch [] button and change the value again. Fix the DEC level by touching [ENTER] button. Multi-Purpose High-Speed Centrifuge 1236R... -
Page 18: Program Saving & Recalling
[ENTER] button. If you do not touch the number button for 15 seconds, the setting mode is cleared. If wrong number is entered, touch [] button and change the value again. Multi-Purpose High-Speed Centrifuge 1236R... -
Page 19: Start/Stop
2. Touch the number buttons to change the value for the pitch of sound. 3. Fix the value by touching [ENTER] button. Sound LEVEL: 0~10 (0: silent) 5-8-2. Setting the Repeat Count of End Alarm 1. Touch [AT SET SPEED] button for more than 2 seconds. Multi-Purpose High-Speed Centrifuge 1236R... -
Page 20: Pulse
Manual opening should be performed only when spinning is completely stopped. Otherwise, harmful damage will be accompanied to not only operators but samples. After opening the lid manually, it is recommended to wait until normal electricity comes back. Multi-Purpose High-Speed Centrifuge 1236R... -
Page 21: Maintenance
Always make special attention to clean the motor shaft to avoid any imbalance problem due to the contaminants. After using the instrument, take out the rotor from the shaft, and clean the shaft with dry soft cloth to keep dry. Multi-Purpose High-Speed Centrifuge 1236R... -
Page 22: Rotor
Rotor Lid with the rotor (Please refer to 4-2. Rotor Coupling and Disassembling) Check balances of samples in the rotor. (Please refer to 4-3. Positioning of Sample Tubes) and load the same weight of samples symmetrically. Multi-Purpose High-Speed Centrifuge 1236R... -
Page 23: Error Code
- This message will be cleared by coupling an appropriate rotor Rotor ID or RPM Error 9 (Please refer to 4-2. Rotor Coupling and Disassembling.) Sensor - If the error code shows continuously, please call GYROZEN Field Service Engineer. Multi-Purpose High-Speed Centrifuge 1236R... - Page 24 Temp. Error 11 hour, this message is appeared. Error - No user action. Please call GYROZEN Field Service Engineer. - If there is a faulty in the temperature sensing of chamber or over Error 12 Temp. Sensor Error heated, this message is appeared.
