GYROZEN 1248 User Manual

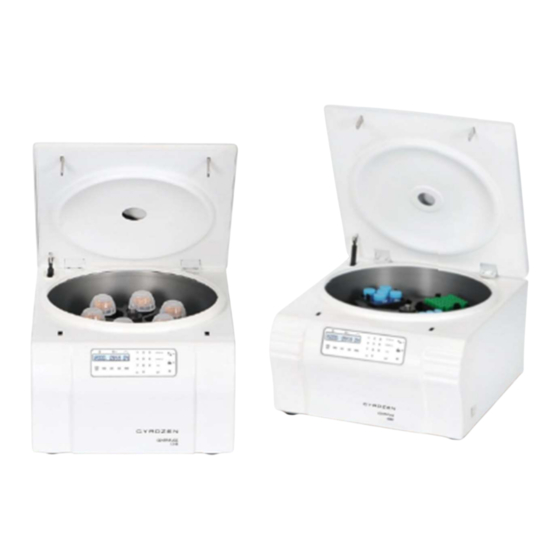

Multi-purpose, high speed centrifuge
Hide thumbs Also See for 1248:
Table of Contents

Advertisement

Quick Links

Download this manual
Multi-Purpose, High Speed Centrifuge
1248/1580
User Manual
Manufacturer: GYROZEN Co., Ltd
.
5F, 15 Arayuk-ro, Gimpo-si, Gyeonggi-do, Republic of KOREA
Tel: +82-2-3452-8966 Fax: +82-2-3471-8174
info@gyrozen.com
http://www.gyrozen.com
European Authorized Representative: OBELISS.A
Boulevard GénéralWahis53, B-1030Brussels, BELGIUM
UM-1248_1580(E)(Rev.8) 2024.04.05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1248 and is the answer not in the manual?

Questions and answers

Related Manuals for GYROZEN 1248

Summary of Contents for GYROZEN 1248

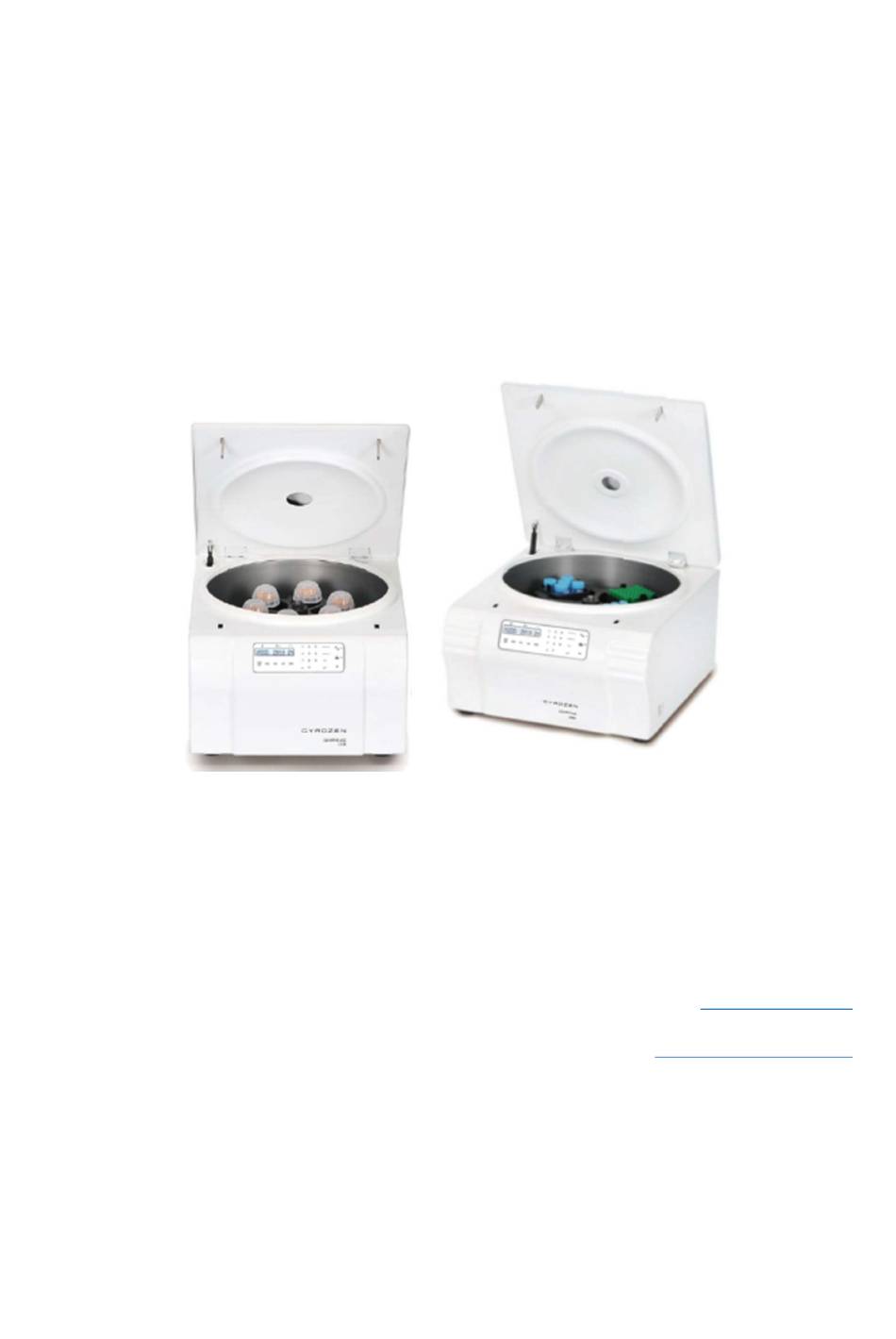

  • Page 1 Multi-Purpose, High Speed Centrifuge 1248/1580 User Manual Manufacturer: GYROZEN Co., Ltd 5F, 15 Arayuk-ro, Gimpo-si, Gyeonggi-do, Republic of KOREA Tel: +82-2-3452-8966 Fax: +82-2-3471-8174 info@gyrozen.com http://www.gyrozen.com European Authorized Representative: OBELISS.A Boulevard GénéralWahis53, B-1030Brussels, BELGIUM UM-1248_1580(E)(Rev.8) 2024.04.05...

  • Page 2: Table Of Contents

    5.2 Setting the RPM / RCF value ..........................18 5.3 Setting the time value .............................. 18 5.3.1. Setting the AT SET SPEED mode ......................... 18 5.3.2. Setting the ‘SEC / MIN’ value ........................19 5.4. Acceleration / Deceleration ..........................19 1 | www.gyrozen.com...
  • Page 3 6.5. Movement of instrument ............................25 7. Trouble shooting ..........................26 7.1. Check List ..................................26 7.2. Error massage ................................27 8. Equipment Disposal ......................... 29 9. Rotor & Accessories ........................30 10. CE Declaration of Conformity ..................... 49 AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 2...

  • Page 4: Safety Warnings And Cautions

    Instruction Mark indicating danger and warning Attention and warning for electric shock Mark indicating Biohazard warning Mark indicating earth grounding Indicate a hole for manual lid opening in case of emergency Attention and waring for rotor coupling 3 | www.gyrozen.com...

  • Page 5: Safety Precautions

    In particular, the guaranteed g value of the sample tube should not be neglected. 14. The rotor should be cleaned and dried after every use for long life and safety. AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 4...

  • Page 6: Lifting And Carrying

    -Indoor use -Ambient Temperature: -10 ∼ 40℃ -Room Temperature: 5 ∼ 35 ℃ -Relative humidity: 10 ∼ 90 % -Relative humidity: 30 ∼ 85 % -Atmospheric pressure: 500 ∼ 1060 hPa -Atmospheric pressure: 500 ∼ 1060 hPa 5 | www.gyrozen.com...

  • Page 7: Product Description

    5. Manual Lid Open Hole 3. Display & Control Panel 2.3 Accessories Rotor Locking Tool (Manual Lid Open 6mm wrench User Manual AC Power Cord Tool) ※ Rotor sold separately (Refer to 8. Rotor and accessories) AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 6...

  • Page 8: Technical Specifications

    Safety lid lock Lid drop protection Motorized Lid open & close Automatic Lid release at completion Adjustment of volume and repetition of alarm sound Power Supply (V/Hz) AC 230 V, 50/60 Hz(110 V optional) Power Requirement (VA) 1,500 7 | www.gyrozen.com...
  • Page 9 Adjustment of volume and repetition of alarm sound Control (CPU) Microprocessor controlled Dimension(W x D x H, mm) 475 x 561 x 330 540 x 650 x 380 Weight without rotor CE Mark Cat. No. GZ-1248 GZ-1580 AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 8...

  • Page 10: Unpacking

    2. Two people should keep the system horizontally to lift up on the flat table. 3. To disassemble the Motor Protecting Devices, use the provided 6mm wrench and unscrew and remove all 3 bolts. It is now ready for installation. ☞Place the instrument on the solid and flat table. 9 | www.gyrozen.com...

  • Page 11: Installation

    [Start] button, the operation starts after the rotor scan process. If the rotor is not installed, the “Error 9” will be appeared. This message will be cleared after rotor installing and running. AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 10...

  • Page 12: Power On/Off And Lid Release

    If necessary, remove any dust, foreign objects or residue from the chamber. Wipe the motor shaft and rotor hub from the bottom side of the rotor with a clean cloth. Inspect the rotor and rotor lid, both must be clean and undamaged. 11 | www.gyrozen.com...

  • Page 13: Swing-Out Rotor

    3. To remove the rotor, hold the rotor well with one hand and rotate the Rotor Locking Tool counterclockwise. 4. Grasp the rotor with both hands. 5. Pull the rotor directly upwards and away from the motor shaft with both hands. Make sure do not tilt the rotor while lifting it. AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 12...

  • Page 14: Fixed Angle Rotor

    Before use, make sure that the rotor is securely fastened to the motor shaft. [Check Rotor Lid installation] If you operate a fixed angle rotor, make sure that the rotor lid is properly locked. If not, it may occur very loud noise and serious damage. 13 | www.gyrozen.com...

  • Page 15: Sample Tube Loading

    ▷ sample should be filled up to the recommended volume by tube manufacturer. if the manufacturer of the tube has not specified the maximum level, fill the tubes so that the centrifuged substance does not run out of the vessel during centrifugation. AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 14...
  • Page 16 ∙ Always load all 4 positions of the swing-bucket rotor with buckets. ∙ If the density of the whole sample is greater than 1.2 g/ml, the maximum rotational speed should be reduced to avoid rotor failure. otherwise, unexpected accidents can result from a damaged rotor or centrifuge. 15 | www.gyrozen.com...
  • Page 17 A full complement of buckets needs to be installed before operating swing out rotor. ->For safety, the “Imbalance Cut Off” function will be occurred, if there is imbalance of loading tubes (Error 8, Imbalance error). Please refer to 7. Trouble Shooting. AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 16...

  • Page 18: Operation

    Use for quick runs □ Enter Use for completion of data setting □ Start/Stop Use to start and stop operation □ Lid Use to open instrument lid □ Sound Use to set the number of sound and volume 17 | www.gyrozen.com...

  • Page 19: Setting The Rpm/Rcf Value

    For exact time control, this instrument can be set with AT SET SPEED mode with counts the run time once the actual run speed value and stops when the deceleration begins. * ALL mode : From t0 to t2 * [AT SET SPEED] mode : From t1 to t2 AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 18...

  • Page 20: Setting The 'Sec / Min' Value

    (Level 9 : The fastest acceleration) ▷ If you do not touch the number button for 15 seconds, the setting mode is cleared. ▷ If wrong number is entered, touch [←] button and change the value again. 19 | www.gyrozen.com...

  • Page 21: Program Saving & Recalling

    [ENTER] button. ▷ If you do not touch the number button for 15 seconds, the setting mode is cleared. ▷ If wrong number is entered, touch [←] button and change the value again. AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 20...

  • Page 22: Start / Stop

    ▶Speed / time / temperature / ACC / DEC setting values can be changed during operation. ▶The changed time input value does not reflect the initial time setting value. 21 | www.gyrozen.com...

  • Page 23: Key Lock Function

    ▷ Sound level : 0 ∼10 (0 : silent) 5.9.2 Setting the Repeat Count of End Alarm 1. Press the [AT SET SPEED] button for more than 2 seconds. ▷ ‘Sound rPt’ appears on the display window. AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 22...

  • Page 24: Pulse

    Manual opening should be performed only when spinning is completely stopped. Otherwise, harmful damage will be accompanied to not only operators but samples. After opening the lid manually, it is recommended to wait until normal electricity comes back. 23 | www.gyrozen.com...

  • Page 25: Maintenance

    Corrosion will occur if the acid or alkaline solution react to rotor. If the balance of the rotor weight is not fit by the corrosion, it can cause severe vibration and noise during high-speed rotation and result in damage to the drive shaft. AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 24...

  • Page 26: Movement Of Instrument

    2. Do not mount a rotor in any cases of movement. Fill inside the chamber with proper materials to keep the motor shaft on place and not to be influenced by physical pressure. 25 | www.gyrozen.com...

  • Page 27: Trouble Shooting

    1. The balanced way of installing of the rotor into the motor shaft 2. The completeness of fixing of the Rotor Check the balances of samples in the rotor. (Please refer to 4.3 ) If the sample ba AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 26...

  • Page 28: Error Massage

    - Shut off the power supply, and then, turn on the power switch again to check the instrument. Error 7 System error - Turn off the power and turn it on to check the operation 27 | www.gyrozen.com...
  • Page 29 - Turn off the centrifuge and insert T-wrench to the Manual open hole. Turn the T-wrench counterclockwise. (Please refer to 5.12 Manual lid lock release) - If the error code persist, please contact the technical support team. AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 28...

  • Page 30: Equipment Disposal

    This equipment is marked with the crossed out wheeled bin symbol to indicate that this equipment must not be disposed of with unsorted waste. The waste disposal guidelines of the individual EC countries might vary. If necessary, contact your supplier. 29 | www.gyrozen.com...

  • Page 31: Rotors And Accessories

    Conical Round type Max. height tube fit (mm) Max. radius (mm)* Max. RCF (g-force)* 2,894 2,894 2,894 2,894 2,898 2,898 2,854 * Depending on the size of cap, there is a possibility of not fit-in. AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 30...
  • Page 32 500 mL Round Bucket, Hole dimension (Ø x L,mm) : 70 x 135 GLB-500-r750 Max. height for tube fit (mm) : 172 Hole bottom type : Flat Tube Tube capacity (mL) Tube Dimension (Φ x L,mm) 69.5 x 170.2 31 | www.gyrozen.com...
  • Page 33 Max. height for tube fit (mm) : 140 (w / cap), 165 (w / o cap) GLBB-b750-750 (With a cap) Hole bottom type : Flat Supplied with a cap and O-ring, No cap version is available AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 32...
  • Page 34 75.5 x 98.7 (Φ x L, mm) Rack hole bottom Conical Flat Flat Conical Conical Flat type Max. height tube fit (mm) Max. radius (mm)* 190.7 201.5 Max. RCF (g-force)* 3,667 3,411 3,595 3,667 3,667 3,604 3,667 33 | www.gyrozen.com...
  • Page 35 Max.load per bucket(Plate and contents) : 330 g Tube Tube capacity (mL) Tube Dimension (Φ x L, mm) 86 x 128 x 15 86 x 128 x 60 Bucket capacity(ea / 4) 2 / 8 1 / 4 AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 34...
  • Page 36 Max. height tube fit(mm) Max. radius (mm)* 173.2 173.2 173.2 173.2 175.2 173.2 Max. RCF(g-force)* 3,041 3,095 3,095 3,095 3,095 3,134 3,095 * Depending on the size of cap, there is a possibility of not fit-in. 35 | www.gyrozen.com...
  • Page 37 Max.load per bucket(Plate and contents) : 330 g Tube Tube capacity (mL) Tube Dimension (Φ x L, mm) 86 x 128 x 15 86 x 128 x 60 Bucket capacity(ea / 4) 2 / 8 1 / 4 AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 36...
  • Page 38 Round Conical Round Conical Round Conical Bottom type Max. height tube fit(mm) Max. radius (mm)* Max. RCF(g-force)* 5,311 5,394 5,311 5,311 5,394 5,394 * Depending on the size of cap, there is a possibility of not fit-in. 37 | www.gyrozen.com...
  • Page 39 Bottom type Max. height Tube fit(mm) Max. radius (mm)* Max. RCF 5,394 5,255 5,255 5,394 5,255 5,255 5,255 5,394 5,394 (g-force)* * Depending on the size of cap, there is a possibility of not fit-in. AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 38...
  • Page 40 Max. height tube fit(mm) Max. radius (mm)* 168.6 110.1 168.6 168.6 170.6 173.6 173.6 Max. RCF(g-force)* 3,016 1,969 3,016 3,016 3,052 3,105 3,105 * Depending on the size of cap, there is a possibility of not fit-in. 39 | www.gyrozen.com...
  • Page 41 27.1 x 14.1 26 x 83.8 27.9 x 11 Adaptor hole bottom type Conical Conical Round Round Max. height tube fit(mm) 114.5 114.5 Max. radius (mm)* 162.4 162.6 173.6 Max. RCF (g-force)* 3,059 2,451 2,908 2,909 3,105 AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 40...
  • Page 42 16 x 7.8 (Φ x L,mm) Adaptor hole bottom type Conical Round Max. radius (mm)* 120.5 156.5 173.6 Max. RCF (g-force)* 2,156 2,799 3,105 * Depending on the size of cap, there is a possibility of not fit-in. 41 | www.gyrozen.com...
  • Page 43 Round Open Conical Round bottom type Max. radius (mm)* 159.5 Max. RCF (g-force)* 2,576 3,059 2,343 2,853 3,059 3,059 3,059 3,059 * Depending on the size of cap, there is a possibility of not fit-in. AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 42...
  • Page 44 GAS- Cat No. GAS-c25(85) 15(85) c15(85) 30(85) 50(85) c50(85) Max. radius (mm)* 102.5 Max. RCF (g-force)* 11,515 11,292 9,727 11,460 11,627 11,404 12,298 * Depending on the size of cap, there is a possibility of not fit-in. 43 | www.gyrozen.com...
  • Page 45 Adapter None Cat No. GAS-15(50) GAS-c15(50) GAS-c25(50) GAS-30(50) Max. radius (mm)* 93.5 96.4 Max. RCF (g-force)* 15,053 15,455 13,040 15,520 16,582 * Depending on the size of cap, there is a possibility of not fit-in. AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 44...
  • Page 46 Adapter None Cat No. GAS-c15(c50) GAS-c25(c50) GAS-30(c50) GAS-50(c50) Max. radius (mm)* 105.2 94.1 106.4 107.3 Max. RCF (g-force)* 11,761 10,520 11,896 11,996 12,298 * Depending on the size of cap, there is a possibility of not fit-in. 45 | www.gyrozen.com...
  • Page 47 17 x 120 (Φ x L, mm) Adapter None Cat No. GAS-c5(c15) Max. radius (mm)* 75.8 Max. RCF (g-force)* 12,203 16,582 * Depending on the size of cap, there is a possibility of not fit-in. AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 46...
  • Page 48 - Capacity : 30 x 1.5/2.0 mL - Max. RPM / RCF (1580) : 15,000 / 24,249 - Max. RPM / RCF (1248) : 12,000 / 15,520 - Hole angle from axis during rotation : ∠ 45° - Hole dimension (Ø x L, mm) : 11.1 x 39 - Hole bottom type : Round - Max.
  • Page 49 (Φ x L,mm) Max. radius (mm)* 155.2 167.2 139.9 161.1 175.2 175.2 175.2 Max. RCF (g-force)* 2,776 2,990 2,503 2,882 3,134 3,134 3,134 * Depending on the size of cap, there is a possibility of not fit-in. AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 48...

  • Page 50: Ce Declaration Of Conformity

    User Manual 10. CE declaration of conformity 49 | www.gyrozen.com...
  • Page 51 High Speed Centrifuges,1248/1580 AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 50...
