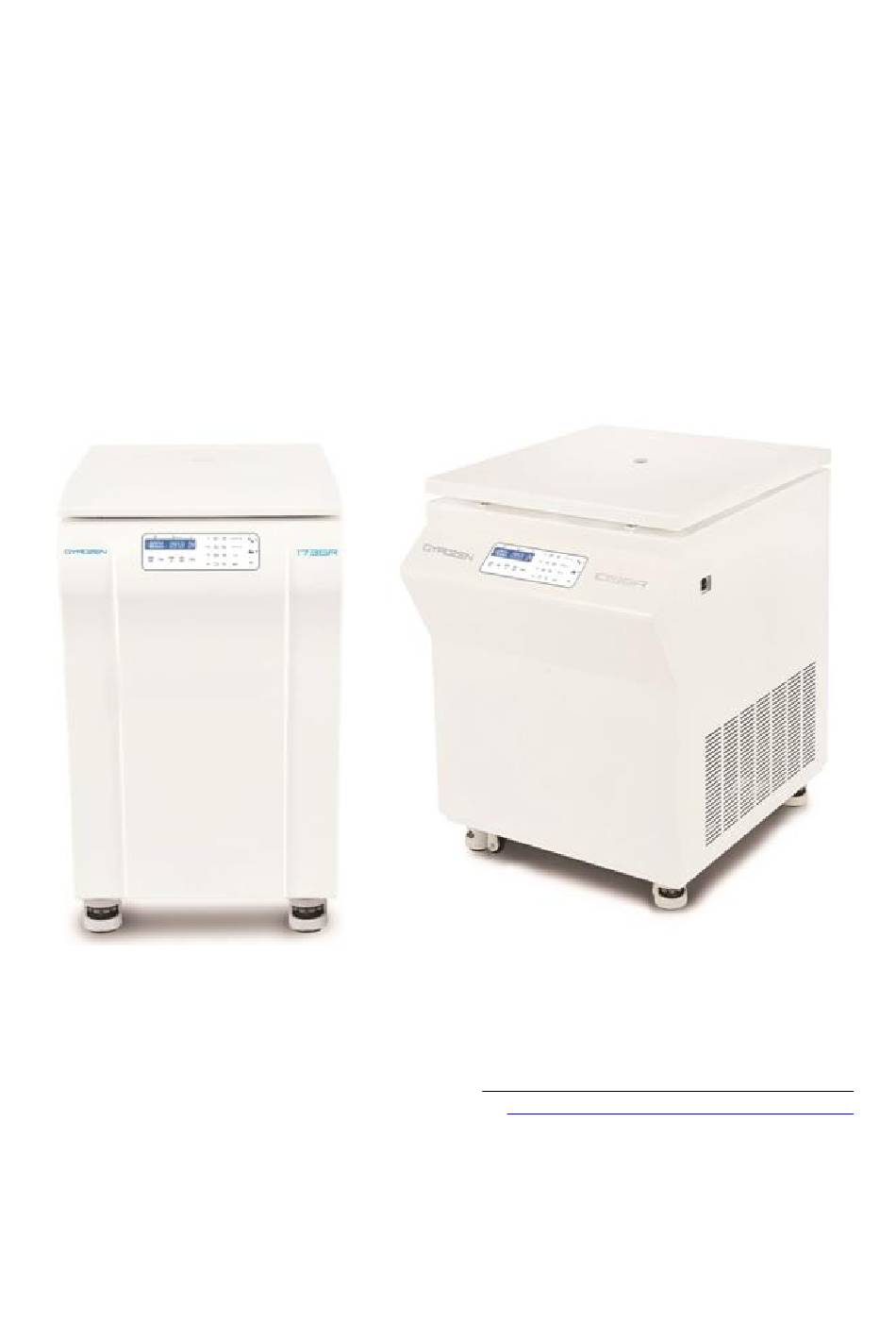

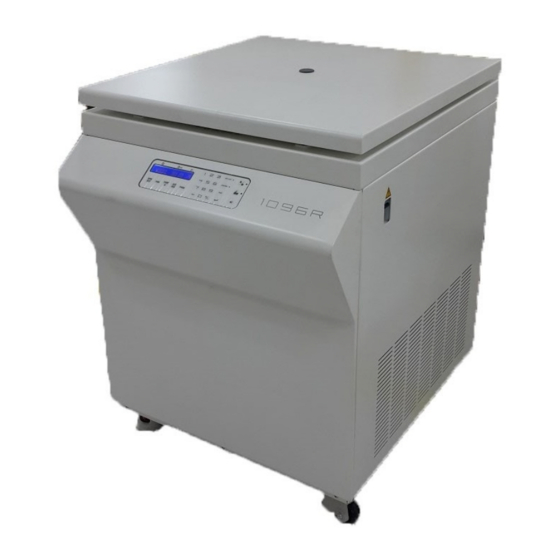

- Page 1 Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R User’s Manual Manufacturer: GYROZEN Co., Ltd. 1F & 5F, 16 Arayuk-ro, Gimpo-si, Gyeonggi-do, KOREA Tel) +82-2-2274-1107, FAX) +82-2-3471-8174 info@gyrozen.com http://www.gyrozen.com UM-1736R/1096R(E)(Rev.1)
- Page 2 Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R...
- Page 3 Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R...
-
Page 4: Table Of Contents
5-9. Repeat Account and Sound Pitch of End Alarm ............. 19 5-10. Pulse ............................. 20 5-11. Emergency Lid Open ......................20 6. Maintenance ..........................20 6-1. Outer part of Instrument ...................... 20 6-2. Chamber ..........................21 6-3. Shaft ............................21 Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R... - Page 5 6-4. Rotor............................21 6-5. Transportation of Instrument ..................... 21 7. Trouble Shooting .......................... 21 7-1. Check List ..........................21 7-2. Error Code ..........................22 8. CE Declaration ..........................24 Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R...
-
Page 6: Meanings Of Symbols & Safety Precautions
ALWAYS install the instrument within a temperature and humidity controlled environment. (Permissible ambient temperature: +5°C ~ +35 °C, Relative humidity: ≤ 85%) Before connecting the power, check the rated voltage. Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R... - Page 7 Should not use unapproved rotors and accessories. Only use rotors from GYROZEN Co., Ltd. with appropriate centrifugal tubes and suitable adaptors to embrace sample containers tightly enough inside rotors. Before operating the instrument, check if the rotor and the rotor lid are securely fastened.
-
Page 8: Product Description & Technical Specifications
5,000 rpm / 5,324 xg Fixed angle 6 x 500 ml Max. capacity Swing out 4 x 250 ml 4 x 1,400 ml -20 ~ +40 -10 ~ +40 Temp. range (℃) Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R... -
Page 9: Preinstallation Requirements
3-1. Environmental Requirement Install the instrument on the flat and rigid floor. If you place the centrifuge on the slopping area, the motor shaft might be distorted by the rotor weight and centrifugal force. Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R... -
Page 10: Electricity Requirement
4-4. Balance Adjustment-Final ) For fixing a wheel: rotate the red gear counterclockwise with a spanner For loosing a wheel: rotate the red gear clockwise with a spanner Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R... -
Page 11: Power On/Off And Lid Release
„5-11. Emergency Lid Open‟. 4-3. Rotor Coupling and Disassembling Action Before coupling a rotor, clean the motor shaft and rotor with soft dry towel. Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R... - Page 12 When you run a fixed angle rotor, make sure that the rotor lid is tightly closed. If you don‟t close the rotor lid completely, it will be crushed. ☞ For operational safety, this instrument has the automatic rotor recognition function. Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R...
-
Page 13: Balance Adjustment - Final
Otherwise, it results noise and vibration, which eventually damage the instrument ☞ For safety, the „Imbalance Cut Off‟ function will be occurred, if there is imbalance of loading tubes (Error 8, Imbalance error). Please refer to 7. Trouble Shooting. Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R... -
Page 14: Operation
Use to set time, available range up to 9 hour 59 min (00:00: continuous) □ Temp Use to set temperature (-20°C ~ 40°C for 1736R/ -10°C ~ 40°C for 1096R) Use to reach rapid refrigeration up to the setting temperature. (touch for more than 2 seconds for „Fast Cool‟.) -
Page 15: Setting The Time Value
Touch the [TIME] button once. „MIN‟ value on LED is flickering. Touch the number buttons to change the minute value. If you do not touch the number button for 15 Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R... -
Page 16: Setting Temperature And Fast Cool
5-4-1. Setting Temperature ▶ 1736R: Temperature can be set from -20℃ to 40℃ ▶ 1096R: Temperature can be set from -10℃ to 40℃ Touch the [TEMP] button. Default or latest temperature value blinks on the display window. Touch the number buttons to change temperature. -
Page 17: Acceleration / Deceleration
If you do not touch the number button for 15 seconds, the setting mode is cleared. If wrong number is entered, touch [] button and change the value again. Fix the DEC level by touching [Enter] button. 5-6. Program Saving & Recalling Action 5-6-1. Program Saving Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R... -
Page 18: Start/Stop
During running, a „Start LED‟ is turned on. The instrument is running only when the lid is closed. When you touch the [Enter] button during operation, display window shows the saved setting parameters 5-7-2. Stop Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R... -
Page 19: Setting The Key Lock Mode
2. Touch the number buttons to change the value for the repeat count. 3. Fix the value by touching [ENTER] button. The number of finishing sound: 0~99 (0: silent, 99: 99 times) Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R... -
Page 20: Pulse
Be careful not to make scratches on the surface of the instrument. The scratches can cause corrosion on the surface of the instrument. If any rust appears, clean it with neutral detergents and keep dry. Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R... -
Page 21: Chamber
Remove the dirt at the lid latch and then close the lid completely again. Can‟t close the lid If the lid seems not being closed by mechanical reason, please contact our service team. Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R... -
Page 22: Error Code
- Use AVR to provide proper power. - If the instrument is spun with over speed, there will be some Error 6 Over Speed problems in the overload of motor and the output of motor. Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R... - Page 23 Rotor ID or RPM Error 9 (Please refer to 4-3. Rotor Coupling and Disassembling.) Sensor - If the error code shows continuously, please call GYROZEN Field Service Engineer. - If the instrument is not reached to setting temperature within an Chamber Temp.
-
Page 24: Ce Declaration
8. CE Declaration Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R... - Page 25 Multi-purpose/ Large Capacity, High Speed Centrifuge 1736R/ 1096R...
