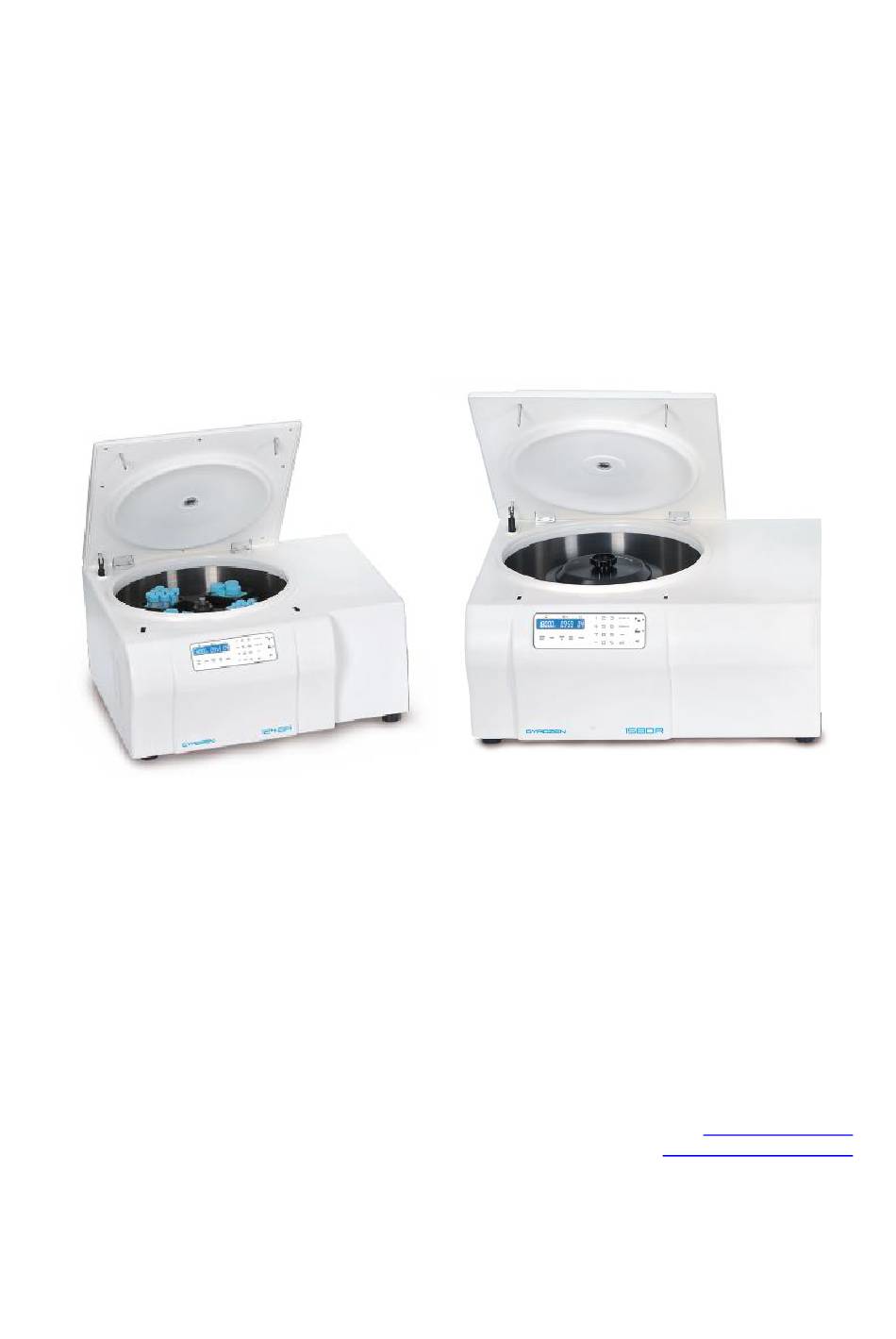

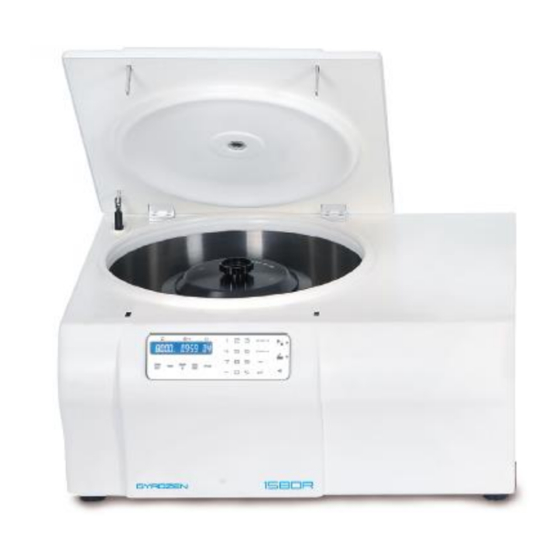

- Page 1 Multi-Purpose, High Speed Centrifuge 1248R/1580R User’s Manual Manufacturer: GYROZEN Co., Ltd. 30-12 Gyeryong-ro 141-gil, Yuseoung-gu, Daejeon 305-301, Korea Tel: +82-42-719-8200 Fax: +82-42-826-9848 info@gyrozen.com http://www.gyrozen.com DOC. No.: C04DC00204-1804...
- Page 2 Multi-Purpose High-Speed Centrifuge 1248R and 1580R...
- Page 3 Multi-Purpose High-Speed Centrifuge 1248R and 1580R...
-
Page 4: Table Of Contents
6-2. Chamber ............................20 6-3. Shaft .............................. 20 6-4. Rotor ............................. 21 6-5. Transportation of Instrument ....................21 7. Trouble Shooting ..........................21 7-1. Check List ............................ 21 7-2. Error Code ........................... 22 8. CE ................................24 Multi-Purpose High-Speed Centrifuge 1248R and 1580R... -
Page 5: Meanings Of Symbols & Safety Precautions
ALWAYS position the instrument with enough space on each side of instrument to ensure proper air circulation. ALWAYS install the instrument within a temperature and humidity controlled environment. (Permissible ambient temperature: +5°C ~ +35 °C, Relative humidity: ≤ 85%) Multi-Purpose High-Speed Centrifuge 1248R and 1580R... - Page 6 Should not use unapproved rotors and accessories. Only use rotors from GYROZEN Co., Ltd. with appropriate centrifugal tubes and suitable adaptors to embrace sample containers tightly enough inside rotors. Before operating the instrument, check if the rotor and the rotor lid are securely fastened.
- Page 7 If the power input is more than +/- 10% of the recommended voltage or fluctuates frequently, it may cause malfunction of the instrument and often result serious damage. Install the instrument at the place without any kind of corrosive gases. Multi-Purpose High-Speed Centrifuge 1248R and 1580R...
-
Page 8: Product Description & Technical Specifications
-20 ~ +40 FAST cool button Pulse, timed < 10 hr Time control or continuous Time counting modes Selectable, at set speed or from starting RPM/RCF conversion ≤60 Noise level (dB) ACC/DEC 9/10 steps Program memory Multi-Purpose High-Speed Centrifuge 1248R and 1580R... -
Page 9: Unpacking
To disassemble the Motor Protecting Devices, use the additionally supplied 6mm wrench ( and unscrew and remove all 3 bolts. It is now ready for installation. ☞ Place the instrument on the solid and flat table. Multi-Purpose High-Speed Centrifuge 1248R and 1580R... -
Page 10: Installation
If you want to open the lid at the power failure, please refer to „5-9. Emergency Lid-Lock Release‟. Multi-Purpose High-Speed Centrifuge 1248R and 1580R... -
Page 11: Rotor Coupling And Disassembling
To disassemble the rotor: Rotate Rotor Locking Tool counterclockwise. 3. To close of the rotor lid, rotate the rotor lid nut clockwise. For opening lid: rotate the rotor lid nut counterclockwise. Multi-Purpose High-Speed Centrifuge 1248R and 1580R... -
Page 12: Positioning Of Sample Tubes
Imbalance error). Please refer to 7. Trouble Shooting. 4-4. Drain Hole Action Before the centrifuge starts, check if drain hole on the left side of the instrument is completely tightened. If not, refrigerating efficiency could be getting lowered. Multi-Purpose High-Speed Centrifuge 1248R and 1580R... -
Page 13: Operation
□ Enter Use for completion of data setting □ Start/Stop Use to start and stop operation □ Lid Use to open instrument lid □ Sound Use to set the number of sound and volume Multi-Purpose High-Speed Centrifuge 1248R and 1580R... -
Page 14: Setting The Rpm/Rcf Value
*[AT SET SPEED] lamp turns on: From t1 to t2 *[AT SET SPEED] lamp turns off: From t0 to t2 Multi-Purpose High-Speed Centrifuge 1248R and 1580R... -
Page 15: Setting Temperature And Fast Cool
▶ Temp setting unit: 1 ℃ Touch the [TEMP] button. Default or latest temperature value blinks on the display window. Touch the number buttons to change temperature. Touch the [ENTER] button to complete setting. Multi-Purpose High-Speed Centrifuge 1248R and 1580R... -
Page 16: Acceleration / Deceleration
(Level 0: Natural deceleration / Level 9: The fastest deceleration) If you do not touch the number button for 15 seconds, the setting mode is cleared. If wrong number is entered, touch [] button and change the value again. Multi-Purpose High-Speed Centrifuge 1248R and 1580R... -
Page 17: Program Saving & Recalling
[ENTER] button. If you do not touch the number button for 15 seconds, the setting mode is cleared. If wrong number is entered, touch [] button and change the value again. Multi-Purpose High-Speed Centrifuge 1248R and 1580R... -
Page 18: Start/Stop
2. Touch the number buttons to change the value for the pitch of sound. 3. Fix the value by touching [ENTER] button. Sound LEVEL: 0~10 (0: silent) 5-8-2. Setting the Repeat Count of End Alarm 1. Touch [AT SET SPEED] button for more than 2 seconds. Multi-Purpose High-Speed Centrifuge 1248R and 1580R... -
Page 19: Pulse
Manual opening should be performed only when spinning is completely stopped. Otherwise, harmful damage will be accompanied to not only operators but samples. After opening the lid manually, it is recommended to wait until normal electricity comes back. Multi-Purpose High-Speed Centrifuge 1248R and 1580R... -
Page 20: Maintenance
Always make special attention to clean the motor shaft to avoid any imbalance problem due to the contaminants. After using the instrument, take out the rotor from the shaft, and clean the shaft with dry soft cloth to keep dry. Multi-Purpose High-Speed Centrifuge 1248R and 1580R... -
Page 21: Rotor
Rotor Lid with the rotor (Please refer to 4-2. Rotor Coupling and Disassembling) Check balances of samples in the rotor. (Please refer to 4-3. Positioning of Sample Tubes) and load the same weight of samples symmetrically. Multi-Purpose High-Speed Centrifuge 1248R and 1580R... -
Page 22: Error Code
- This message will be cleared by coupling an appropriate rotor Rotor ID or RPM Error 9 (Please refer to 4-2. Rotor Coupling and Disassembling.) Sensor - If the error code shows continuously, please call GYROZEN Field Service Engineer. Multi-Purpose High-Speed Centrifuge 1248R and 1580R... - Page 23 Temp. Error 11 hour, this message is appeared. Error - No user action. Please call GYROZEN Field Service Engineer. - If there is a faulty in the temperature sensing of chamber or over Error 12 Temp. Sensor Error heated, this message is appeared.
