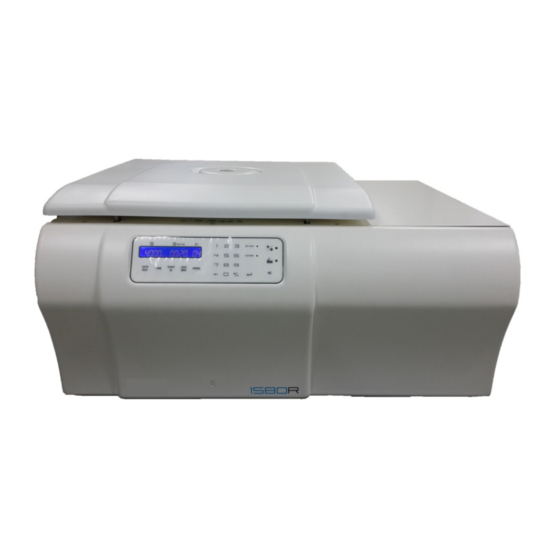

Refrigerated, multi-purpose, high speed centrifuge
Hide thumbs Also See for 1580R:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
1. Model: Refrigerated, Multi-purpose, High speed Centrifuge, 1580R
2. Manufacturer: Gyrozen Co., Ltd.
3. Service: BMS Co., Ltd. Technical Service Team, 82- 2-3471-8171
Gyrozen Co., Ltd Customer Service Team, 82-70-8620-5350
DOC. NO.:C04DC00204-15
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1580R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GYROZEN 1580R

Summary of Contents for GYROZEN 1580R

  • Page 1 Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 1. Model: Refrigerated, Multi-purpose, High speed Centrifuge, 1580R 2. Manufacturer: Gyrozen Co., Ltd. 3. Service: BMS Co., Ltd. Technical Service Team, 82- 2-3471-8171 Gyrozen Co., Ltd Customer Service Team, 82-70-8620-5350 DOC. NO.:C04DC00204-15...

  • Page 2: Table Of Contents

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual Table of contents Page # 1. Operating Instruction ..............................4 1.1 About this manual .................................4 1.2 Safety label and safety Precaution.........................4 1.2.1 Safety label ..............................4 1.2.2 Safety precautions ............................5 2. Installation ....................................6 Unpacking ................................6...
  • Page 3 Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 4. Disassembly ..................................16 4.1 Front panel, Main controller board and I/O board ................16 4.2 Door assembly ............................... 17 4.3 Motor cover and motor packing ......................... 17 4.4 Motor assembly ..............................

  • Page 4: Operating Instruction

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 1. Operating instructions About this manual This service manual should be used by specialized engineers authorized by Gyrozen Co.,  Ltd. Any repairing work operated by non-authorized personnel cannot be protected and ...

  • Page 5: Safety Precautions

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 1.2.2 Safety precautions Make sure to Supply proper voltage power according to device’s power requirement. • Let all repairing works done by authorized or qualified personnel. • Use rotors or accessories which are approved by Gyrozen.

  • Page 6: Installation

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 2. Installation The 1580R is a rotor auto-recognized model. But an instrument is delivered without a rotor, so when you turn on the machine, the system tries to recognize a rotor automatically, and ‘Error 9’ is appeared because of absence of a rotor.

  • Page 7: Location

    4) Install the device at the place without any kinds of corrosive gases. 2.3 Supply the Power 1) The 1580R model uses 110V or 220V. Check proper voltage of your instrument and connect to adequate power outlet. 2) If the power input is more than +/- 10% of the recommended voltage or fluctuates frequently, it may affect some functions of the instrument.

  • Page 8: Device Information

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual Device Information 3.1 Special qualities  High safety and low noise  Tube capacity from 0.2㎖ to 15㎖  High speed refrigerating model controlled by 16bit microprocessor  Temperature controlled with preset target value ...

  • Page 9: Outer Description

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual Outer Description Main Body Rotor, GRS-G-r750-4 Rotor, GRF-G-15-24 GRF-G-85-6 Rotor, GRF-G-m2.0-30 Rotor Coupling Tool & Special Tool AC Cord Emergency Door Open Tool 1) Door 2) Chamber 3) Key Pad 4) Door Striker 5) Ventilating Hole &...

  • Page 10: Operating Function Of Control Panel

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 9) Shock absorber 3.4 Operating Function of Control Panel <Ver 1> 1. Display LCD : shows the data of each setting(RPM, RCF, Time, Temp, Acc/Dec, Program) 2. Numeric keypad : used to change(increase/decrease) the input data 3.

  • Page 11: Ver 2

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual <Ver 2> 13/14 1. Display LCD : shows the data of each setting(RPM, RCF, Time, Temp, Acc/Dec, Program) 2. TEMP : used to set test temperature 3. Numeric keypad : used to change(increase/decrease) the input data 4.

  • Page 12: Operating System

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 3.5 Operating System 1) DSPIC 30F4011, MICOM; It controls all devices. 2) SMPS; distributes inlet power to each part as appropriate form. 3) Inverter; transforms the single phase power to the 3 phase for running the AC induction motor.

  • Page 13: Ver 2

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 3.6 Main Controller Board <Ver 1> <Ver 2__Smart>...
  • Page 14 Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 3.7 Display Controller Board <Ver 1> Main ~ Display connection cable Firmware update teminal Adjustment of LCD Contrast LCD brightness can be adjusted. Rotate the circled part at the below picture with clockwise direction using screw driver(+), LCD is getting brighter gradually.

  • Page 15: I/O Board

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual <Ver 2> Firmware Upgrade Main~Display Connection I/O Board Chamber Temp. Sensor Motor Temp. Sensor Door Open Sensor Comp. Temp Sensor Door Close Sensor Door Striker Sensor Door DC Motor Power Hall Sensor...

  • Page 16: Front Panel, Main Controller Board And I/O Board

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual Disassembling 4.1 Front panel, Main controller board and I/O board <Ver 1> <Ver 1> One Door Photo Sensor I/O Board Main Board <Ver 2> <Ver 2> Two Door Photo Sensors...

  • Page 17: Door Assembly

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 1) Open the door and remove 9ea of screws as arrowed part on the right picture. 2) Remove display cable at the front panel. 3) Remove cables connected at the Main controller board and the I/O board.

  • Page 18: Motor Assembly

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 4.4 Motor assembly Pic1 Pic2 1) Remove the motor cable, temp sensor cable, rpm sensor cable and ground cable. 2) Remove 3ea of nuts at motor ass’y and detach the ass’y with upward direction. [Pic1&2] 4.5 Anti-vibration rubber...

  • Page 19: Imbalance Sensor Assembly

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 4.7 Imbalance sensor assembly [Pic2] <Ver 1_Pcb_A2> [Pic3] <Ver 2_Pcb_A3> [Pic1] 1) Remove the 2ea of screws at the buttom of the instrument [Pic1]. 2) Detach the imbalance sensor assy. 3) Remove the 4 ea of screws [Pic2 & 3].

  • Page 20: Service Mode And Adjustment

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual Service Mode and adjustment <Ver 1> 5.1 Transition into service mode On the Control panel 1) Power ON 2) Push the ( ) key for 5 seconds until beep sound 3) When beep sounds push the ( ) key (beginning of Service mode).
  • Page 21 Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual <Ver 2> 5.1 Transition into service mode On the Control panel 1) Power ON 2) Push the ( ) key for 5 seconds until beep sound 3) When beep sounds push the ( ) key (beginning of Service mode).
  • Page 22 Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual Compressor Temperature Main board Temperature Imbalance(Tolerance value / Physical value) Model ID Rotor ID Frequency value...

  • Page 23: Procedure For Imbalance Adjustment

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 5.3 Procedure for imbalance adjustment <Ver 1> 1) Press( ) key ,as the picture below. Displayed Value(ex.187) means HALL i.e. the physical distance status of the hall  sensor. The normal value of imbalance sensor lies between 170 and 200.
  • Page 24 Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual <Ver 2> 1) Press ( ) key ,as the picture below. Displayed Value(ex.86) means HALL i.e. the physical distance status of the hall  sensor. The normal value of imbalance sensor lies between 70 and 100.

  • Page 25: Error Code And Troubleshooting

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual Error code and Troubleshooting 6.1 Error code In the event of a malfunction, an error message with code number appears indicating the possible causes and the device is forced to stop. Turn off the power immediately, identify the causes and follow the corrective actions as recommended below.
  • Page 26 Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual • Device is not positioned on a flat, level and vibration free surface • Relocate instrument to a flat, level, and vibration free Corrective Action surface. • Rotor is loaded with samples not evenly weighted symmetrically •...
  • Page 27 Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual • PhotoSensor of Door-in-2 is defective or damaged Door PhotoSensor error (Door-in 2) Corrective Action • Replace Motor Open Photo Sensor with normal one • Motor Close & Open Photo Sensor are sensed at the same time Door PhotoSensor error •...

  • Page 28: Troubleshooting

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 6.2 Troubleshooting If other malfunctions without error code indication occur, turn off the power immediately. Then identify the causes and carry out the corrective action as indicated below. If the device stops due to the error indication, it cannot be restarted until error is cleared.

  • Page 29: Maintenance

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual Maintenance 7.1 Cleaning and disinfection 1) Outer part of device ① Clean the outside of the device with a dry soft cloth. If necessary, dip the cloth with neutral detergents and clean contaminated parts. Keep dry completely after cleaning.

  • Page 30: Device Tests For Centrifuges

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 7.2 Device tests for centrifuges 7.2.1 Validation of actual RPM 1. Prepare a RPM speed tachometer (hand tachometer) and fluorescent light tape. 2. Attach some fluorescent light tape on a grip of a rotor lid.

  • Page 31: Parts Information

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual Parts Information 8.1 Assembly Drawing 1) All parts...
  • Page 32 Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 2) Top, Bottom Case & Chamber Case (top)
  • Page 33 Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual Case (bottom) & Chamber...
  • Page 34 Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 3) Front Panel...
  • Page 35 Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 4) Door lock...
  • Page 36 Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 5) Door...
  • Page 37 Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 6) Motor...

  • Page 38: Parts List

    Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual 8.2 Parts list * The grey colored letters are old version parts. Part No. Name Remark (Instrument S/N) C04DR90100-00 Door Ass'y Top and bottom layers of a door C99DR00420-03 Center window require one each.
  • Page 39 Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual C04CS02633-01 Imbalance bracket 39-2 38-3 C99BD00720-02 Imbalance sensor (PCB A3) From LG422613070152 39-3 C04CS02633-02 Imbalance bracket Imbalance sensor(PCB A3) C04EL81100-00 Imbalance Sensor Ass`y and Cable(Imbalance) C04EL08220-01 Cable(Imbalance) V03EL06710-00 Board fan (220V)
  • Page 40 Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual C03EL90100-00 Door sensor - I C99EL03020-00 Door solenoid (110V) C99EL03120-00 Door solenoid (220V) C04EL90100-01 Door sensor - II 83-1 C15BD01520-00 Photoelectric sensor for door status An instrument requires 3 or 4ea.
