Summary of Contents for GYROZEN 1730R

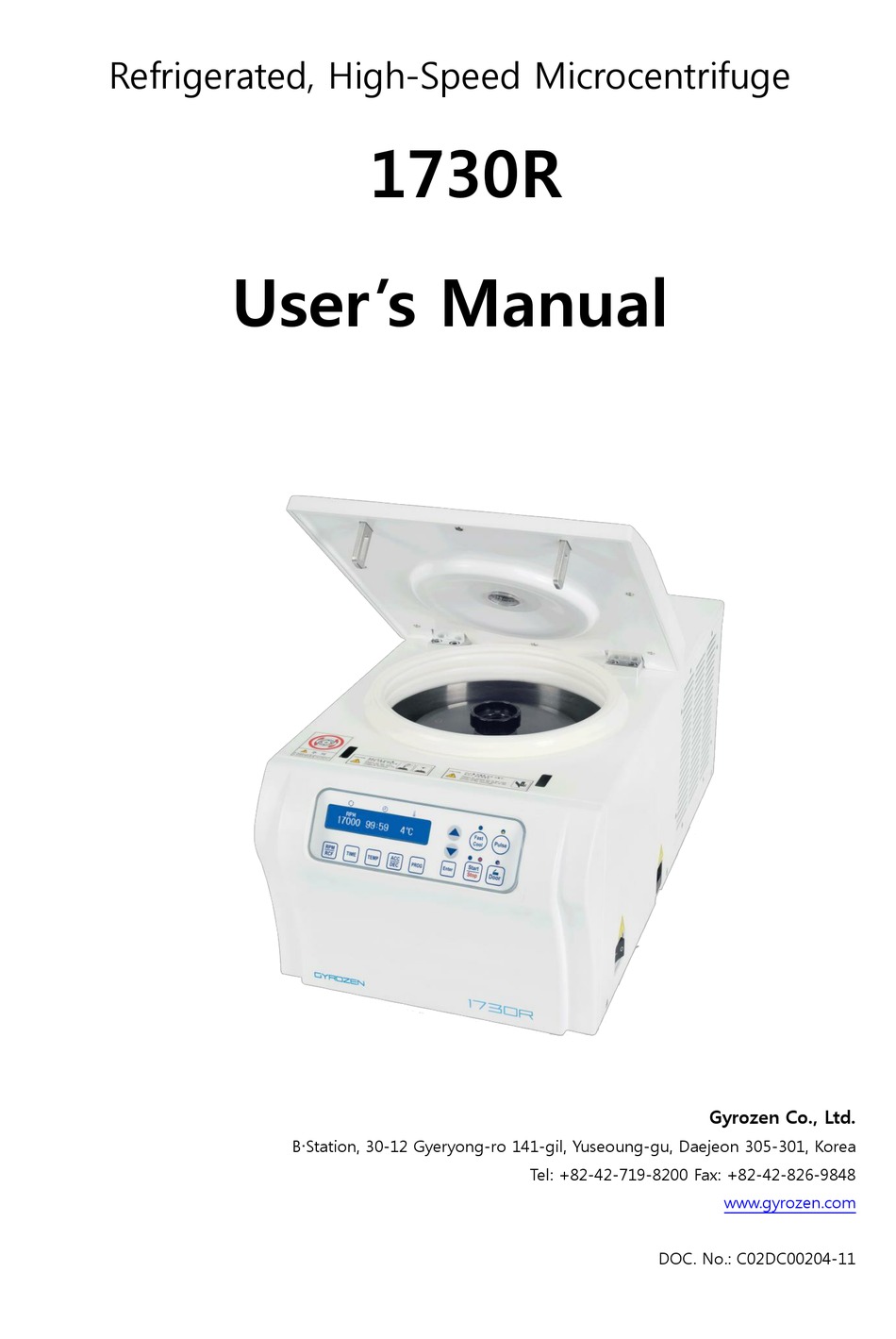

- Page 1 Refrigerated, High-Speed Microcentrifuge 1730R User’s Manual Gyrozen Co., Ltd. BStation, 30-12 Gyeryong-ro 141-gil, Yuseoung-gu, Daejeon 305-301, Korea Tel: +82-42-719-8200 Fax: +82-42-826-9848 www.gyrozen.com DOC. No.: C02DC00204-11...
- Page 2 Refrigerated, high-speed micro centrifuge 1730R...
- Page 3 Refrigerated, high-speed micro centrifuge 1730R...
-
Page 4: Table Of Contents
Start / Stop ......................................17 4-9. Emergency Door Open ..................................17 4-10. Fuse Replacement .................................... 18 Maintenance ......................................18 5-1. Outer part of instrument ................................18 5-2. Chamber ....................................... 18 5-3. Shaft ........................................18 5-4. Rotor ........................................19 Refrigerated, high-speed micro centrifuge 1730R... - Page 5 5-5. Transportation of the instrument ............................... 19 Trouble Shooting ....................................19 6-1. Check list ......................................19 6-2. Error Code ......................................20 Rotors & Accessories .................................... 22 Product Range ......................................23 CE ............................................24 Refrigerated, high-speed micro centrifuge 1730R...
-
Page 6: Meanings Of Symbols & Safety Precautions
Before using the instrument, please read this operation manual to ensure correct usage through understanding. Incorrect handling of the instrument could possibly result in personal injury or physical damage on the instrument or its accessories. Refrigerated, high-speed micro centrifuge 1730R... - Page 7 (Permissible ambient temperature: +5°C ~ +35 °C, Relative humidity: ≤ 85%) Before connecting the power, check the rated voltage. Should not use unapproved rotors and accessories. Only use rotors from Gyrozen Co., Ltd. with appropriate centrifugal tubes and suitable adaptors to embrace sample containers tightly enough inside rotors.
-
Page 8: Product Description And Technical Specifications
Install the instrument at the place without any kinds of corrosive gases. 2. Product Description & Technical Specifications 2-1. Product Description Refrigerated, high-speed micro centrifuge 1730R... -
Page 9: Technical Specifications
310 x 620 x 265 Weight without rotor (Kg) CE mark Cat. No. GZ-1730R ☞ This instrument has following functions for safety. 1. Automatic rotor identification function. 2. Automatic detection and alarms for imbalance, excess speed and heating. Refrigerated, high-speed micro centrifuge 1730R... -
Page 10: Installation
‘4-9. Emergency Door Open’. 3-2. Rotor Coupling and Disassembling Action Before coupling a rotor, clean the motor shaft and chamber with soft dry towel. 3-2-1. Fixed Angle Rotor/ PCR Rotor Mount a proper rotor into the motor shaft. Refrigerated, high-speed micro centrifuge 1730R... -
Page 11: Positioning Of Sample Tubes
Correct Way of Sample Balancing & Tube Usage ☞ If the number of samples is not in pair, please load the control tubes at each symmetrical position. Otherwise, it results noise and vibration, which eventually damages the instrument. Refrigerated, high-speed micro centrifuge 1730R... -
Page 12: Operation
Use to reach rapid refrigeration up to the setting temperature. □ Pulse Use for quick runs □ Enter Use for completion of data setting □ Start/Stop Use to start and stop operation □ Door Use to open instrument lid Refrigerated, high-speed micro centrifuge 1730R... -
Page 13: Setting Rpm/Rcf
10 rcf from 1 rcf. ▲▼ If you do not touch the [ ] button for 5 second, the setting mode is cleared. Touch the [Enter] button to complete the setting. Refrigerated, high-speed micro centrifuge 1730R... -
Page 14: Setting Time
▶ Temp setting unit: 1 ℃ Touch the [TEMP] button. Temperature value blinks on the display window. Touch the [▲▼] buttons to change input value. If you do not touch the [▲▼] button for 5 second, Refrigerated, high-speed micro centrifuge 1730R... -
Page 15: Acceleration / Deceleration
Input the desired level of ACC from 1 to 9. (Level 9: The fastest acceleration) If you do not touch the [▲▼] button for 5 second, the setting mode is cleared. Fix the ACC level by touching [Enter] button. Refrigerated, high-speed micro centrifuge 1730R... -
Page 16: Program Saving & Recalling
[Enter] button. If you do not touch the [▲▼] button for 5 second, the setting mode is cleared. When you touch the [Enter] button, display window shows the saved setting parameters (RPM/RCF, TIME, TEMP). Refrigerated, high-speed micro centrifuge 1730R... -
Page 17: Pulse
Manual opening should be performed only when spinning is completely stopped. Otherwise, harmful damage will be accompanied to not only operators but samples. After opening the door manually, it is recommended to wait until normal electricity comes back. Refrigerated, high-speed micro centrifuge 1730R... -
Page 18: Fuse Replacement
Always make special attention to clean the motor shaft to avoid any imbalance problem due to the contaminants. After using the instrument, take out the rotor from the shaft, and clean the shaft with dry soft cloth Refrigerated, high-speed micro centrifuge 1730R... -
Page 19: Rotor
If the power is out, check the main fuse for the laboratory to supply the power. If it is not solved in shortly, open the door with Emergency Door Can’t open the door Open Tool manually for safety of sample. (Please refer to 4-9. Emergency Door Open) Refrigerated, high-speed micro centrifuge 1730R... -
Page 20: Error Code
- If the motor is overheated, this message is appeared. -Shut off the power supply for an hour, and then turn on the power Error 3 Motor Overheating switch for checking the instrument. - If the error code shows continuously, please contact us. Refrigerated, high-speed micro centrifuge 1730R... - Page 21 3-2. Rotor Coupling and Disassembling.) Error 9 Sensor - If the error code shows continuously, please call Gyrozen Field Service Engineer. - If the instrument is not reached to setting temperature within an hour, this message is appeared.
-
Page 22: Rotors & Accessories
7. Rotors & Accessories Refrigerated, high-speed micro centrifuge 1730R... -
Page 23: Product Range
8. Product Range Refrigerated, high-speed micro centrifuge 1730R... - Page 24 9. CE Declaration Refrigerated, high-speed micro centrifuge 1730R...
