Enwork Equilibrium Round Installation Instruction page 8

3) Assembly:

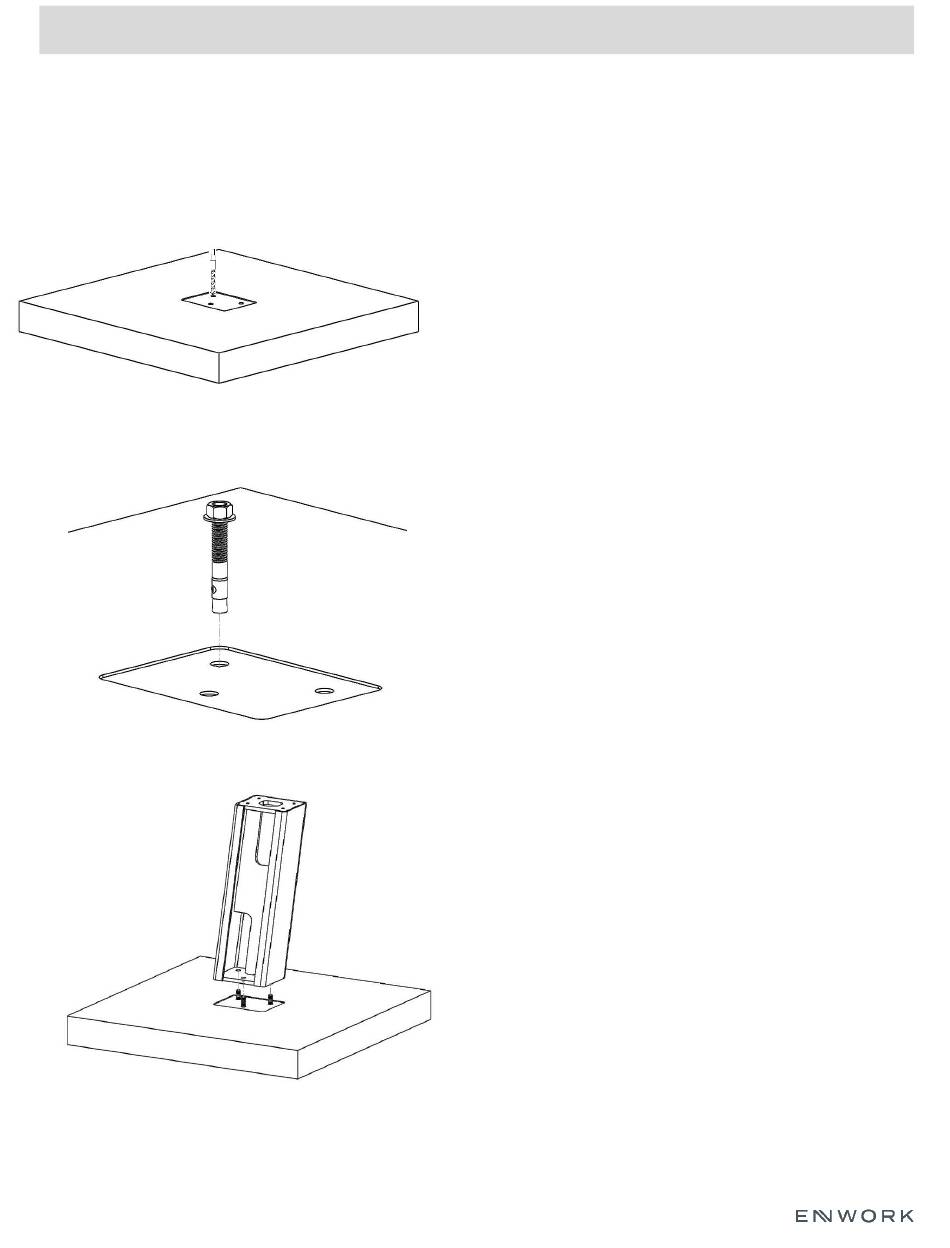

Fig. 3.4
Fig. 3.5
Fig. 3.6
INSTALLATION GUIDE
3.4.1) Drill marked hole locations to 2 ¾" deep.
3.4.2) Vacuum out the drilled holes to remove
dust that may prevent anchor from seating
properly.
3.5.1) Place one washer and one hex nut onto
provided concrete anchor so that the hex nut is
flush with the top of the anchor.
3.5.2) Insert anchor with washer and nut into the
the drilled floor hole. Using a hammer or
mallet pound anchors into drilled holes
until there is 1" - 1-1/2" protruding from
the floor.
3.5.3) Use ¾" socket to tighten anchor hex nuts
3.5.4) Once all bolts has been tightened, loosen
and remove the washers and nuts.
3.6.1) Take the base column and set into place,
aligning holes over bolts.
3.6.2) With base now in place, use washer and hex
nut and tighten to base.
