Enwork Equilibrium Round Installation Instruction page 12

3) Assembly:

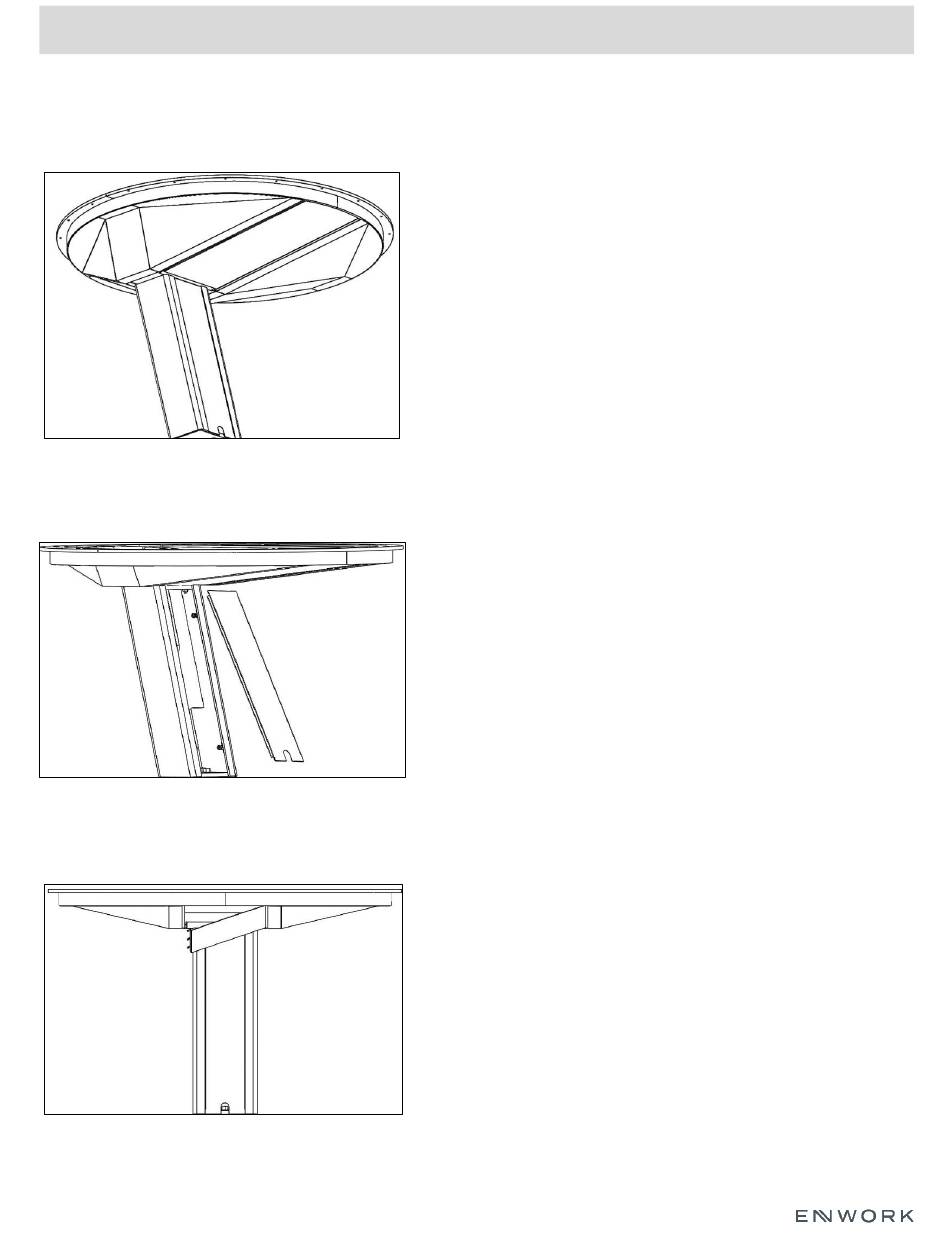

Fig. 6.1
Fig. 6.2
Fig. 6.3
Installing leg covers
INSTALLATION GUIDE
6.1.1) Fig 6.1 is base with removable covers
installed
6.2.1) Install the leg cover by attaching it to
pre-installed magnets
6.2.2) Fig. 6.2 shows power routing hole down
for power infeed access outside of base
6.2.3) If no power routing is needed, flip the
column cover so that routing hole is up
6.3.1) For top support cover, angle the cover
and lift the entire piece into the gap
between cantilevers
6.3.2) Once cover is inside the cantilevers, it can
be laid down and will rest on the side
tabs and rear flange touching the top
support of the base
