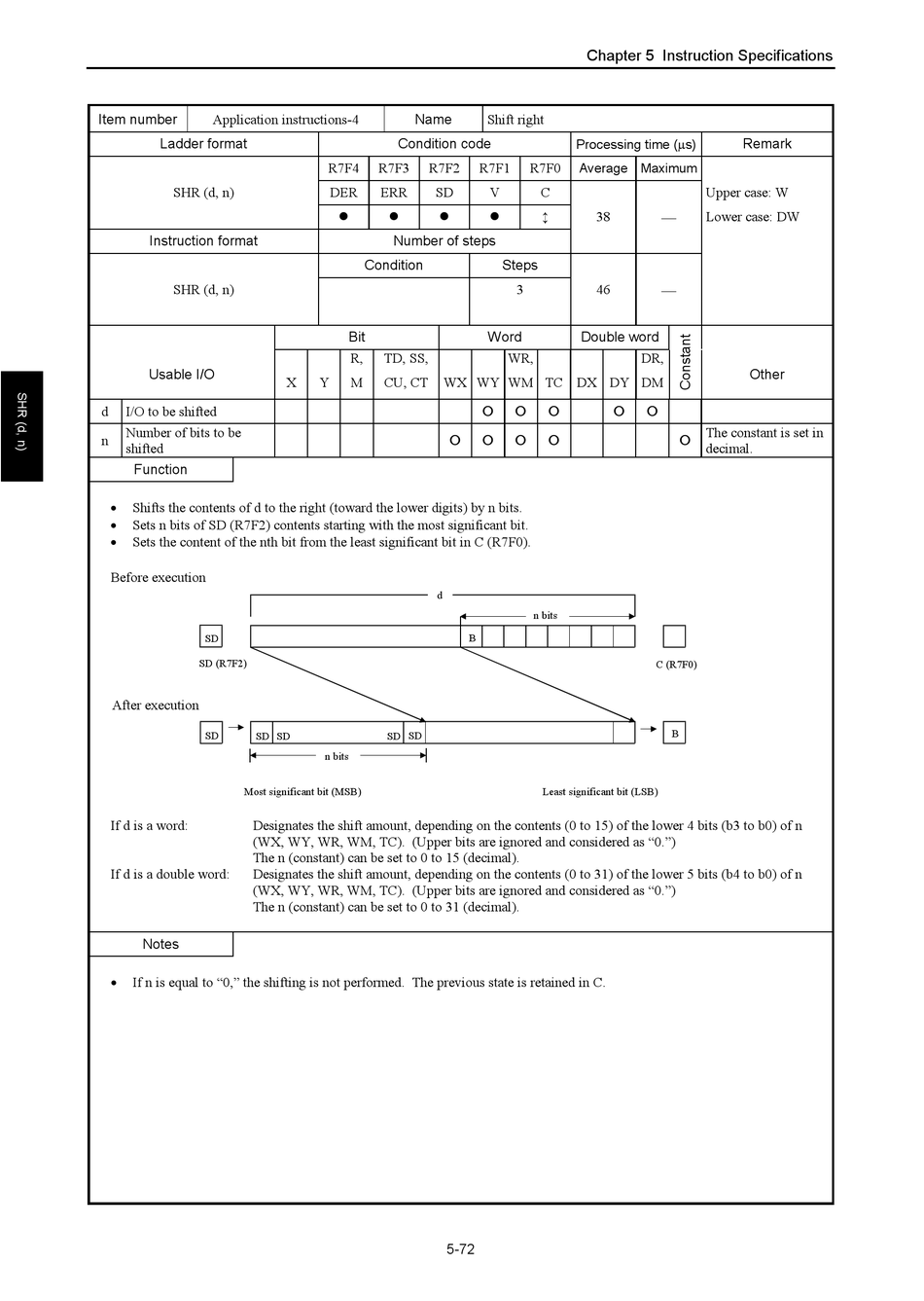

Item number Application instructions-4
Ladder format
SHR (d, n)
Instruction format
SHR (d, n)
Usable I/O
d I/O to be shifted
Number of bits to be
n
shifted
Function
•
Shifts the contents of d to the right (toward the lower digits) by n bits.
•
Sets n bits of SD (R7F2) contents starting with the most significant bit.
•
Sets the content of the nth bit from the least significant bit in C (R7F0).
Before execution
SD
SD (R7F2)
After execution
SD SD SD
Most significant bit (MSB)
If d is a word: Designates the shift amount, depending on the contents (0 to 15) of the lower 4 bits (b3 to b0) of n
(WX, WY, WR, WM, TC). (Upper bits are ignored and considered as "0.")
The n (constant) can be set to 0 to 15 (decimal).
If d is a double word: Designates the shift amount, depending on the contents (0 to 31) of the lower 5 bits (b4 to b0) of n
(WX, WY, WR, WM, TC). (Upper bits are ignored and considered as "0.")
The n (constant) can be set to 0 to 31 (decimal).
Notes
•
If n is equal to "0," the shifting is not performed. The previous state is retained in C.
Name
Condition code
R7F4 R7F3 R7F2
DER ERR SD
Number of steps
Condition
Bit
R, TD, SS,
X Y M CU, CT WX WY
d
SD SD
n bits
