REASSEMBLY
•

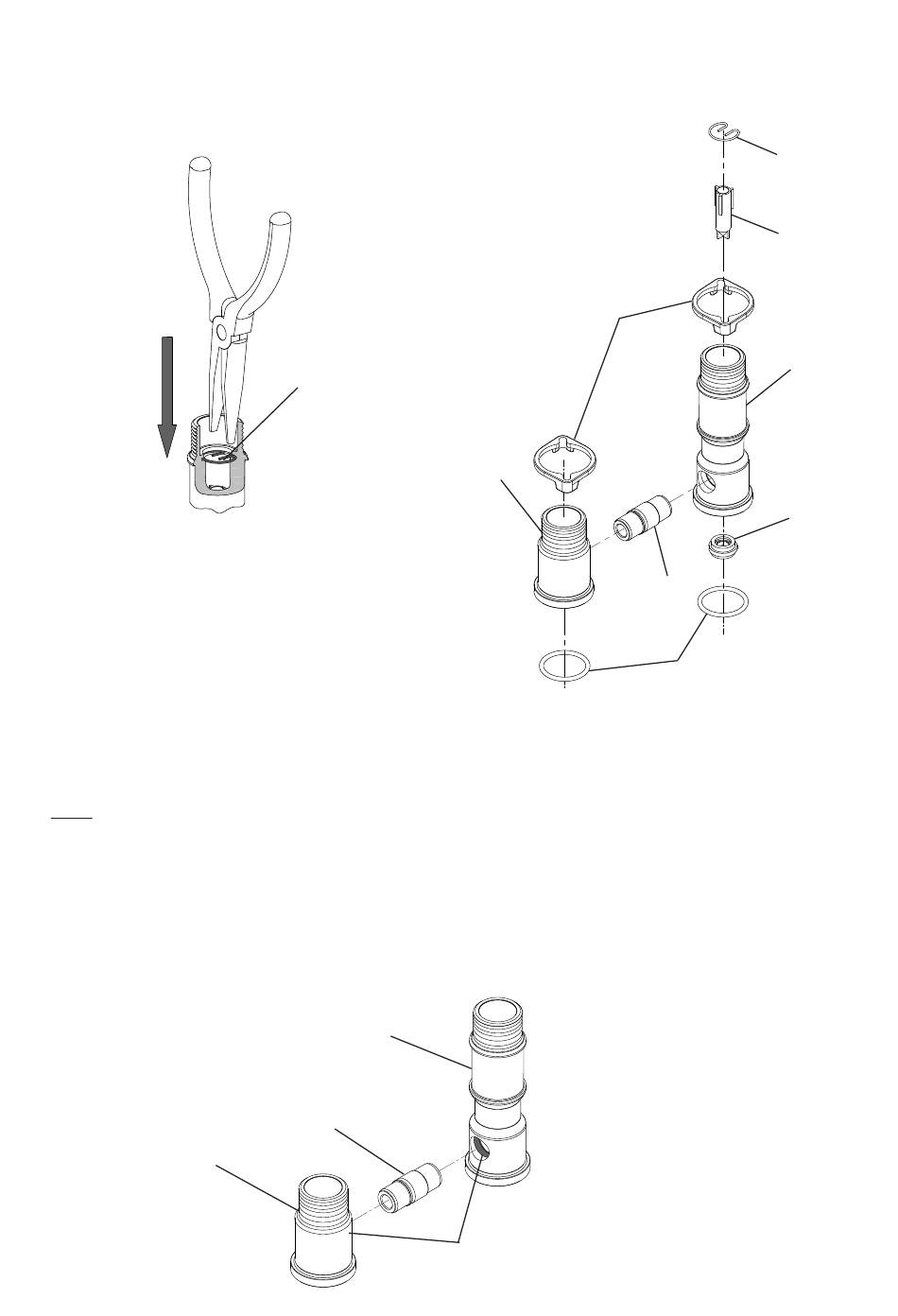

Fit the flow regulator (Item 14) into new outlet assembly, fit the magnetic float (Item 11) into
outlet assembly (see Fig. 10) and assemble circlip (Item 10) using fine point pliers as shown in
Fig. 9.
•
Reverse the disassembly instructions with the new replacement parts fitted as required.
•
Parts can be lubricated with clean water to aid assembly.
•
Secure manifold clamp screws, to a torque of 1.5 Nm. (Item 12).
Note – it is imperative that the new flow regulator (item 14) is fitted during this operation as
NOT to do so will infringe Regulation 5 of the Water Supply Regulations that states any pump
fitted to the mains supply pipe can only draw 12 l/min or less.
Note – Ensure the manifold clamps (item A) are placed over the outlet assembly (Item 24) and
inlet port (Item 23) BEFORE assembling them onto the NRV assembly (item 16), see Fig. 10.
Note - For the correct operation of the NRV assembly (Item 16), the 'O'-rings must be sat into the
inlet assembly and the outlet assembly grooves before fitting the NRV assembly as shown in
Fig. 11.
Inlet assembly
10
Fig. 9
Outlet assembly
16
Fig. 11
23
'O'-rings
- 6 -
10
11
A
16
7
24
14
Fig. 10
Cont ...
