Stuart Turner FLOMATE MBF 12 Installation Instructions Manual page 11

22
Terminal
box lid

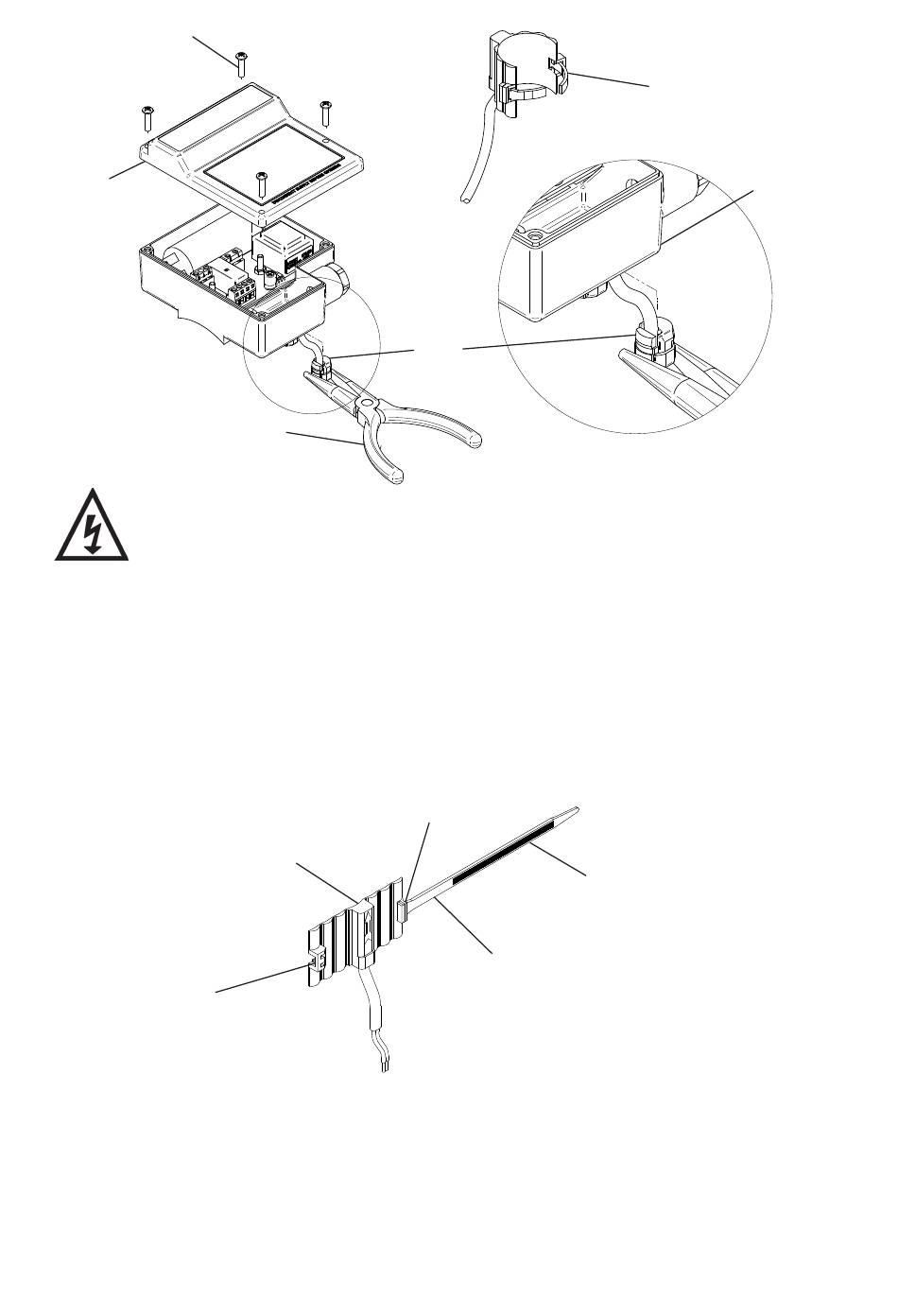

Fig. 20
Damaged components must be replaced. Contact Stuart Turner for advice on
replacements not supplied with kit.
•
REASSEMBLY
•
Fit the new strain relief bush around the reed switch cable and squeeze the strain relief bush
with pliers to compress the cable.
•
Push the cable and bush into the base of the terminal box ensuring the bush is fully seated
into its location.
•
Connect the two reed switch wires to the PCB (Fig. 19)
•
For correct operation of the flow switch, the reed must be secured to the body (Fig. 22)
•
Firstly feed the tie wrap (item 13) through the retainer on the reed switch, ensuring that the tie
wrap serrations are facing outwards (Fig. 21).
Catch
•
Locate the reed switch within the body groove as highlighted X-X (Fig. 22), and feed the tie
wrap through the second catch.
•
The tie wrap can now be pulled tight to secure the reed and excess cut to length as shown
(Fig. 23)
Pliers
21
Fig. 21
Bush
Retainer
13
- 11 -
Cut tie wrap
Terminal box
base
Serrations
Cont ...
