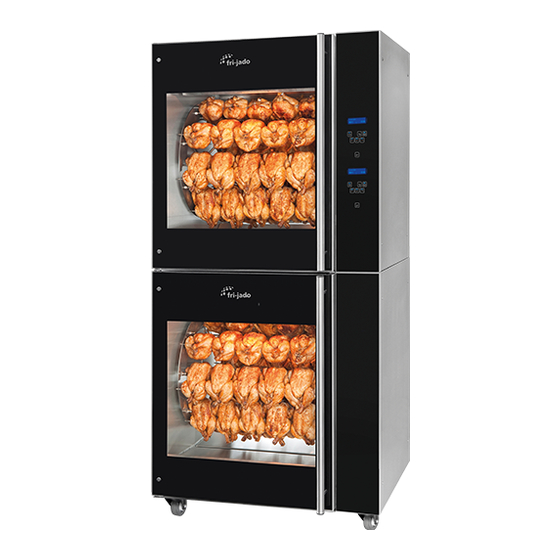

- Page 1 TDR-P USER MANUAL TDR 7 P TDR 7+7 P TDR 8 P TDR 8+8 P WARNING Read the instructions before using the machine. EN (Original Instruction) 9123983 / 2009...
- Page 2 These instructions must be post in a prominent location. KEEP THIS USER MANUAL IN A SAFE PLACE FOR FUTURE USE © 2020 Fri-Jado BV, Oud Gastel, The Netherlands. We advise you to contact your supplier for the guarantee period and conditions. Further we refer to our General Terms and Conditions for Sales and Delivery that are available upon request.
- Page 3 TDR-P Empty page. 3 / 48...
-
Page 4: Table Of Contents
TDR-P CONTENTS INTRODUCTION ......................6 General ..........................6 Identification of the unit ..................... 6 Pictograms and symbols ....................6 Safety instructions ......................7 1.4.1 General ........................7 1.4.2 Moving ......................... 8 1.4.3 Outdoor use restrictions ....................8 Hygiene ..........................9 Service and technical support ................... - Page 5 TDR-P Operation options ......................24 5.2.1 Pre-heat function ..................... 24 5.2.2 Continues pre-heat function ................... 25 5.2.3 To end a running program ..................25 5.2.4 Check the actual temperature ..................26 5.2.5 Check the remaining time in a program ..............26 5.2.6 Show all actual program information ................
-
Page 6: Introduction
TDR-P INTRODUCTION General This manual is intended for the user of the TDR 7/8 P Gas. The features and controls are being described, along with directions for the safest and most efficient use, in order to guarantee a long life of the unit. All pictograms, symbols and drawings in this manual apply to all available TDR-P GAS models. -
Page 7: Safety Instructions
TDR-P Safety instructions WARNING The top cover (in particular the flue tube) and the outside of the unit can be very hot. WARNING Do not put any objects on the equipment as this may cause fire. Keep all openings free from obstacles. WARNING Keep the opening between the equipment and the table surface free from obstacles in order to ensure good ventilation in the electrical compartment. -
Page 8: Moving
TDR-P • Children shall not play with the appliance. • Cleaning and user maintenance shall not be made by children without supervision. 1.4.2 Moving When moving the unit: • Before moving the unit, first switch off the mains voltage by pulling the plug from the wall socket and empty the fat collecting drawer. -
Page 9: Hygiene
TDR-P Hygiene The quality of a fresh product always depends on hygiene. Especially grilling products. With the risk of salmonella contamination – especially for chicken products – you must make sure that grilled products can never be mixed with uncooked products. Also contact between grilled products and hands or tools that have been in contact with raw chicken meat, must be avoided at all times. -
Page 10: Description Of The Unit
TDR-P DESCRIPTION OF THE UNIT Technical description Heating takes place by means of gas that is burnt in a heat exchanger placed in the ceiling. A fan mixes the gas and air, which mixture is ignited by means of an automatic ignition. The combustion takes place in the inner part of the heat exchanger and is therefore not visible. -
Page 11: Installation And First Use
TDR-P INSTALLATION AND FIRST USE All packing materials used for this unit are suited for recycling. After unpacking, check the state of the unit. In case of damage, store the packing material, and contact the transporter within fifteen working days after receiving the goods. Unpacking the unit Your unit is packed in a plastic top cover, protective corners and a carton box around it. -
Page 12: Dismantling The Pallet
TDR-P Dismantling the pallet For proper unpacking the unit, the pallet must be taken apart. Installation and positioning WARNING DO NOT USE THIS GRILL WITH ANY GAS OTHER THAN THE ONE SHOWN ON THE MODEL RATING PLATE. WARNING Position the unit on a flat and horizontal surface. A temporally inclined plane of maximum 5°... - Page 13 TDR-P WARNING Electric chock hazard. Grounding instructions: only connect the appliance to an alternating current provided by a grounded wall socket, with a mains voltage in accordance with the information indicated on the data plate of the appliance. It is the consumer's responsibility to make sure the electrical installation conforms with current national and local codes and wiring regulations.
-
Page 14: First Use
TDR-P • North American units must when installed be electrically grounded in accordance with local codes, or in the absence of local codes, with the National Electric Code, NFPA 70, or the Canadian Electrical Code, CSA C22.2, as applicable. • North American units equipped with casters must be installed with connectors that comply with the Standard for Connectors for Movable Gas Appliances, ANSI Z21.69 •... -
Page 15: Metal Odor
TDR-P The cleaning remains will find its way to the fat collection drawer, so this drawer must be cleaned and emptied after cleaning the unit. • Place the bottom plates in the grilling compartment. Bottom Plates 3.4.1 Metal odor To remove the metal odor that will appear at first use, the unit must be heated at the maximum temperature (250°C/482°F) for at least half an hour ( a “first use”... -
Page 16: Operation And Use
TDR-P OPERATION AND USE WARNING Hot glass, grease and parts can cause burns. Use with care when operating and servicing the unit. WARNING Check the grease drawer after each cooking process and empty already when about half full to avoid overflowing. WARNING In the event a gas odor is detected or people get unwell in the vicinity of the unit, shut down the unit with the main shut of valve and contact the local gas company or... -
Page 17: Switching-On The Unit
Whole uncut chickens should always be grilled using the meat forks. This way their natural fat will baste each other, giving a perfectly slender cooking result. Refer to the You-Tube movie: “Fri-Jado instruction for binding and loading chicken”. 17 / 48... - Page 18 TDR-P For preparing chicken or any other poultry, you can work as follows: Insert one point of the meat fork through the chest at the position of the wings. Insert the other point through the drum sticks. Don’t forget to include the wings. Leave some space between the products, for an even exposure and browning.
-
Page 19: Loading The Rotisserie Using V-Shape Spits (Accessory)
TDR-P 4.3.2 Loading the rotisserie using V-shape spits (accessory) If you are using V-shape spits act as follows: • Place the skewer into the small outside hole on the rotor end plate on your left (as you face the oven). The back of the V-shape spit should be pointing towards you. •... -
Page 20: Loading The Rotisserie Using Two Different Accessories
Take the meat fork at its other end and take it out of the unit. Remove the products from the meat fork. Refer to the You-Tube movie: “Fri-Jado instruction for unloading chicken from a rotisserie”. 4.5.2 Taking out the V-shape spit (accessory) For taking out the V-shape spit you can use the same principle as described in section 4.5.1. -
Page 21: Taking Out The Meat Basket (Accessory)
TDR-P 4.5.3 Taking out the meat basket (accessory). When taking out the meat basket from the TDR it is best to act as follows: Slightly lift both ends of the meat basket. Move the basket towards either the left or right hand side of the unit. This action unlocks one end of the basket. -
Page 22: Operation
OPERATION Buttons are lit when functional. Reset the gas burner controller when indicator light is on. Operation of the rotisserie 1. Press Start. 2. Display shows Fri-Jado logo. 3. Display shows software version. Interface P Eco TDR GAS Version x.x.x 4. - Page 23 TDR-P Refer to section 5.2 for pre-heat options. 10. After loading, close the door. LOAD Note: press OK or open the door to stop the signal. START Note: Screen 9 and 10 alternate each 5 seconds. 11. When loading: press the rotor button to turn the rotor.
-
Page 24: Operation Options
TDR-P 20. (Optional, visible for 5 min.) request for 2 Chicken additional time (minutes) after opening the Add time? door. Note: Add time is only available when activated in the service menu. 21. (Optional) press right arrow for one minute increase, press left arrow for one minute decrease. -
Page 25: Continues Pre-Heat Function
TDR-P 5.2.2 Continues pre-heat function Only when selected in the Manager Menu. Display shows the actual pre-heat 138°C temperature. Preheat Pre-heat ready (unit returns a sound signal). Note: press OK or open the door Start Program? to stop the signal. Press the OK to start the program. -
Page 26: Check The Actual Temperature
TDR-P 5.2.4 Check the actual temperature For example: Check the current 1 Chicken temperature in program 1 Chicken, step 1. 230°C P123 10:05 Press the OK button. The display shows during 3 1 Chicken seconds the actual temperature. 220°C P123 10:05 5.2.5 Check the remaining time in a program... -
Page 27: Eco Function
TDR-P Display shows the programmed 180°C 0:20 temperature and time. Press List button again for additional information. Display shows the programmed 0:07 230 0:05 0:05 steps and remaining times in one 180 0:20 0:20 085 0:10 0:10 overview. 210 0:10 0:10 + 00:00:00 (Step –... -
Page 28: Cook Correction
TDR-P 5.2.8 Cook correction Optional: only available when activated in the manager and service menu. 180°C 0:20 Cook correction: Depending on the load of products the cooking time will be automatically adjusted. The first cook is the reference cook and will be used to fix the correct parameters. -
Page 29: Manager Menu
TDR-P MANAGER MENU Manager menu items Programming Parameters Change pin Pre-Heat Clock Edit Preheat temperature Transfer Delete Holding Version Copy Holding temperature Cook correction* Eco function* Reading recipes Language Store recipes Big digits Sound preheat Sound step Sound done * Only visible when selected in the service menu. Programming the rotisserie Possible programming steps: •... - Page 30 TDR-P Enter the User PIN code. Pin 0 - - - Give User PIN code Note: the original PIN code is 1111. The operator can change the User PIN code. Use the arrow button to enter the PIN code. Press the arrow right button to change the Pin 1 - - - first digit.
- Page 31 TDR-P The first available number is shown. Choose new number Note: use the arrow right button to select the next available number. Press the OK button to confirm. Enter the recipe name. 10 A-------------- for others Use the arrow button to change the character.
- Page 32 TDR-P Press the OK button to confirm. Set the “step 1” temperature. 10 Step 1 Starting with the first digit. Temp 1 - - °C Use the arrow buttons to increase/decrease the value of the selected digit. Press the OK button to confirm. Set the second digit.
- Page 33 TDR-P Press the OK button to confirm. Set the second digit. 10 Step 1 Temp 215 °C Time 21 - Press the OK button to confirm. Set the last digit. 10 Step 1 Temp 215 °C Time 210 Press the OK button to confirm. The Step is now completed.
- Page 34 TDR-P When ready programming press the OK button to confirm. Save the finished programs. 10 TEST Note: if the program is not saved all Save 1… changes are lost! Press the OK button to confirm. The screen returns to the RECIPES RECIPES menu.
-
Page 35: Programming Parameters
TDR-P Programming parameters Press the list button. Pin * * * * Enter your user PIN code. Give User PIN code Press the OK button to confirm. Press the arrow buttons to select MANAGER MENU Parameters. Parameters 1... Press the OK button to confirm. Press the arrow buttons to select Change Language: Dutch or Previous. - Page 36 TDR-P Use the arrow buttons to select Change, Language: English Next or Previous. … Next 1… Press back to enter the manager menu. Press the OK button to confirm or select Save parameters? Discard to cancel. Save 1... Use the arrow buttons to select the other settings: Big Digits YES/NO:...
-
Page 37: Change Pin Code
TDR-P Change pin code Manager menu. MANAGER MENU Select Change Pin. … Change Pin 1… Press the OK button. Enter the new pin code. Pin 0 0 0 0 Press the OK button. Enter new code Clock Manager menu. MANAGER MENU Select Clock. -
Page 38: Usb
TDR-P Manager menu. MANAGER MENU … Programming 1... Use the arrow buttons to select the USB function. Screen shows the USB function. MANAGER MENU Place the USB stick into the USB- … slot. Press the OK button to confirm. Use the arrow buttons to select Read to exchange an existing Read program or STORE to save a... -
Page 39: Cleaning And Maintenance
TDR-P CLEANING AND MAINTENANCE WARNING Appliance must be disconnected from the power supply during cleaning or maintenance and when replacing parts. Do not use aggressive or abrasive materials. These will damage the surface which will make it more difficult to remove dirt. Clean the inside, the removable parts and the accessories thoroughly with cleanser and water before putting the unit into use. -
Page 40: Weekly Cleaning
TDR-P Rotor and bottom plates • Remove the rotor and bottom plates from the unit (no tools required). • Place the detachable parts in a wide rinsing container filled with hot water and an appropriate cleaning agent. • Soak these parts for one night and clean them the next day. Fat collecting drawer •... -
Page 41: Three Monthly Cleaning
Let removable parts soak overnight in water with a suitable cleaning agent added and clean them with a brush. • Let the fan blades soak overnight in undiluted Fri-Jado Clean and clean them with a brush. • Remove the dirt from all inside parts of the TDR. -
Page 42: Malfunctions And Service
TDR-P MALFUNCTIONS AND SERVICE WARNING Please contact the manufacturer, its representative, or a local service company to perform maintenance and repairs. Before you contact your supplier/dealer in case of a malfunction, there are some items you can check yourself: • Is the power supply working properly? Check fuses and differential switch. -
Page 43: Replace The Gas Hose
TDR-P Replace the gas hose WARNING If the gas hose is damaged or has visible cracks immediately contact your supplier/service station. Immediate replacement is required in view of possible danger. Maintenance on the gas installation must be done by a registered installer in accordance with the current national and local regulations. -
Page 44: Technical Specifications
TDR-P TECHNICAL SPECIFICATIONS WARNING Consult the identification plate to get the proper specifications of the unit. The gas and electrical data may vary from country to country. TDR 7/8 P European Model American Model Model Dimensions approx. Width 995 mm 1135 mm 39 ½... - Page 45 TDR-P Notes. 45 / 48...
- Page 46 TDR-P Notes. 46 / 48...
- Page 47 TDR-P Notes. 47 / 48...
- Page 48 TDR-P Fri-Jado B.V. Fri-Jado Inc. Blauwhekken 2 1401 Davey Road, Suite 100 4751 XD Oud Gastel Woodridge IL 60517 The Netherlands Tel: +31 (0) 76 50 85 400 Tel: +1-630-633-7950 www.frijado.com 48 / 48...
