SERVICE MANUAL
TDR P
eco
TDW - WARMER MODELS
MODELS
TDR 5 P
eco
TDR 7 P
eco
TDW 5 P
TDW 7 P
WWW.FRIJADO.COM
- ROTISSERIE OVEN MODELS

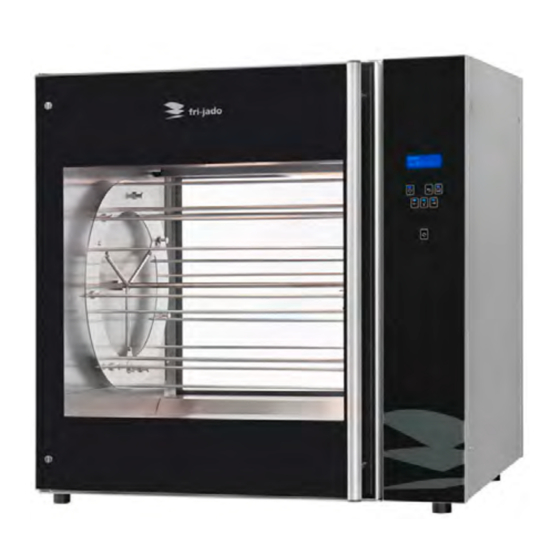

Model TDR 5 P
This manual is prepared for the use of trained Service Technicians
and should not be used by those not properly qualified. If you
have attended training for this product, you may be qualified to
perform all the procedures in this manual.
This manual is not intended to be all encompassing. If you have
not attended training for this product, you should read, in its
entirety, the repair procedure you wish to perform to determine
if you have the necessary tools, instruments and skills required to
perform the procedure. Procedures for which you do not have the
necessary tools, instruments and skills should be performed by a
Reproduction or other use of this Manual, without the express
written consent of Fri-Jado, is prohibited.
eco
- NOTICE -
trained technician.
Service Manual TDR5/7 P TDW5/7P form 9123926 rev. 10/2014
Model TDR 7 P
eco
USA
