Commissioning
3. Press navigation keys to scroll to parameter
group 0-0* Basic Settings and press [OK].
5 5

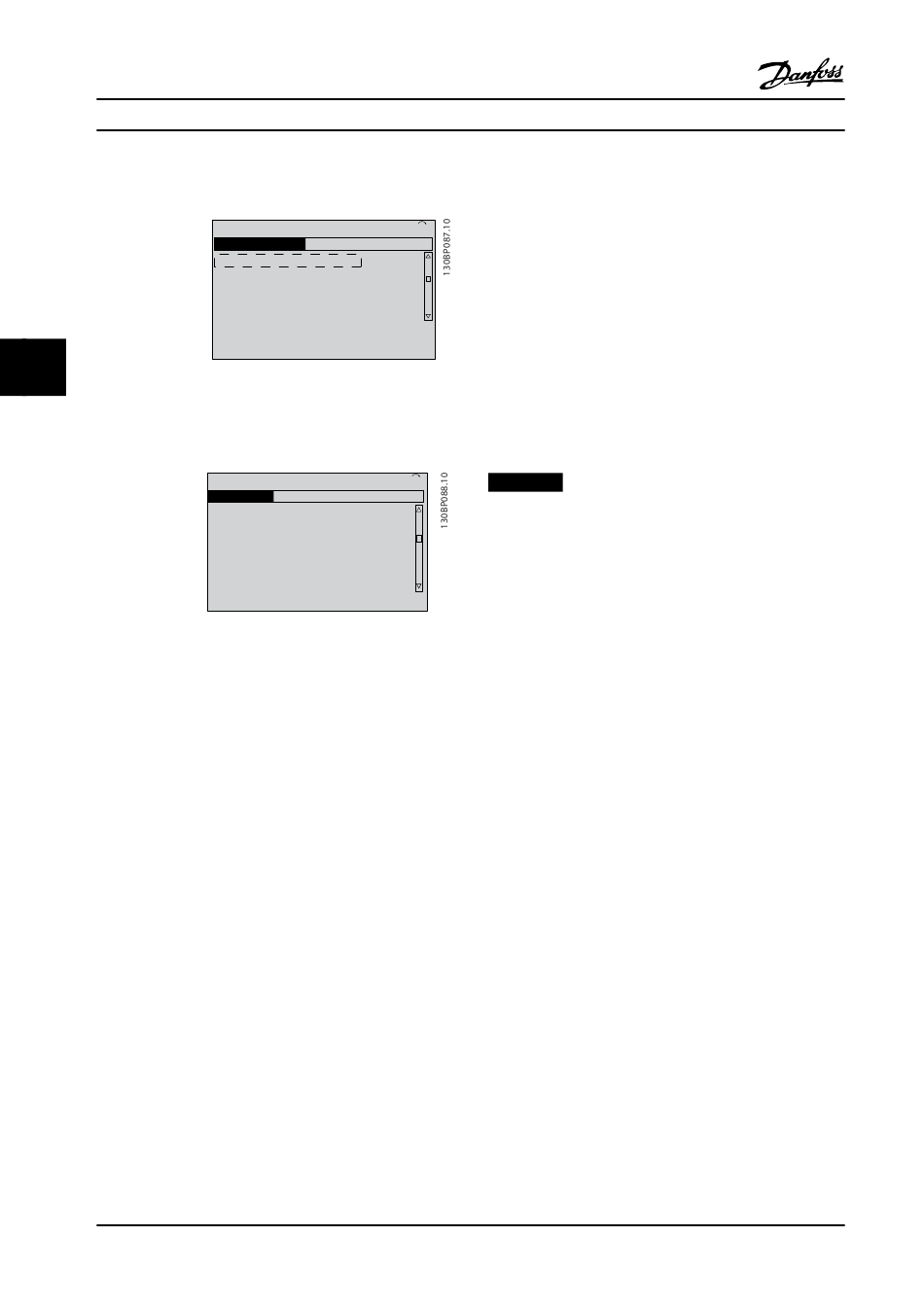

Figure 5.3 Operation/Display
4. Press navigation keys to scroll to 0-03 Regional
Settings and press [OK].
Figure 5.4 Basic Settings
5. Press navigation keys to select [0] International or
[1] North America as appropriate and press [OK].
(This changes the default settings for a number
of basic parameters).
6. Press [Main Menu] on the LCP.
7. Press the navigation keys to scroll to
0-01 Language.
8. Select language and press [OK].
9. If a jumper wire is in place between control
terminals 12 and 27, leave 5-12 Terminal 27 Digital
Input at factory default. Otherwise, select No
Operation in 5-12 Terminal 27 Digital Input. For
adjustable frequency drives with an optional
bypass, no jumper wire is required between
control terminals 12 and 27.
10. 3-02 Minimum Reference
11. 3-03 Maximum Reference
12. 3-41 Ramp 1 Ramp-up Time
13. 3-42 Ramp 1 Ramp-down Time
14. 3-13 Reference Site. Linked to Hand/Auto Local
Remote.
28
Instruction Manual
0.0% 0.00A
Operation / Display
0-0 * Basic Settings
0-1 Set-up Operations
*
0-2 * LCP Display
0-3 * LCP Custom Readout
0.0% 0.00A
Basic Settings
0-03 Regional Settings
[0] International
Danfoss A/S © Rev. 2014-04-10 All rights reserved.

5.4.3 Asynchronous Motor Set-up

Enter the motor data in parameter 1-20 Motor Power [kW]
1(1)
or 1-21 Motor Power [HP] to 1-25 Motor Nominal Speed. The
0- **
information can be found on the motor nameplate.
1. 1-20 Motor Power [kW] or 1-21 Motor Power [HP]
2. 1-22 Motor Voltage
3. 1-23 Motor Frequency
4. 1-24 Motor Current
5. 1-25 Motor Nominal Speed
5.4.4 PM Motor Set-up in VVC
NOTICE!
1(1)
0-0
*
Only use permanent magnet (PM) motor with fans and
pumps.
Initial Programming Steps
1. Activate PM motor operation 1-10 Motor
Construction, select (1) PM, non-salient SPM
2. Set 0-02 Motor Speed Unit to [0] RPM
Programming motor data
After selecting PM motor in 1-10 Motor Construction, the
PM motor-related parameters in parameter groups 1-2*
Motor Data, 1-3* Addl. Motor Data and 1-4* are active.
The necessary data can be found on the motor nameplate
and in the motor data sheet.
Program the following parameters in the listed order
1. 1-24 Motor Current
2. 1-26 Motor Cont. Rated Torque
3. 1-25 Motor Nominal Speed
4. 1-39 Motor Poles
5. 1-30 Stator Resistance (Rs)
Enter line to common stator winding resistance
(Rs). If only line-line data are available, divide the
line-line value by 2 to achieve the line to
common (starpoint) value.
6. 1-37 d-axis Inductance (Ld)
Enter line to common direct axis inductance of
the PM motor.
If only line-line data are available, divide the line-
line value by 2 to achieve the line-common
(starpoint) value.
plus
MG16E322
