Danfoss FC 103 Instruction Manual page 36

Application Set-up Examples
L
1
L
2
PE
gL/UR
6 6

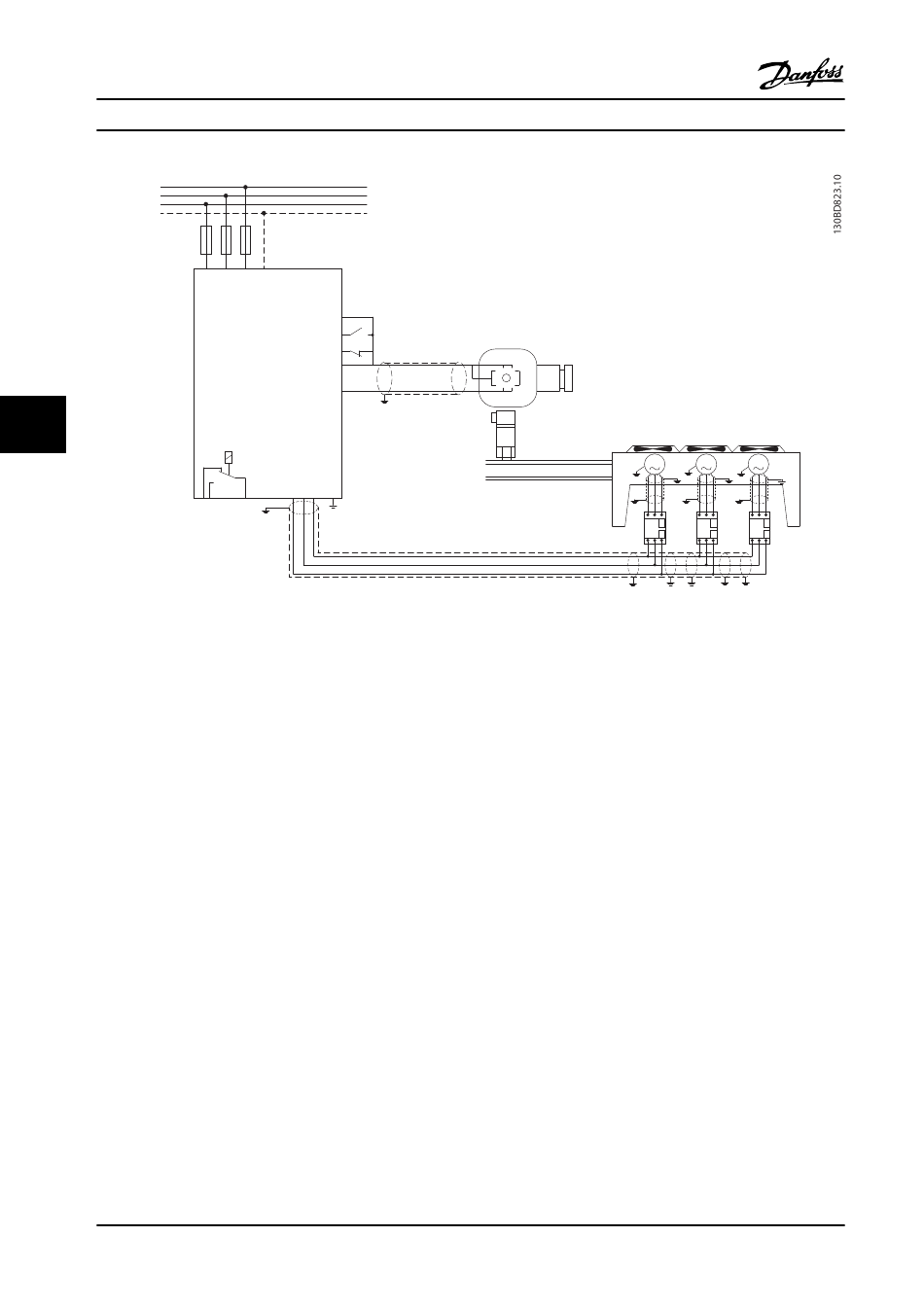

Figure 6.3 Pressure Control in Closed-loop – Stand Alone System – Single Fan or Pump/Multiple Fans or Pumps in Parallel
Recommended motor cable types are:
•
LIYCY
•
Lapp Oelflex 100CY 450/750 V
•
Lapp Oelflex 110CY 600/1000 V
•
Lapp Oelflex SERVO 2YSLCY-J9
•
Lapp Oelflex SERVO 2YSLCYK-J9
•
HELU TOPFLEX-EWV-2YSLCY-J
•
HELU TOPFLEX-EWV-UV 2YSLCYK-J
•
HELU TOPFLEX-EWV-3PLUS 2YSLCY-J
•
HELU TOPFLEX-EWV-UV-3PLUS 2YSLCYK-J
•
Faber Kabel EWV-Motorleitung 2YSL(St)Cyv
•
nexans MOTIONLINE RHEYFLEX-EWV 2XSLSTCY-J
34
F1
91 92 93
FC 103
12
18
27
54
55
Alarm
Motor
U V W PE
96 97 95 93
Danfoss A/S © Rev. 2014-04-10 All rights reserved.
Instruction Manual
Start
Cables
Ltot. max. = 40 mm
Motors insulation class B minimum
M M M
* * *
MG16E322
