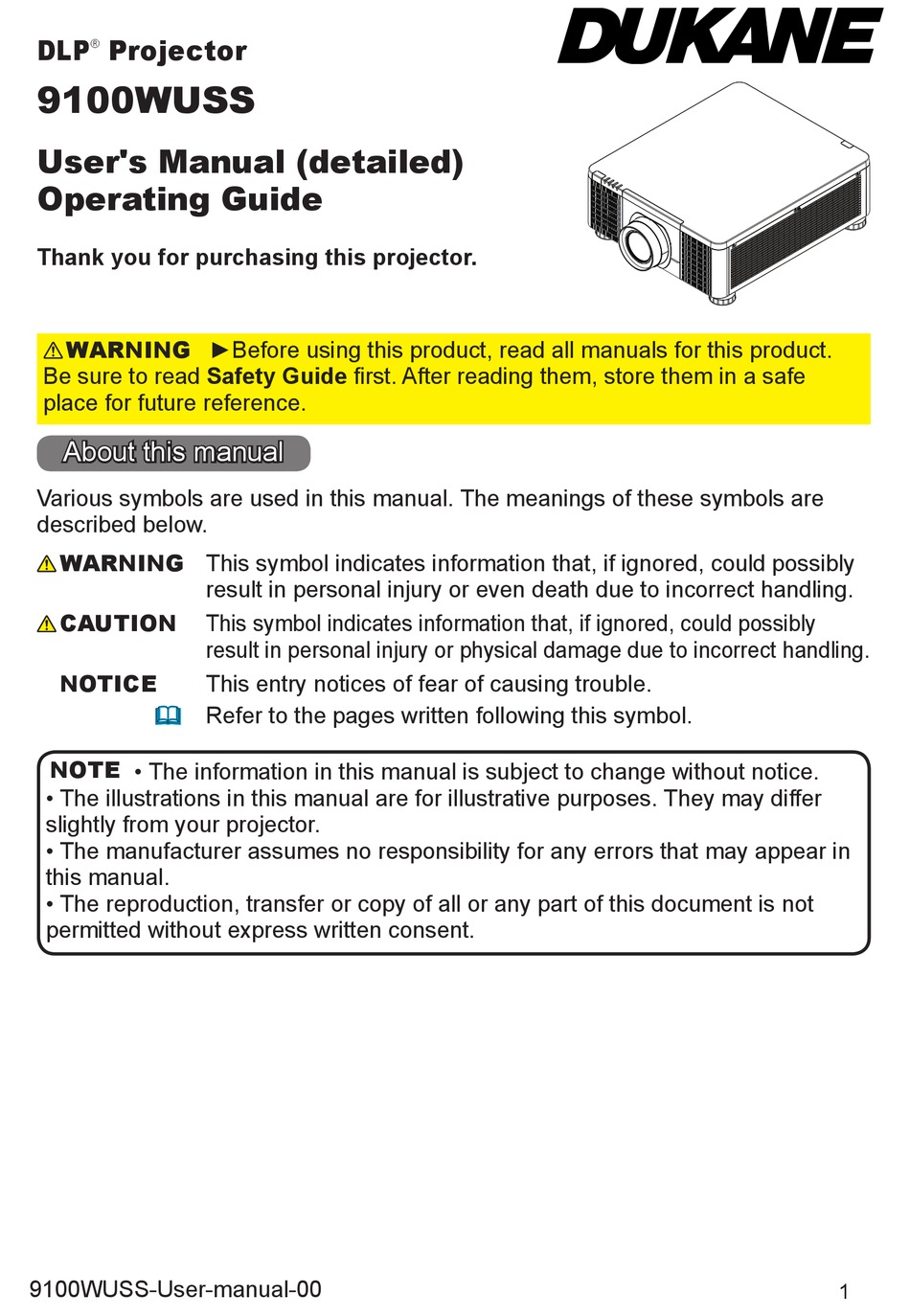

DLP
Projector
®
9100WUSS
User's Manual (detailed)
Operating Guide
Thank you for purchasing this projector.
WARNING
Be sure to read Safety Guide first. After reading them, store them in a safe
place for future reference.
About this manual
Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING
CAUTION
NOTICE
NOTE
• The information in this manual is subject to change without notice.
• The illustrations in this manual are for illustrative purposes. They may differ
slightly from your projector.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
9100WUSS-User-manual-00
►Before using this product, read all manuals for this product.
This symbol indicates information that, if ignored, could possibly
result in personal injury or even death due to incorrect handling.
This symbol indicates information that, if ignored, could possibly
result in personal injury or physical damage due to incorrect handling.
This entry notices of fear of causing trouble.
Refer to the pages written following this symbol.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9100WUSS and is the answer not in the manual?

Questions and answers

Related Manuals for Dukane 9100WUSS

Summary of Contents for Dukane 9100WUSS

  • Page 1 Projector ® 9100WUSS User's Manual (detailed) Operating Guide Thank you for purchasing this projector. WARNING ►Before using this product, read all manuals for this product. Be sure to read Safety Guide first. After reading them, store them in a safe place for future reference.

  • Page 2: Table Of Contents

    Contents   Introduction . . . . . . . . . . . . . . . 3 Web Control . . . . . . . . . . . . . . . 65 Checking the contents of package .

  • Page 3: Introduction

    Introduction Introduction Checking the contents of package See the Contents of package section in the User’s Manual (booklet). Your projector should come with the items shown there. Require of your dealer immediately if any items are missing. WARNING ►Keep small parts away from children and pets. Take care not to put in the mouth.

  • Page 4: Part Names

    Introduction Part names Projector (1) Mount cap (19) (2) Adjustable foot (x4) (27) (3) Remote sensor (23, 61) (4) Ventilation inlet (5) Control panel (5) (6) AC (AC inlet) (19) (7) Ventilation inlet (8) Ventilation outlet (9) Ports (6) (10) Security slot (18) (10) WARNING ►Do not open or remove any portion of the product, unless...
  • Page 5 Introduction Part names (continued) Control panel and Indicators (1) STANDBY/ON button (2) INPUT button (3) AUTO button (4) ASPECT button (5) LENS CENTERING button (6) BLANK button (7) MENU button (8) ▲/▼/◄/► cursor buttons (9) ENTER button (10) EXIT button (11) LENS SHIFT button (12) FOCUS button (13) ZOOM button...
  • Page 6 Introduction Part names (continued) Ports (13~17) (1) COMPUTER IN1 port (2) COMPUTER IN2 port (3) CONTROL port (4) HDBaseT/LAN port (5) HDMI 1 port (6) HDMI 2 port (7) DVI-D port (8) SDI IN/OUT port (9) REMOTE CONTROL port (10) 12V OUTPUT (OPTION) port (10) CONTROL R/Cr/Pr...
  • Page 7 Introduction Part names (continued) Remote control (1) STANDBY button (2) ON button (3) VOLUME + / - buttons * (32) (4) AV MUTE button (5) COMPUTER 1 button (6) COMPUTER 2 button (10) (7) VIDEO button * (11) (12) (8) LAN button * (13) (9) USB TYPE A button * (14)

  • Page 8: Setting Up

    Setting up Setting up Install the projector according to the environment and manner the projector will be used in. For the case of installation in a special state such as ceiling mount, the specifi ed mounting accessories and service may be required. Before installing the projector, consult your dealer about your installation.

  • Page 9: Installing The Lens Unit

    Installing the lens unit See the manual of the optional lens. Note: The Dukane model described in this document is manufactured by Hitachi and uses the same firmware, software programs, control code, and accessory parts. The equivalent Dukane to Hitachi model is 9100WUSS...

  • Page 10: Arrangement

    Setting up Arrangement Refer to "Throw distance" in User’s Manual (booklet) for details. Projector top Projector bottom Ⓗ × Ⓥ : Screen size ⓐ : Projection distance (from the front of the projector unit) NOTE • The installation position and the operating environment such as temperature, altitude may affect the brightness of the display.
  • Page 11 Setting up Arrangement (continued) WARNING ►Install the projector where you can access the power outlet easily. If an abnormality should occur, unplug the projector urgently. Otherwise it could cause a fire or electric shock. ►Do not subject the projector to unstable conditions. If the projector falls or topples over, it could result in injury or damage to the projector and the surrounding things.
  • Page 12 Setting up Arrangement (continued) CAUTION ►Place the projector in a cool place with sufficient ventilation. The projector may shutdown automatically or may malfunction if its internal temperature is too high. Using a damaged projector could result in a fire and an electric shock. •...

  • Page 13: Connecting With Your Devices

    Setting up Connecting with your devices Before connecting the projector to a device, consult the manual of the device to confirm that the device is suitable for connecting with this projector and prepare the required accessories, such as a cable in accord with the signal of the device. Consult your dealer when the required accessory did not come with the product or the accessory is damaged.
  • Page 14 Setting up Connecting with your devices (continued) Computer HDBaseT 12V OUTPUT CONTROL B/Cb/Pb R/Cr/Pr COMPUTER IN 1 (OPTION) COMPUTER IN 2 REMOTE CONTROL HDBaseT HDMI 1 DVI-D HDMI 2 NOTE • Before connecting the projector to a computer, consult the computer’s manual and check the compatibility of the signal level, the synchronization methods and the display resolution output to the projector.
  • Page 15 Setting up Connecting with your devices (continued) External Computer device 12V OUTPUT CONTROL B/Cb/Pb R/Cr/Pr COMPUTER IN 1 (OPTION) COMPUTER IN 2 Access point REMOTE CONTROL HDBaseT HDMI 1 DVI-D HDMI 2 CAUTION ► Before connecting the projector to a network system be sure to obtain the consent of the administrator of the network.
  • Page 16 Setting up Connecting with your devices (continued) VCR/DVD/ Blu-ray Disc player 12V OUTPUT CONTROL B/Cb/Pb R/Cr/Pr COMPUTER IN 1 (OPTION) COMPUTER IN 2 REMOTE CONTROL HDBaseT HDMI 1 DVI-D HDMI 2 NOTE • The HDMI ports of this model are compatible with HDCP (High-band- width Digital Content Protection) and therefore capable of displaying video signals from HDCP compatible DVD players or the like.
  • Page 17 Setting up Connecting with your devices (continued) (Wired) Remote control SDI OUT NETWORK INTERACTIVE INFO 12V OUTPUT CONTROL R/Cr/Pr COMPUTER IN 1 B/Cb/Pb (OPTION) COMPUTER IN 2 REMOTE CONTROL HDBaseT HDMI 1 DVI-D HDMI 2 NOTE • To use a wired remote control, connect a wired remote control to the REMOTE CONTROL port.

  • Page 18: Using The Security Slot

    Setting up Using the security slot This product has the security slot for the Kensington lock. For details, see the manual of the security tool. Security slot WARNING ►Do not use the security slot to prevent the projector from falling down, since it is not designed for it. CAUTION ►Do not put a cable of the Kensington lock near a ventilation outlet to prevent it from getting hot.

  • Page 19: Installation Of The Projector

    Setting up Installation of the projector 1. Installing the projector towards the screen Screen 2. Removing the mount cap on the projector 3. Selecting the correct input voltage depending on your area Select 200-240V Select 100-130V 4. Connecting the power cord to the projector Be sure that the power cord is not damaged and already connected to the power outlet properly.
  • Page 20 Setting up 5. Connecting the projector to your PC and switching to “‫ ”׀‬to turn on the power POWER indicator turns to red, which means the projector is in standby mode. HDBaseT 12V OUTPUT CONTROL B/Cb/Pb R/Cr/Pr COMPUTER IN 1 (OPTION) COMPUTER IN 2 REMOTE...

  • Page 21: Remote Control

    Remote control Remote control Installing the batteries Insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.

  • Page 22: Using The Remote Id Function

    Remote control Using the REMOTE ID function Use this function to control specific projectors by the remote control assigned the same ID number when you use multiple projectors of the same type at the same time. Assign an ID number to each projector before using the REMOTE ID item in the SERVICE menu of the OPTION menu (61).

  • Page 23: About The Remote Control Signal

    Remote control About the remote control signal The remote control works with the projector’s remote sensor. This projector has two remote sensors on the front and back sides. 30° The sensors can sense signals within the following range: 30 degrees (15 degrees to the 30°...

  • Page 24: Power On/Off

    Power on/off Power on/off Turning on the power Press the button on the projector or the ON button on the remote control to start up the projector. LENS 12V OUTPUT CONTROL R/Cr/Pr COMPUTER IN 1 INPUT AUTO ASPECT BLANK B/Cb/Pb CENTERING (OPTION) COMPUTER IN 2...

  • Page 25: Operating

    Operating Operating Selecting an input signal Press the INPUT button on the projector. Select a desirable input referring to the displayed input list. Even if you press the button for an input port which is not supported, input source list is displayed like when pressing the INPUT button. LENS 12V OUTPUT CONTROL...

  • Page 26: Selecting An Aspect Ratio

    Operating Selecting an aspect ratio Press ASPECT button on the projector or on the remote control. Each time you press the button, the projector switches the mode for aspect ratio in turn. ASPECT button NETWORK INTERACTIVE INFO LENS 12V OUTPUT INPUT AUTO ASPECT...

  • Page 27: Adjusting The Projector's Angle, Lens Shift, Zoom, Lens Centering, And Focus

    Operating Adjusting the projector's angle, Lens Shift, Zoom, Lens Centering, and Focus 1. Use the adjustable feet to change the angle of the projector in order to achieve the most suitable angle for projection on the screen. 2. Adjusting the lens by horizontal and vertical lens shift, and adjust Zoom and Focus of lens.
  • Page 28 Operating NOTE • Adjust the lens shift / zoom / focus 30 minutes after turning on the projector. • Slight changes in the image position and/or focus may occur within 30 minutes after turning on the projector. If the room temperature and humidity have changed after adjusting the lens shift / zoom / focus, readjust as necessary.
  • Page 29 Operating Moving the lens horizontally The distance of horizontal lens shift is 10% of the screen width in both directions. For instance, if you are using a 2.15m × 1.35m(100") screen, you will be able to move the picture to the right or the left up to 21.5cm. H: Range of Horizontal lens shift adjustment This illustration shows normal horizontal lens shift without using special specifi cation lens or projector.

  • Page 30: Using The Automatic Adjustment Feature

    Operating Using the automatic adjustment feature Adjusts the signal synchronization automatically. LENS 12V OUTPUT INPUT AUTO ASPECT BLANK CONTROL B/Cb/Pb R/Cr/Pr COMPUTER IN 1 CENTERING (OPTION) COMPUTER IN 2 LENS FOCUS ZOOM MENU EXIT SHIFT REMOTE CONTROL HDBaseT HDMI 1 DVI-D HDMI 2 NOTE...

  • Page 31: Correcting The Distortion

    Operating Correcting the distortion MYBUTTON INPUT To correct the distortion of projected screen, you can select one of three options, KEYSTONE, PERFECT FIT, and WARPING. First press the GEOMETRY button ASPECT PbyP AUTO FREEZE to display the GEOMETRY CORRECTION menu, and point at one of the items MAGNIFY FOCUS ZOOM...
  • Page 32 Operating Correcting the distortion (continued)  PERFECT FIT: When PERFECT FIT is pointed at, pressing the ► or ENTER button displays the PERFECT FIT dialog. This projector is equipped with a test pattern for PERFECT FIT. Select PATTERN with the ▲/▼ buttons, then press the ◄/► buttons to switch on and off.
  • Page 33 PC and projector are required to be connected with LAN cable in order to use this function. You can get the PC tool from the URL below. DUKANE CORP AV SERVICE DEPT 2900 Dukane Drive St Charles, IL 60174 800-676-2487 / 630-762-4032 Fax 630-584-5156 avservice@dukane.com...

  • Page 34: Using The Edge Blending Features

    Operating Using the EDGE BLENDING features 1. MODE (MANUAL) OFF: Disables the Blending function. ON: Allows you to adjust Blending Region or Blending Level by using menu. 2. BLENDING LEVEL [1-25] can be selected with ◄/► buttons. Adjust the brightness of Blending Region according to the settings. 3.
  • Page 35 Operating 4. CROPPING When inputting the same image to each projector, Cropping function enables projector to cut out a part of input image and display one image on a large screen. The following patterns are supported. 2 x 2 2 x 1 1 x 2 4.1 Displaying Cropping Menu Select CROPPING with ▲/▼...
  • Page 36 Operating 4.3 Adjusting Cropping Area Adjust Cropping Area when cutting out a part of input image. Press ENTER button and then press ◄ button to select SETUP, and MODE switches to ON automatically. Input Image Cropping 4.4 Adjusting Cropping Area of the other projector. Set Cropping Area of the other projector with the same value as one projector.
  • Page 37 Operating 5. DIMMING LEVEL Adjusts the brightness of the projectors which are using Blending. Using the ◄/► buttons to adjust the dimming level. 6. WHITE BALANCE Adjusts the white balance of the whole screen. 6.1 OFFSET OFFSET adjustments change the color intensity on the whole tones. 6.2 GAIN GAIN adjustments mainly affect color intensity on the brighter tones.

  • Page 38: Using The Magnify Feature

    Operating Using the magnify feature Press the MAGNIFY ON button on the remote control. The picture will be magnified, and the MAGNIFY dialog will appear on the screen. When the MAGNIFY ON button is pressed for the first time MAGNIFY ON/OFF after the projector is turned on, the picture will button...

  • Page 39: Temporarily Freezing The Screen

    Operating Temporarily freezing the screen Press the FREEZE button on the remote control. The “FREEZE” indication will appear on the screen (however, the indication will not appear when SILENT or INHIBIT is selected for the OSD MESSAGE item in the SETUP (56)), and the projector will go into the FREEZE mode, which the picture is frozen.

  • Page 40: Pbyp (Picture By Picture)

    Operating PbyP (Picture by Picture) / PinP (Picture in Picture) The PbyP / PinP is a function for displaying two different picture signals on a screen that is separated into main and sub areas for each signal. Press the PbyP button on the remote control. This activates the PbyP / PinP mode.
  • Page 41 Operating PbyP (Picture by Picture) / PinP (Picture in Picture) (continued)  Setting information The setting information will be appeared for several seconds when the PbyP / PinP function is started. Displays the input information for each area. A frame around the main area will be displayed.
  • Page 42 Operating PbyP (Picture by Picture) / PinP(Picture in Picture) (continued)  Changing the picture input signal Press any button to select an input port on the remote control or press the INPUT button on the control panel. A dialog box to select the input signal for the main area will be displayed.
  • Page 43 Operating PbyP (Picture by Picture) / PinP (Picture in Picture) (continued)  PbyP / PinP SWAP function Press the MY BUTTON assigned the PbyP / PinP SWAP (59). The position of the both area is exchanged without any setting change. NOTE •...

  • Page 44: Using The Menu Function

    Operating Using the menu function This projector has the following menus: PICTURE, IMAGE, INPUT, SETUP, SCREEN, OPTION, NETWORK, and EASY MENU. EASY MENU consists of functions often used, and the other menus are classified into each purpose and brought together as the ADVANCED MENU. Each of these menus is operated using the same methods.

  • Page 45: Indication In Osd

    Operating Using the menu function (continued) To close the MENU, press the MENU button again or select EXIT and press the ◄ cursor button or ENTER button. Even if you do not do anything, the dialog will automatically disappear after about 30 seconds. NOTE •...

  • Page 46: Containing Items Of Each Menu

    Operating Using the menu function (continued) Containing items of each menu The items contained in the menus are as below; Menu Items ASPECT, KEYSTONE, PERFECT FIT, PICTURE MODE, EASY MENU (47) ECO MODE, INSTALLATION, RESET, LANGUAGE, ADVANCED MENU, EXIT BRIGHTNESS, CONTRAST, COLOR, TINT, SHARPNESS, PICTURE(48) DYNAMIC BLACK, PICTURE QUALITY, MY MEMORY ASPECT, OVER SCAN, V POSITION, H POSITION, H PHASE,...

  • Page 47: Easy Menu

    EASY MENU EASY MENU Item Description Switches the mode for aspect ratio. ASPECT See the ASPECT item in IMAGE menu (52). See the KEYSTONE item in GEOMETRY CORRECTION of SETUP KEYSTONE menu (54). See the PERFECT FIT item in GEOMETRY CORRECTION of PERFECT FIT SETUP menu (54).

  • Page 48: Picture Menu

    PICTURE menu PICTURE menu Item Description Adjusts the brightness. BRIGHTNESS Adjusts the contrast. CONTRAST Adjusts the strength of whole color. COLOR Adjusts the tint. TINT Adjusts the sharpness. SHARPNESS • There may be some noise and/or the screen may flicker for a moment when an adjustment is made.
  • Page 49 PICTURE menu Item Description Selecting this item displays the PICTURE QUALITY menu. PICTURE MODE STANDARD ó NATURAL ó CINEMA ó DYNAMIC   USER-3 ó USER-2 ó USER-1 ó DICOM SIM. STANDARD: For displaying general images NATURAL: For displaying an image conforming to sRGB CINEMA: For displaying cinema image DYNAMIC: For enjoying sharp images PICTURE...
  • Page 50 PICTURE menu Item Description COLOR TEMP This feature is only available when USER-1 / USER-2 / USER-3 of PICTURE MODE is selected. 5400K ó CUSTOM-1 ó 6500K ó CUSTOM-2   CUSTOM-5 7500K PICTURE   QUALITY NATIVE ó CUSTOM-4 ó 9300K ó CUSTOM-3 (continued) Selecting a mode whose name includes CUSTOM and then pressing the ►...
  • Page 51 PICTURE menu Item Description ACCENTUALIZER ACCENTUALIZER is a function to improve the legibility. Using the ◄/► buttons adjusts the sharpness. Weak ó Strong • There may be some noise and/or the screen may flicker for a PICTURE moment when an adjustment is made. This is not a malfunction. QUALITY HDCR (continued)

  • Page 52: Image Menu

    IMAGE menu IMAGE menu Item Description Switches the mode for aspect ratio. NORMAL ó 4:3 ó 16:9 ó 16:10 ó ZOOM ó NATIVE ASPECT If there is no signal 16:10 (fixed) • The NORMAL mode keeps the original aspect ratio of the signal. Switches the OVER SCAN mode.

  • Page 53: Input Menu

    INPUT menu INPUT menu Item Description Adjusts the noise reduction level. NOISE REDUCTION HIGH ó LOW Switches the mode for color space. COLOR SPACE AUTO ó REC709 ó REC601 ó RGB PC ó RGB VIDEO Switches on/off of PbyP/PinP. PbyP / PinP This function is unavailable when EDGE BLENDING is set to ON or 3D display is enabled.

  • Page 54: Setup Menu

    SETUP menu SETUP menu Item Description KEYSTONE Selecting this item displays the KEYSTONE dialog. For details, see KEYSTONE in Correcting the distortion( • When the zoom adjustment is set to the TELE (telephoto focus), this function may be excessive. This function should be used when the zoom adjustment is set to the full WIDE (wide-angle focus) whenever possible.
  • Page 55 SETUP menu Item Description Switches the Eco mode. NORMAL ó ECO ó CUSTOM ECO MODE • When the item other than NORMAL is selected, acoustic noise and screen brightness are reduced. Adjusts the brightness of the light source when ECO MODE is set CUSTOM POWER to CUSTOM.
  • Page 56 SETUP menu Item Description Switches the standby mode setting. NORMAL ó SAVING • When SAVING is selected, the RS-232C communication control except to turn the projector on and the network function are disabled STANDBY MODE while the projector is in the standby mode. •...

  • Page 57: Screen Menu

    SCREEN menu SCREEN menu Item Description LANGUAGE Switches the OSD (On Screen Display) language. MENU POSITION Switches the menu position. Switches the mode for the start-up screen. The start-up screen is a screen displayed when no signal or an unsuitable signal is detected. START UP ORIGINAL ó...

  • Page 58: Option Menu

    OPTION menu OPTION menu Item Description Turns on/off the automatic signal search function. ON ó OFF When the ON is selected, detecting no signal automatically cycles through input ports in the following order. The search is started from AUTO SEARCH the current port.
  • Page 59 OPTION menu Item Description This item is to assign one of the following functions to MY BUTTON (1 to 4) on the remote control (7). (1) Select a button from MY BUTTON - 1 to 4 and press the ► or ENTER button to display the MY BUTTON setup dialog.
  • Page 60 OPTION menu Item Description ALTITUDE Switches the rotation speed of the cooling fans. It is recommended to leave it at AUTO. AUTO: The projector changes the rotation speed automatically to suit the altitude and other environmental factors. Choose an option below when there is a trouble with the AUTO mode. NORMAL-1: This mode can be used below 610m (2000ft.).
  • Page 61 OPTION menu Item Description INFRARED REMOTE Turns on/off the Infrared sensor. Wired remote operates regardless of this item. REMOTE ID Select ID and press the ► button. ALL ó 1 ó 2 ó 3 ó 4 The projector is controlled by the remote control whose ID button is set the same number as this number.

  • Page 62: Network Menu

    NETWORK menu NETWORK menu Remember that incorrect network settings on this projector may cause trouble on the network. Be sure to consult with your network administrator before connecting to an existing access point on your network. NOTE • The network function is not available when STANDBY MODE is set to SAVING and the projector is in standby mode.
  • Page 63 NETWORK menu Item Description Configures wired network. NOTE ・ Setting values are not saved if Menu disappears before selecting APPLY. ・ Execute APPLY after changing the settings. Switches on/off of DHCP. When DHCP is on, an IP address is obtained DHCP automatically.
  • Page 64 NETWORK menu Item Description Turns on/off the AMX Device Discovery. ON ó OFF AMX D.D. When ON is selected, the projector can be detected by controllers of AMX connected to the same network. (AMX Device For the details of AMX Device Discovery, visit the AMX Discovery) web site.

  • Page 65: Web Control

    Web Control Web Control You can adjust or control the projector via a network from a web browser on a computer connected to the same network. ■Projector Web Control You can control the projector, collect the status such as laser time, and set e-mail or schedule, etc.
  • Page 66 Web Control NOTE • Crestron e-Control is created using Flash . You need to install ® ® Adobe Flash Player on your computer to use Crestron e-Control . Crestron ® ® ® e-Control is not displayed in a web browser that does not support Flash ®...

  • Page 67: Maintenance

    Maintenance Maintenance If you find something abnormal with the light source, contact your dealer or service company. Cleaning the ventilation inlet It is recommended to check and clean the ventilation inlet periodically for maintaining the ventilation inside of the projector and normal operation. If a message prompts you to clean or check the ventilation inlet, or if the TEMP.

  • Page 68: Other Care

    Maintenance Other care Inside of the projector In order to ensure the safe use of your projector, have it cleaned and inspected by your dealer about once every year. Caring for the lens If the lens is flawed, soiled or fogged, it could cause deterioration of display quality.
  • Page 69 Maintenance Caring for the cabinet and remote control Incorrect care could have adverse influence such as discoloration, peeling paint, etc. Turn the projector off, and unplug the power cord. Allow the projector to cool sufficiently. After making sure that the projector is cool adequately, lightly wipe with gauze or a soft cloth.

  • Page 70: Troubleshooting

    Troubleshooting Troubleshooting If an abnormal operation should occur, stop using the projector immediately. WARNING ►Never use the projector if abnormal operations such as Troubleshooting smoke, strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. In such cases, immediately disconnect the power plug from the power outlet.

  • Page 71: Regarding The Indicator

    Troubleshooting Troubleshooting Regarding the indicator POWER LED LED Display Projector Status Procedure Power is off Wait until projector starts Green Projector warming up displaying. Flashing Wait until cooling finishes. Orange Projector cooling ( ~ 125 sec.) Standby mode Green Projector is on STATUS LED LED Display Projector Status...

  • Page 72: Resetting All Settings

    Troubleshooting Regarding the indicator (continued) LIGHT LED LED Display Projector Status Procedure Laser is off Green Prepare to light laser Flashing Red (Cycles of 6) Laser lit fail Laser is end-of-life Green Laser is on TEMP. LED LED Display Projector Status Procedure No Problem If the problem occurs...

  • Page 73: Phenomena That May Be Easy To Be Mistaken For Machine Defects

    Troubleshooting Phenomena that may be easy to be mistaken for machine defects About the phenomenon confused with a machine defect, check and cope with it according to the following table. Reference Phenomenon Cases not involving a machine defect page The power switch is set to " ○ ". Flip the switch to " ｜ ". The electrical power cord is not plugged in.
  • Page 74 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The batteries in the remote control are near the end. Replace the batteries. The ID numbers set in the projector and the remote The remote control are different.
  • Page 75 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page Flicker may appear on screen Switch the light source ON and OFF, or try to switch the 24, 55 Some kind ECO MODE once from NORMAL to ECO.
  • Page 76 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The SAVING function is working. The IR and RS-232C does Select NORMAL for STANDBY MODE item in the not work on SETUP menu.
  • Page 77 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page Check the LAN cable if it is CAT5e certified or higher. – Try to change the LAN cable. –...
  • Page 78 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page Disconnect the LAN cable and check that the When the projector is working properly. projector is If this phenomenon occurs after connecting to the connected to network, there may be a loop between two Ethernet the network, it...

  • Page 79: Specifications

    Specifications Specifications Description Specifications Resolution 1920 × 1200 (Native) Micro display 1 x 0.67" WUXGA DMD Laser Diode: Light source Green and Red by laser phosphor Blue by diffuse laser FL-920 (0.38 : 1 100-350inch) SL-902 (1.1~1.7 : 1 50-600inch) Projection lens - SD-903 (1.6~2.4 : 1 50-600inch) projection ratio...
  • Page 80 Specifications Specifications (continued) Description Specifications 0~45°C Sea level Mode: 0 to 4000ft. 0 ~36℃ (100% LD power) 37~40℃ (80% LD power) 41~45℃ (70% LD power) High Altitude Mode1: 4000 to 5500ft. 0 ~30℃ (100% LD power) 31~36℃ (90% LD power) 37~40℃...
  • Page 81 • Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other countries and areas. All other trademarks are the properties of their respective owners. DUKANE CORP AV SERVICE DEPT 2900 Dukane Drive St Charles, IL 60174...
