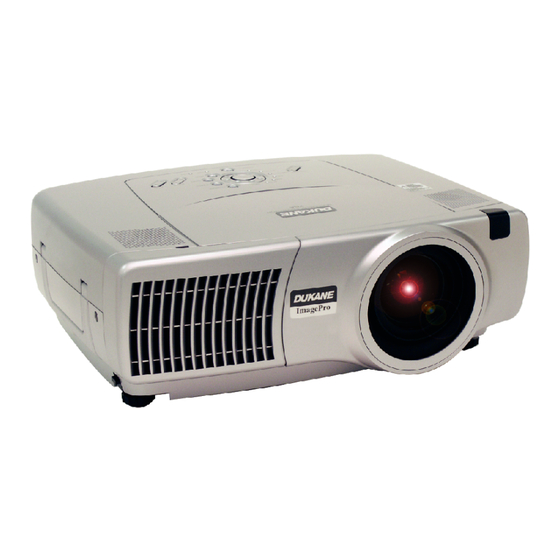

- Page 1 Portable LCD Projector Models 9135 USER'S MANUAL 401-9135-00...
- Page 3 9135 User's Manual - Operating Guide User's Manual - Operating Guide Thank you for purchasing this projector. NOTE • The information in this manual is subject to change without notice. • The manufacturer assumes no responsibility for any errors that may appear in this manual.
-
Page 4: Projector Features
Quick correction of distorted images electrically. ● Optical Lens Shift The lens of this projector can be shifted vertically. When you want to finely adjust the picture position, use the LENS SHIFT buttons. NOTE • Keep the original packing materials for future reshipment. For moving the projector, be... -
Page 5: Table Of Contents
Content Projector Features … … … … … … … … … … … … … … 2 Preparation … … … … … … … … … … … … … … … … … … … … 2 Part Names …... -
Page 6: Part Names
Part Names Part Names Projector Projector (Front/Right) Projector (Rear/Left) Elevator button Elevator foot Remote sensor Lens cap Lens The picture is projected from here. Filter cover An air filter is inside. RGB port M1-D port BNC port AUDIO IN 1 port... -
Page 7: Control Buttons
Part Names (continued) Part Names (continued) Control Buttons Control Panel on the Projector Remote Control STANDBY/ON button LENS SHIFT buttons SEARCH button ZOOM buttons FOCUS buttons KEYSTONE button MENU button RESET button ENTER button Mouse left button) (Rear) Cursor buttons... -
Page 8: Setting Up
Setting Up Setting Up Arrangement WARNING • Before installation, make sure that the projector is turned off and the power code is disconnected. • Do not set up and move the projector, while it is hot. • Install the projector in a suitable environment according to instructions of the “User’s Manual –... -
Page 9: Adjusting The Projector's Elevator
You can use the elevator feet to make adjustments if the surface on which you need to set the projector is uneven or if you otherwise need to adjust the angle of projection. The adjustment range of the elevator feet is 0 to 9 degrees. -
Page 10: Connecting Your Devices
• Some cables have to be used with core set. Use the accessory cable or a designated-type cable for the connection. For cables that have a core only at one end, connect the core to the projector. • Secure the screws on the connectors and tighten. -
Page 11: Examples Of Connection With A Computer
Setting Up (continued) Setting Up (continued) Please refer to the following (for example) for connecting your devices. See the rear of the projector. You can see the ports. Examples of connection with a computer Computer RGB out RGB cable Audio out... - Page 12 ■ If using a component signal Y out Audio out (R) Audio out (L) ■ If using a SCART RGB input SCART RGB out SCART adapter Projector AUDIO IN1 R-AUDIO IN-L VIDEO R-AUDIO IN AUDIO IN2 AUDIO IN-L VIDEO IN S -VIDEO AUDIO IN1...
-
Page 13: Connecting The Power Supply
• Only plug the power cord into outlets rated for use with the power cord’s specified voltage range. • Only use the power cord that came with the projector. If it is damaged, contact your dealer to newly get correct one. -
Page 14: Remote Control
Remote Control Remote Control About The Laser Pointer WARNING • The laser pointer of the remote control is used in place of a finger or rod. Never look directly into the laser beam outlet or point the laser beam at other people. -
Page 15: Operating The Remote Control
If it is difficult to send a remote signal to the sensor directly, please try. • Since the remote control uses infrared light to send signals to the projector (Class1 LED), be sure to use the remote control in an area free from obstacles that could block the remote control’s output signal to the projector. -
Page 16: Using The Mouse/Keyboard Control Function
Using the USB control feature, you can use the remote control as a simplified mouse or keyboard of the computer. Connect the M1-D port of the projector to the computer via the M1-D cable. Then functions illustrated below will be enabled. -
Page 17: Power On/Off
WARNING • When the power is ON, a strong light is emitted. Do not look into the lens or vents of the projector. NOTE • Turn the power on/off in right order. Please power on the projector before the connected devices. Power off the projector after the connected devices. Turning On The Power Remove the lens cap. -
Page 18: Operating
Pressing the button automatically cycles through input ports and displays the picture of retrieved signal. If no signal is found or the projector is unstable to memo find an input signal at any of its ports, it will turn to the state it was in prior to the search. -
Page 19: Selecting The Aspect Ratio
Operating (continued) Operating (continued) Selecting The Aspect Ratio Press the Aspect button to toggle between the modes for aspect ratio. ■ For an RGB signal NORMAL NORMAL keeps the original aspect ratio of the input signal. memo ■ For a video signal / no signal 16:9 For a HDTV signal of 1125i(1080i) or 750p(720p), only 16:9 and REAL can be memo... -
Page 20: Adjusting The Picture Position
Operating (continued) Operating (continued) Adjusting The Picture Position This function is not available for M1-D signals. memo Press the POSITION button. As illustrated on the right, a dialog will appear on the screen to aid you in adjusting the position. Use the cursor buttons position. -
Page 21: Adjusting The Volume
Operating (continued) Operating (continued) Adjusting The Volume Press the VOLUME button. As illustrated on the right, a dialog will appear on the screen to aid you in adjusting the volume. Use the cursor buttons adjust the volume. Press the VOLUME button again to close the dialog and complete this operation. -
Page 22: Freezing The Screen
NOTE • If the projector continues projecting the same image for a long time (i.e. you forget to exit FREEZE mode), the image might possibly remain as an afterimage. Do not leave the projector in FREEZE mode for too long. -
Page 23: Displaying The Child Window
Operating (continued) Operating (continued) Displaying The Child Window This feature called "PinP (Picture in Picture)" is available only when a RGB signal is selected memo to main screen. And this feature does not work when UXGA (1600 x 1200) or higher signal is input. Press the PinP button. -
Page 24: Multifunctional Settings
Multifunctional Settings Using The Menu Functions This projector has the following menus: MAIN, PICTURE-1, PICTURE-2, INPUT, AUTO, SCREEN, OPTION and NETWORK. Each of these menus is operated using the same methods. The basic operations of these menus are as follows. -
Page 25: Main Menu
Multifunctional Settings (continued) Multifunctional Settings (continued) MAIN Menu With the MAIN menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below. Item BRIGHT Adjust the brightness using the CONTRAST Adjust the contrast using the Select an aspect ratio using the... -
Page 26: Picture-1 Menu
Multifunctional Settings (continued) Multifunctional Settings (continued) PICTURE-1 Menu With the PICTURE-1 menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below. Item Select a gamma mode using the NORMAL Selecting the CUSTOM and then pressing the the CUSTOM menu. - Page 27 (or the ENTER) button to perform the function.: LOAD1 SAVE1 This projector has 4 numbered memories for adjustment data. MY MEMORY Performing the SAVE1, SAVE2, SAVE3 or SAVE4 puts the current adjustment data on the memory whose number corresponds with the command’s number.
-
Page 28: Picture-2 Menu
Multifunctional Settings (continued) Multifunctional Settings (continued) PICTURE-2 Menu With the PICTURE-2 menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below. memo This menu cannot be selected at a M1-D signal. Item Adjust the vertical position using the V POSITION... -
Page 29: Input Menu
Multifunctional Settings (continued) Multifunctional Settings (continued) INPUT Menu With the INPUT menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below. Item Select a color space mode using the AUTO Selecting the AUTO automatically selects the optimum mode. - Page 30 Select the display position of the child window using the P.IN P. POSIT. memo Window”. Select a signal input port to display just when the projector is turned on, using POWERUP INPUT LAST INPUT Selecting the LAST INPUT selects the port that was used at the last time.
-
Page 31: Auto Menu
Long (max. 99 minutes) POWER OFF When the time is set to 1 to 99, the projector lamp will go off and the STANDBY/ON indicator begins blinking when the passed time with a proper signal (without no-signal and an unsuitable signal) reaches at the set time. - Page 32 S-VIDEO COMPONENT When the TURN ON is selected, pressing the RGB button selects the If no signal is found or the projector is unstable to find an input signal at button to reset the AUTO menu items. : CANCEL buttons. :...
-
Page 33: Screen Menu
Multifunctional Settings (continued) Multifunctional Settings (continued) SCREEN Menu With the SCREEN menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below. Item Select a type of the BLANK screen using the MyScreen The BLANK screen is the screen, which is displayed by pressing the BLANK button. - Page 34 Multifunctional Settings (continued) Multifunctional Settings (continued) SCREEN Menu (continued) Item Select the TURN ON or the TURN OFF using the TURN ON When the TURN ON is selected, the following message function works. The message of the “AUTO IN PROGRESS” for the auto adjustment. The message of the “NO INPUT IS DETECTED”...
-
Page 35: Option Menu
Always at least one sensor is on. Select a number as an ID number for remote control using the The projector is controlled by the remote control whose ID CHANGE switch is IR REMOTE ID set into the position of the same number as this number. When the ALL is selected, the projector is controlled by a remote control irrespective of the position of the ID CHANGE switch. - Page 36 • It is recommended to choose "100h" in general. Please be careful with the operating environment of the projector and the condition of air filter, especially when "200h", "300h" or "TURN OFF" is chosen. button to reset the OPTION menu items. :...
-
Page 37: Network Menu
This menu will be shown only when the DHCP is disabled at the NETWORK menu. The IP Address is identification number of the projector on the Network. 1. Set the IP Address using the memo The same IP Address with other units cannot be used. -
Page 38: Network Setting Up
You can set them using a Web Browser (Internet Explorer 4.0 or higher) on the computer connected to the Network. Input the same IP address as set to the projector onto the Web Browser on the computer connected to LAN. -
Page 39: Lamp
Lamp WARNING The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. -
Page 40: Replacing The Lamp
If the indicators or a message prompts you to replace the lamp, replace the lamp as soon as possible. Turn off the projector, and unplug the power cord. Allow the lamp bulb to cool for at least 45 minutes. Contact your dealer to prepare a new lamp. Tell the dealer your lamp type number. -
Page 41: Air Filter
45 minutes for the lamp to cool sufficiently. • Use only the air filter of the specified type NJ08081. • Do not use the projector with the air filter and filter cover removed. The use without the air filter could result in damage. -
Page 42: Other Care
• Do not polish or wipe with hard objects. Caring For The Inside Of The Projector In order to ensure the safe use of your projector, please have it cleaned and inspected by your local dealer about once every year. -
Page 43: Troubleshooting
This projector is equipped with an automatic shut-down function, such that the power will automatically be turned off when lamp usage time has reached 2000 hours. - Page 44 The internal portion temperature is rising. Please turn the power OFF, and allow the unit to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation of the following items, and then turn the power on again.
-
Page 45: Regarding The Indicator Lamps
In such a case, press the “○” (OFF) side of the main power switch, and wait at least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp cover, and then turn the power on again. - Page 46 Please turn the power off, and allow the unit to cool down at Turned least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp cover, and then turn the power on again.
-
Page 47: Phenomena That May Easily Be Mistaken For Machine Defects
(continued) Phenomena That May Easily Be Mistaken For Machine Defects WARNING • Never use the projector if abnormal operations such as smoke, strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. In such cases, immediately... - Page 48 roubleshooting (continued) roubleshooting (continued) Phenomena That May Easily Be Mistaken For Machine Defects (continued) Phenomenon The signal cables are not correctly connected. Correctly connect the connection cables. The volume is adjusted to an extremely low level. Pictures are Adjust the VOLUME to a higher level. displayed, The sound is muted.
-
Page 49: Warranty And After-Service
Ports Lamp Optional Air filter Parts Others Specification Liquid crystal projector 2.5 cm (0.99 type) TFT active matrix 1,470,000 pixels (1400 horizontal x 1050 vertical) Zoom lens F=1.7 ~ 2.4 f=30.5 ~ 45.8 mm 310W UHB 1.0W + 1.0W (Stereo) AC100 ~ 120V, 5.2A... -
Page 51: Technical
Projector 9135 9135 User's Manual - Operating Guide User's Manual - Operating Guide TECHNICAL Dimensions Dimensions 85.5 (at the bottom of lens position) to 92.99 (at the top of lens position) [unit: mm]... - Page 52 Refer to the number of display pixels above. • Although the projector can display signals with resolution up to UXGA (1600 x 1200), the signal will be converted to the projector’s panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and projector panel are identical.
- Page 53 Initial Set Signals Initial Set Signals The following signals are used for the initial settings. The signal timing of some computer models may be different. In such case, adjust the items V POSITION and H POSITION in the PICTURE-2 menu. Back porch b Display interval c DATA...
-
Page 54: Audio Out
Connection T Connection T 5 4 3 2 1 e w q = - D-Sub 15 pin shrink jack Signal Video input Red Video input Green Video input Blue Ground M1-D iuytrewq=- 654321 M1-D jack Signal T.M.D.S. Data2 + T.M.D.S. Data2 - T.M.D.S. - Page 55 Video output Green Video output Blue Ground REMOTE CONTROL • 3.5 dia. Stereo mini jack • To be connected with the remote control that came with the projector. DC OUT o The Ports (continued) o The Ports (continued) REMOTE CONTROL...
- Page 56 Connection T Connection T CONTROL CONTROL port 1 2 3 4 5 5 4 3 2 1 6 7 8 9 9 8 7 6 D-Sub 9 pin D-Sub 9 pin plug jack About the details of RS-232C communication, please refer to the memo following page.
-
Page 57: Communications Setting
Connecting The Cable Turn off the projector and the computer power supplies. Connect the CONTROL port of the projector with a RS-232C port of the computer by a RS-232C cable. Use the cable that fulfills the specification shown in the previous page. - Page 58 • Provide an interval of at least 40ms between the response code and any other code. • The projector outputs test data when the power supply is switched ON, and when the lamp is lit. Ignore this data. • Commands are not accepted during warm-up.
-
Page 59: Command Data Chart
RS-232C Communication (continued) RS-232C Communication (continued) Command Data Chart Names Operation type Keystone V Increment Decrement Keystone V Reset Execute Keystone H Increment Decrement Keystone H Reset Execute Brightness Increment Decrement Brightness Reset Execute Contrast Increment Decrement Contrast Reset Execute 16:9 SMALL Aspect... - Page 60 RS-232C Communication (continued) RS-232C Communication (continued) Command Data Chart (continued) Names Operation type ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO NORSK NEDERLANDS PORTUGUÊS 日本語 Language SVENSKA SUOMI POLSKI TÜRKÇE NORMAL CINEMA Gamma DYNAMIC CUSTOM Custom Gamma Increment Decrement Custom MIDDLE Color Temp Custom User R Custom User G Header...
- Page 61 RS-232C Communication (continued) RS-232C Communication (continued) Command Data Chart (continued) Names Operation type Custom User B Color Balance R Increment Decrement Color Balance R Execute Reset Color Balance G Increment Decrement Color Balance G Execute Reset Color Balance B Increment Decrement Color Balance B Execute...
- Page 62 RS-232C Communication (continued) RS-232C Communication (continued) Command Data Chart (continued) Names Operation type V Position Increment Decrement V Position Reset Execute H Position Increment Decrement H Position Reset Execute H Phase Increment Decrement H Size Increment Decrement H Size Reset Execute Over Scan Increment...
- Page 63 RS-232C Communication (continued) RS-232C Communication (continued) Command Data Chart (continued) Names Operation type MIDDLE Video NR HIGH Auto Adjust Execute Auto off Increment Decrement TURN OFF Auto Search TURN ON My Screen Original Blue Blank Color White Black TURN OFF Blank on/off TURN ON My Screen...
- Page 64 RS-232C Communication (continued) RS-232C Communication (continued) Command Data Chart (continued) Names Operation type Volume Increment Decrement TURN OFF Mute TURN ON Lamp Time Lamp Time Reset Execute Filter Time Filter Time Reset Execute Magnify Increment Decrement Normal Freeze TURN OFF TURN ON Power Input Source...
- Page 65 RS-232C Communication (continued) RS-232C Communication (continued) Command Data Chart (continued) Names Operation type PinP Size Upper Left Upper Right PinP Position Bottom Left Bottom Right PinP Audio Ch PinP Input S-Video Myscreen Lock IR Remote Front IR Remote Rear IR Remote Top Header BE EF 06 00...
- Page 66 RS-232C Communication (continued) RS-232C Communication (continued) Command Data Chart (continued) Names Operation type Power Up Source Auto Adjust Enable Internal Speaker Lens Lock Remote ID Lens Header Last Ch BE EF 06 00 M1-D BE EF 06 00 BE EF 06 00 BE EF 06 00...
- Page 68 2900 Dukane Drive Toll-free: 800-676-2487 St. Charles, Illinois 60174 Fax: 630-584-5156 www.dukcorp.com/av e-mail: avsales@dukcorp.com Audio Visual Products #401-9135-00...
