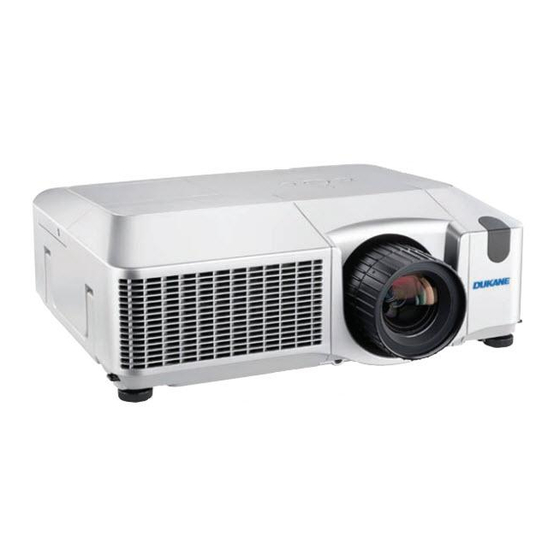

Lcd data video projector
Hide thumbs Also See for 9137WU-RJ:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Technical Manual, User Manual
LCD Data Video Projector
Concise User's Manual
Information in this Guide may change due to product improvements. To obtain the latest
manuals, literature, and software please visit the Dukane web site at; www.dukane.com/av
and look at the specific model SUPPORT or DOWNLOADS section.
DUKANE CORP AV SERVICE DEPT
2900 Dukane Drive
St Charles, IL 60174
800-676-2487 / 630-762-4032
Fax 630-584-5156
avservice@dukane.com
www.dukane.com/av
MODEL 9137WU-RJ
403-9137WU-RJ- Concise-00

Advertisement

Table of Contents
loading

Related Manuals for Dukane 9137WU-RJ

Summary of Contents for Dukane 9137WU-RJ

  • Page 1 Information in this Guide may change due to product improvements. To obtain the latest ion that brings you the following main features. manuals, literature, and software please visit the Dukane web site at; www.dukane.com/av and look at the specific model SUPPORT or DOWNLOADS section.

  • Page 3: Table Of Contents

    Projector 9137WU-RJ User's Manual (concise) Thank you for purchasing this projector. WARNING ►Before using this product, be sure to read all manuals for this product. See “Using the CD manual” ( 13 ) to read the manuals in the CD. After reading them, store them in a safe place for future reference.

  • Page 4: First Of All

    First of all Entries and graphical symbols explanation The following entries and graphical symbols are used for the manuals and the product as follows, for safety purpose. Please know their meanings beforehand, and heed them. WARNING This entry warns of a risk of serious personal injury or even death. CAUTION This entry warns of a risk of personal injury or physical damage.

  • Page 5: Arrangement

    Arrangement Please arrange the projector and the screen. Install the projector in a stable, cool and airy place, keeping a space of 30 cm or more between the sides of the projector and other objects such as walls. Avoid the projector from a hot, humid, dusty, or smoky place.

  • Page 6: Connecting Your Devices

    Connecting your devices Before connecting devices, please read the manuals for all the devices that you want to connect with this projector, to make sure that the connection is proper and prepare the connectors needed. And connect them properly according to the manuals. AUDIO OUT RGB OUT AUDIO OUT...

  • Page 7: Connecting Power Supply

    Connecting power supply 1. Connect the connector of the power cord to the AC IN (AC inlet) of the projector. 2. Firmly plug the power cor 's plug into the outlet. Connector of the AC IN power cord to the outlet WARNING ►Please use extra caution when connecting the power cord, as incorrect or faulty connections may result in fire and/or electrical shock.

  • Page 8: Adjusting The Projector's Elevator

    Adjusting the projector's elevator Use the elevator feet to place the projector horizontally. Using the feet can also tilt the projector in order to project at a suitable angle to the screen, elevating 10° the front side of the projector within 10 degrees. This projector has 2 elevator feet and 2 elevator knobs.

  • Page 9: Putting Batteries

    Remote control (continued) Putting batteries Please load the batteries before using the remote control. 1. Slide back and remove the battery cover. 2. Put the two AA batteries ( HITACHI MAXELL, Part No.LR6 or R6P ) into the holder, according to the polarity markings ( + ) and ( - ) on the holder. 3.

  • Page 10: Displaying The Picture

    Displaying the picture ASPECT INPUT button button 1. Make sure that the signal source is sending the signal to the projector. LASER INDICATOR STANDBY/ON VIDEO MY SOURCE/ DOC.CAMERA SEARCH 2. Use the VOLUME +/- buttons to adjust the volume. To have BLANK LASER the projector silent, press the MUTE button on the remote...

  • Page 11: Lamp

    Lamp A lamp has finite product life. Using the lamp for long periods of time could cause the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. Preparation of a new lamp and early replacement are recommended.

  • Page 12: Lamp Warning

    Lamp (continued) Lamp warning HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE WARNING ►The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them.

  • Page 13: Air Filter

    Air filter Please check and clean the air filter periodically. When the indicators or a message prompts you to clean the air filter, comply with it as soon as possible. The air filter has two kinds of filters inside. Replace the filters when they are damaged or too soiled. To prepare the new filters, make contact with your dealer and tell the following type number.

  • Page 14: Internal Clock Battery

    Internal clock battery Consumption of the battery makes the clock not to work correctly. When the clock is wrong or it has stopped, please replace the battery according to the following procedures. 1. Turn the projector off, and unplug the power cord. Allow the projector to cool suffi ciently.

  • Page 15: Using The Cd Manual

    Using the CD manual The other manuals for this product are written into the included CD-ROM titled “ User’s Manual (detailed) ”. Before using the CD-ROM, please read the following to ensure the proper use. System requirements The system for using the CD-ROM requires the following. ®...

  • Page 16: Regulatory Notices

    Regulatory notices About Electro-Magnetic Interference This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts.

  • Page 17: About Waste Electrical And Electronic Equipment

    Regulatory notices (continued) About Waste Electrical and Electronic Equipment The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries or accumulators as unsorted municipal waste, but use the return and collection systems available.

  • Page 18: Specifications

    Specifications Item Specifications Product name Liquid crystal projector Liquid Crystal Panel 2,304,000 pixels (1920 horizontal x 1200 vertical) Lamp 275 W UHB Audio output 4 W x 2 Power supply AC 100-120 V / 5.0 A, AC 220-240 V / 2.1 A Power consumption 460 W Temperature range...

  • Page 19: Warranty And After-Service

    If this does not resolve the problem, please consult your dealer or service company. They will tell you what warranty condition is applied. Please check the following web address where you may find the latest information for this projector. http:www.dukane.com/av NOTE • The information in this manual is subject to change without notice.
  • Page 20 DUKANE CORP AV SERVICE DEPT ) Display 2900 Dukane Drive St Charles, IL 60174 ges that are transferred via the network.
