I
A
I
A
I
E
E
E
8
0
2
.
1
1
I
E
E
E
8
0
2
.
1
1
U
s
U
s
R
-
1
2
0
s
e
r
i
e
R
-
1
2
0
s
e
r
i
e
b
/
g
A
c
c
e
s
s
P
b
/
g
A
c
c
e
s
s
P
e
r
'
s
M
a
n
u
e
r
'
s
M
a
n
u
V
e
r
s
i
o
n
1
.
2
V
e
r
s
i
o
n
1
.
2
M
a
r
c
h
,
2
0
1
1
M
a
r
c
h
,
2
0
1
1
s
s
o
i
n
t
R
o
u
t
e
r
o
i
n
t
R
o
u
t
e
r
a
l
a
l
w
w
w
.
o
r
i
n
g
-
n
e
t
w
o
r
k
w
w
w
.
o
r
i
n
g
-
n
e
t
w
o
r
k
i
n
g
.
c
o
m
i
n
g
.
c
o
m
Advertisement
Table of Contents
Related Manuals for ORiNG iar-120 series

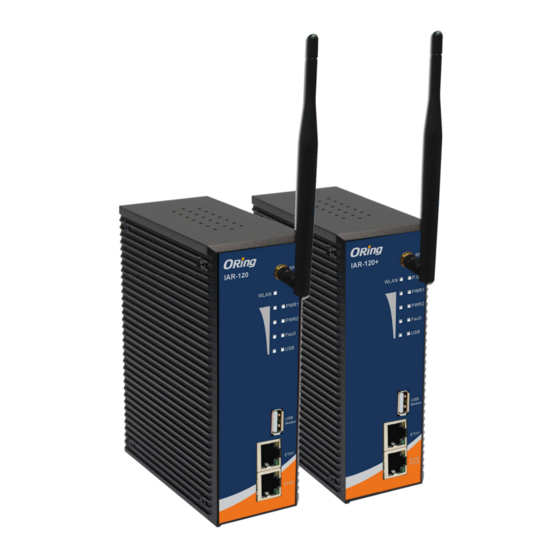

Summary of Contents for ORiNG iar-120 series

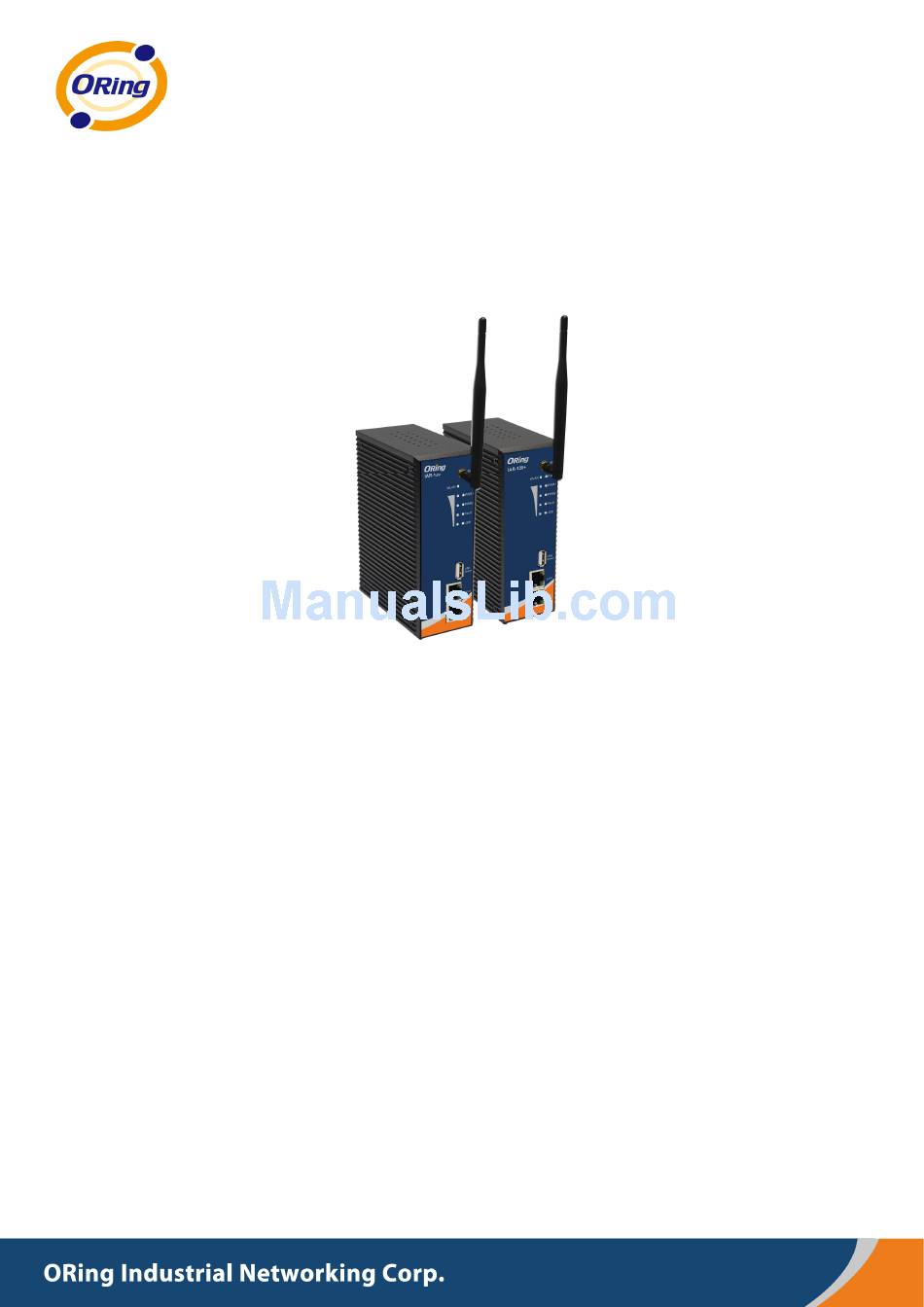

- Page 1 ’ ’...
-
Page 2: Copyright Notice
Please refer to the Technical Specifications section for more details. WARRANTY ORing warrants that all ORing products are free from defects in material and workmanship for a specified warranty period from the invoice date (5 years for most products). ORing will repair or replace products found by ORing to be defective within this warranty period, with shipment expenses apportioned by ORing and the distributor. -
Page 3: Table Of Contents
Tables of Content Getting to Know your Wireless AP Router ..........1 Overview ..........................1 Software Features ......................1 Hardware Features ......................2 Hardware Installation ..................3 Installation Router on DIN-Rail ..................3 Wall Mounting Installation ....................4 Hardware Overview ..................6 Front Panel .......................... - Page 4 Firmware Upgrade ........................51 Save/Restore Configurations ....................52 Miscellaneous (Ping) ........................ 53 5.3.4 System Status ........................54 System Info ..........................54 System Log ..........................54 Traffic Statistics ........................55 Wired/Wireless Clients ......................55 Technical Specifications ................56...
-
Page 5: Getting To Know Your Wireless Ap Router
54Mbps. It is easy for you to extend the reach and number of computers connected to your wireless network. With the USB 3G WAN connection, the ORing IAR-120 / 120+ wireless AP router can be mounted in harsh environment easily to provide internet access anytime and anywhere. -
Page 6: Hardware Features
Redundant Power Inputs: 12~48 VDC on terminal block Casing: IP-30 Dimensions(W x D x H) : 52 mm(W)x 106.1 mm(D)x 144.3 mm(H) Operating Temperature: -10 to 55 Storage Temperature: -40 to 85 Operating Humidity: 5% to 95%, non-condensing ORing Industrial Networking Corp. -
Page 7: Hardware Installation
Each Wireless AP router has a DIN-Rail kit on rear panel. The DIN-Rail kit helps AP router to fix on the DIN-Rail. Step 1: Slant the router and mount the metal spring to DIN-Rail. Metal Spring Step 2: Push the router toward the DIN-Rail until you heard a “click” sound. ORing Industrial Networking Corp……………………………………………………………….…3... -
Page 8: Wall Mounting Installation
The following steps show how to mount the AP router on the wall: Step 1: Remove DIN-Rail kit. Step 2: Use 6 screws that can be found in the package to combine the wall mount panel. Just like the picture shows below: ORing Industrial Networking Corp. - Page 9 IAR-120 / 120+ User’s Manual The screws specification shows in the following two pictures. In order to prevent the AP routers from any damage, the screws should not larger than the size that used in IAR-120 / 120+. Pozidrive ORing Industrial Networking Corp……………………………………………………………….…5...
-
Page 10: Hardware Overview
ETH2 (WAN port) of IAR-120+ compliant with IEEE802.3af P.O.E. P.O.E. PD Port specifications and can be connected to P.O.E. switches.* ANT. Reversed SMA connector for external antenna. *Note: Please refer to the products of ORing IPS series for P.O.E. Ethernet switch. ORing Industrial Networking Corp. - Page 11 (IAR-120+ contains PD function of P.O.E. at ETH2) LED for Ethernet ports status. LED for WLAN link/act status. LED for WLAN signal strength. USB port for 3G USB modem connection. 11. LED for USB modem status ORing Industrial Networking Corp……………………………………………………………….…7...
-
Page 12: Front Panel Leds
Strength 4<100% Modem Ready Green Status Blinking Checking Modem status 10/100Base-T(X) Fast Ethernet ports Port link up at 10Mbps. 10Mbps Amber LNK/ACT Blinking Data transmitted. 100Mbps Port link up at 100Mbps. Green LNK/ACT Blinking Data transmitted. ORing Industrial Networking Corp. -
Page 13: Bottom Panel
2. Reset button. Push the bottom 3 seconds for reset; 5 seconds for factory default. PWR1, PWR2 (12-48V DC) and Reset Button Relay output (1A@24VDC). Rear Panel The rear panel components of IAR-120 / 120+ are shown as below: 1. Screw holes for wall mount kit. 2. DIN-Rail kit ORing Industrial Networking Corp……………………………………………………………….…9... -
Page 14: Cables And Antenna
Not used The IAR-120 / 120+ routers support auto MDI/MDI-X operation. You can use a straight-through cable to connect PC and router. The following table below shows the 10BASE-T/ 100BASE-TX MDI and MDI-X port pin outs. ORing Industrial Networking Corp. -
Page 15: Wireless Antenna
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair. Wireless Antenna A 2.4GHz antenna is used for IAR-120 / 120+ and connected with a reversed SMA connector. External antenna also can be applied with this connector. ORing Industrial Networking Corp……………………………………………………………….…11... -
Page 16: Management Interface
The default gateway IP of IAR-120 / 120+ AP router is 192.168.10.1. Start the web browser of your computer and type http://192.168.10.1 in the address box to access the webpage. A login window will popup, and then enter the default login name admin and ORing Industrial Networking Corp. - Page 17 (HUAWEI E220 is supported). WAN connection type Step 5: Protect the wireless access in encryption mode Click the Wireless in Basic Setting menu, default encryption mode is None, choose WEP/WPA to enhance the security of wireless connection. ORing Industrial Networking Corp……………………………………………………………….…13...
- Page 18 Step 6: Review the router settings and check router status Click the System Status in the top of the menu, the system info page will be shown. You can check all the configuration and status of the router. System status Screen ORing Industrial Networking Corp.
-
Page 19: Configure The Wireless Router
Login screen For security reasons, we strongly recommend you to change the password. Click on System Tools > Login Setting and change the password. Main Interface The Home screen will be shown when login successfully. Main Interface ORing Industrial Networking Corp……………………………………………………………….…15... -
Page 20: Basic Setting
Select this option if you would like to have an IP address assigned automatically automatically from the WAN port by DHCP server in your network. Use the following IP Select this option if you would like to assign an IP address to the ORing Industrial Networking Corp. - Page 21 Phone Number, User Name and Password: Use these settings to dial up the Modem/3G connection. Ping Test Site: Use this site address to check if the connection is alive or lost. Take www.google.com as an example. ORing Industrial Networking Corp……………………………………………………………….…17...
- Page 22 Auto: Connect automatically when the router boots up. Connect on Demand: Select to disconnect the PPP session if Connection Mode the router has had no traffic for the specified amount of time. Enter the Max Idle Time in minutes. ORing Industrial Networking Corp.
- Page 23 3G modem to the USB port before starting the WLAN AP router. Modem/3G Screen The following table describes the labels in this screen. Label Description Telephone number provided by your ISP. Phone Number Enter the APN value it is optional ORing Industrial Networking Corp……………………………………………………………….…19...
- Page 24 Operations Click “Connect” to call up the Modem/3G. Click "Disconnect" to shut down the connection. Link Status Show the status of connection, up, down or connecting. 4. WAN Connection Type: Wireless client Wireless Client on WAN ORing Industrial Networking Corp.
-
Page 25: Lan
These are the IP settings of the LAN interface for the IAR-120 / 120+ WLAN AP router. The LAN IP address is privately for your internal network and can not be exposed on the Internet. LAN Screen ORing Industrial Networking Corp……………………………………………………………….…21... -
Page 26: Dhcp
Set your computers to be DHCP clients by setting their TCP/IP settings to Obtain an IP Address Automatically. The DHCP server will allocate an unused IP address from the IP address pool to the requesting computer automatically. 1. DHCP Sever DHCP Server Screen ORing Industrial Networking Corp. - Page 27 When a computer with the MAC address requesting an IP from the IAR-120 / 120+ AP router, it will be assigned with the IP address according to the mapping. You can choose one from the client lists and add it to the mapping relationship. IP Allocation Screen ORing Industrial Networking Corp……………………………………………………………….…23...
-
Page 28: Wireless
AP router with the same SSID. Select the type of security for WLAN connection: None: disable encryption. Security options WEP: Wired Equivalent Privacy (WEP) is a wireless security protocol for WLAN. WEP provides data encryption for communicating over the WLAN. ORing Industrial Networking Corp. - Page 29 Key 1-4: Input up to four encryption keys. ASCII (American Standard Code for Information Interchange) is a code for representing English letters as numbers from 0-127. Hex digits consist of the numbers 0-9 and the letters A-F. ORing Industrial Networking Corp……………………………………………………………….…25...
- Page 30 Encryption Type: Choose one of three Encryption Types: TKIP, AES, TKIP/AES mix. Radius Server IP: Enter the IP address of the RADIUS Server. Port: Enter the RADIUS port (1812 is default). Shared Secret: Enter the RADIUS password or key. ORing Industrial Networking Corp.
- Page 31 ISA server responded (point out the customer carries proof to be not granted) and it means that the Radius server did not authorize you to carry. Even if the proof has already passed an identify verification, the ISA server may also refuse ORing Industrial Networking Corp……………………………………………………………….…27...
-
Page 32: Advanced Setting
IAR-120 / 120+ User’s Manual you to carry a claim according to the authorization strategy of the Radius server. The principle of the Radius server is shown in the following pictures: 5.3.2 Advanced Setting Wireless 1. Parameters Parameters Screen ORing Industrial Networking Corp. - Page 33 BG Mixed mode. If you Wireless Network have only IEEE802.11g devices, select G Mode. If you would Mode like to limit your network to only IEEE802.11b devices, then select B Mode. ORing Industrial Networking Corp……………………………………………………………….…29...
- Page 34 Use MAC Filter to allow or deny wireless clients to associate with IAR-120 / 120+ AP router. You can manually add a MAC address or select the MAC address from Associated Clients that are currently associated with IAR-120 / 120+. ORing Industrial Networking Corp.
-
Page 35: Nat Setting
Internet to this Local port will be redirected to the computer specified by the Local IP. Any PC that was used for a virtual server must have static or reserved IP Address because its IP address may change when requesting IP by DHCP. ORing Industrial Networking Corp……………………………………………………………….…31... - Page 36 Some applications require multiple connections, like Internet games, video conferencing, Internet calling and so on. These applications cannot work with a pure NAT router. Port Trigger is used for some of the applications that can work with an NAT router. ORing Industrial Networking Corp.
- Page 37 Enter the IP address of the internal computer that will be the DMZ host. Adding a client to the DMZ may expose your local network with variety of security risks, so only use this option carefully. DMZ Screen ORing Industrial Networking Corp……………………………………………………………….…33...
- Page 38 Application: The application that generates this port forwarding. Ext Port: The port opened on WAN side. Protocol: The protocol type. Int Port: The port redirected to the local computer. IP Address: The IP address of local computer to be redirected to. ORing Industrial Networking Corp.
-
Page 39: Security Setting
Enter the IP address of the source and destination computer. Protocol Choose which protocol to be filtered. Enable Now Enable the entry after adding it. IP filter list Click edit for editing the entry, click Del to delete the entry. ORing Industrial Networking Corp……………………………………………………………….…35... -
Page 40: Vpn Setting
1. Open VPN Open VPN is a full-functioned SSL VPN solution which can accommodates a wide range of configurations including remote access, site-to-site VPNs, WiFi security, and enterprise-scale remote access solutions with load balancing, failover, and fine-grained access-controls. ORing Industrial Networking Corp. - Page 41 IAR-120 / 120+ User’s Manual Open VPN Screen The following topology shows the common use of VPN connection from WAN side. 1: Open VPN Server Connection to Open VPN Server ORing Industrial Networking Corp……………………………………………………………….…37...
- Page 42 Keys Setting Select Auto to use the preset certificates, select Manual to paste your certificates. Please install software for openvpn client to generate your certificates and paste them here. For more information, please visit openvpn website. ORing Industrial Networking Corp.
- Page 43 PC. The steps are: Right click Network > property > create a new connection > connect to my work space (VPN) > use VPN to internet > enter the user name and password which are set in the page. ORing Industrial Networking Corp……………………………………………………………….…39...
- Page 44 IAR-120 / 120+ User’s Manual PPTP VPN Screen The following topology shows the common use of PPTP connection from the internet. Connection to PPTP VPN Server ORing Industrial Networking Corp.
- Page 45 *, multiple username password pairs are allowed. 3. PPTP Client If the router A want to link with the others which is not in the same network with the router A, the function of PPTP client should support in the router page. ORing Industrial Networking Corp……………………………………………………………….…41...
- Page 46 Point-to-Point Encryption) to encrypt data across Point-to-Point Protocol (PPP) and Virtual Private Network links. Operations Click “Connect” to link the server, if or not, you can click “”Disconnect” to break off from the server. Link Status Show the status about the link. ORing Industrial Networking Corp.
-
Page 47: Routing Protocol (Routing Setting)
Use the dynamic routing, you should not choose “Disable” about the RIPv1 & v2 in the routers. Click “Apply”, and you can see the more information in the Current Routing Table, which shows the network segment of the other router. ORing Industrial Networking Corp……………………………………………………………….…43... - Page 48 Use the Static routing, you should choose “Disable” about the RIPv1 & v2 in the routers. Click “Apply”, and you can see the more information in the Current Routing Table and Static Route Entry, which shows the network segment of the other router. ORing Industrial Networking Corp.
- Page 49 RIP, Routing Information Protocol, is a dynamic routing protocol used in local and wide area networks. As such it is classified as an interior gateway protocol (IGP) using the distance-vector routing algorithm. After all settings, PC1 can visit PC2 which is different network segment of the PC1. ORing Industrial Networking Corp……………………………………………………………….…45...
-
Page 50: Notification
SNMP manager. The agent provides management information to the NMS by keeping track of various SNMP Agent operational aspects of the system. Turn on to open this service and off to disable it. ORing Industrial Networking Corp. - Page 51 When specified event is triggered, the notification procedure will be performed according to the type of the event. Which notification would be performed depends on the selection of corresponding option in the Advanced Setting > Notification > System Event page. ORing Industrial Networking Corp……………………………………………………………….…47...
-
Page 52: Miscellaneous (Ddns)
Miscellaneous (DDNS) Dynamic Domain Name System is a method of keeping a domain name linked to a changing IP address. DDNS Screen ORing Industrial Networking Corp. -
Page 53: System Tools
A NTP (Network Time Protocol) client can be used to synchronize date & time with NTP server through internet. Date & Time Screen The following table describes the labels in this screen. Label Description Set local date manually. Local Date ORing Industrial Networking Corp……………………………………………………………….…49... -
Page 54: Login Setting
Acceptable characters of this field contains '0-9', 'a-z', 'A-Z' and must be between 0 to 15 characters in length. An empty password is also acceptable. New Name Enter a new login name. Acceptable characters of this field ORing Industrial Networking Corp. -
Page 55: Router Restart
If you want restart the router through the Warm Reset, click Restart Now to restart the Wireless Router. Also, you can set a Scheduling time to make the router restart. Router Restart Screen Firmware Upgrade Firmware Upgrade Screen ORing Industrial Networking Corp……………………………………………………………….…51... -
Page 56: Save/Restore Configurations
The current system settings can be saved as a file into your PC. Download configuration Upload configuration The configuration can be restored to the router. To reload a system settings file, click on Browse to browse your local hard ORing Industrial Networking Corp. -
Page 57: Miscellaneous (Ping)
The Ping Test is used to send Ping packets to test if a computer whether it is on the Internet or test if the WAN connection is OK. Enter a domain or IP in the destination box and click Ping to test. ORing Industrial Networking Corp……………………………………………………………….…53... -
Page 58: System Status
IAR-120 / 120+ User’s Manual 5.3.4 System Status System Info System Info Screen This page displays the details information for the AP router including model name, model description, firmware version, WAN, LAN and wireless settings. System Log System Log Screen ORing Industrial Networking Corp. -
Page 59: Traffic Statistics
Ethernet port and wireless connections. Wired/Wireless Clients Wired/Wireless Clients Screen This page of the list displays the Mac Address and Lease IP Address of the wired/wireless clients connected. Communication Type shows the physical connection type of the client. ORing Industrial Networking Corp……………………………………………………………….…55... -
Page 60: Technical Specifications
WPA/WPA2:802.11i (WEP and AES encryption) WPA-PSK (256-bit key pre-shared key supported) 802.1X and Radius supported TKIP encryption Wireless Security SSID broadcast disable LED Indicators PWR 1(2) (P.O.E., IAR-120+) / Ready: 1) Red On: Power is on and booting up. ORing Industrial Networking Corp. - Page 61 IP-30 protection Regulatory Approvals Regulatory Approvals FCC Part 15, CISPER (EN55022) class A EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS) Shock IEC 60068-2-27 Free Fall IEC 60068-2-32 Vibration IEC 60068-2-6 Warranty 3 years ORing Industrial Networking Corp……………………………………………………………….…57...
