8. Lift the cylinder from the scissor assembly.
Installation
Clean all parts before installation. Replace worn or damaged parts with new parts.
Installation is reverse of removal.
• Use Loctite 242 or equivalent on mounting bolts.
• Torque all bolts to specifications listed in the Introduction Section of this manual.
Cylinder
Mount Pin
Retaining
Pin
Support
Beam
ART_4495
"4069RT" Service and Parts Manual
Nylon
Washer
Lift
Cylinder
Retaining
Ring
L C
I F T Y L I N D E R S

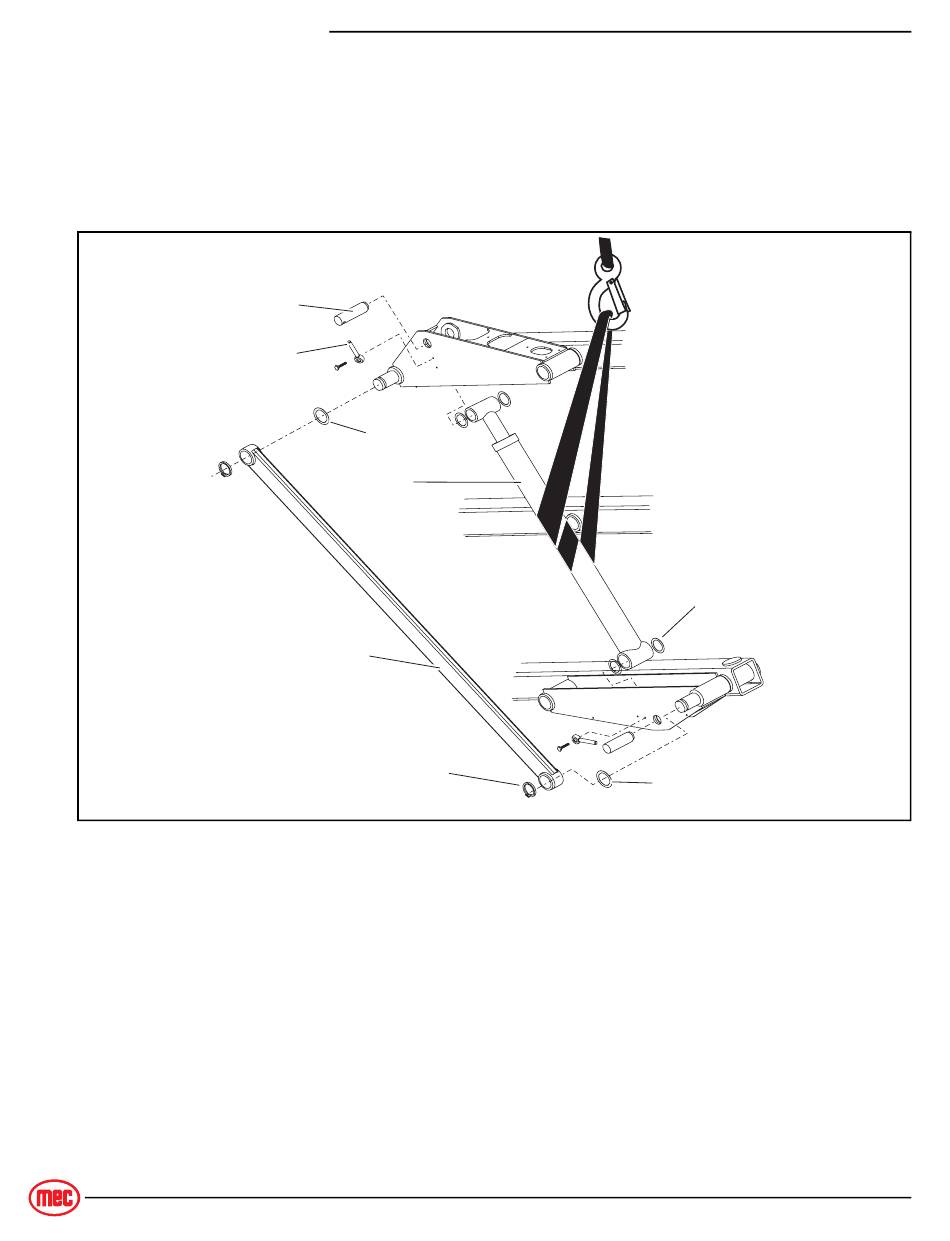

Figure 3-4: Lift Cylinder
Nylon
Washer
Nylon
Washer
