Mec 4069RT Service And Parts Manual page 191

Lift Cylinders -- Old Style
ITEM PART NO. QTY DESCRIPTION
1 21273
-- 93613 --
2 21272
-- 93614 --
3 50790
4 91464
5 93615
6 90969
Lift Cylinders -- New Style
1 93519
-- 93642 --
2 93518
-- 93643 --
3 50790
4 91464
5 93615
6 90969

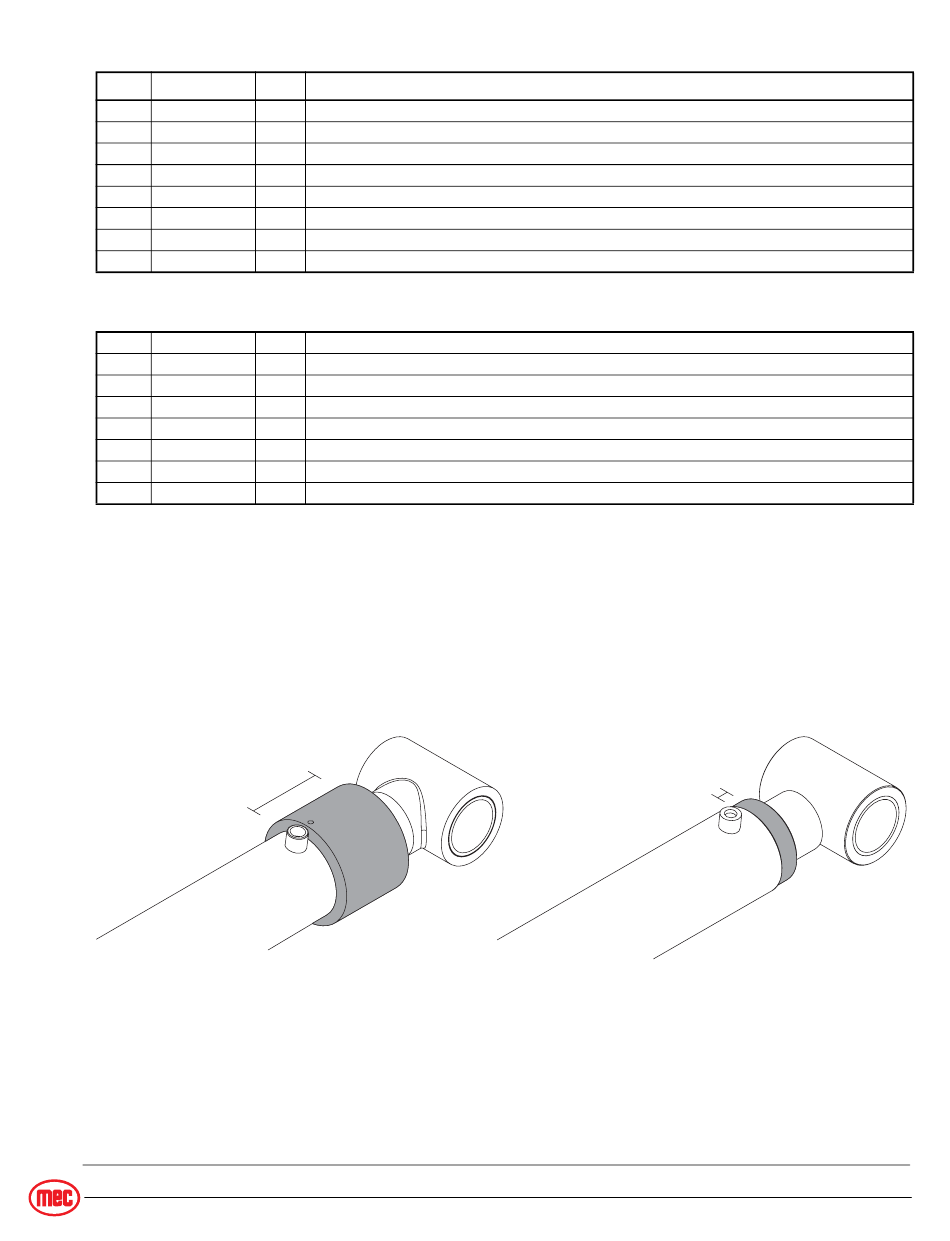

Examine the collar at the rod end of the cylinder to determine whether your machine is equipped with
Old Style or New Style cylinders
• Old Style cylinders have a 3-inch (7.5 cm) collar.
• New Style cylinders have a 1-inch (2.5 cm) collar.
3 inch
7.5 cm
IMPORTANT -- Both cylinders must be changed out if an Old Style cylinder requires replacement.
DO NOT pair a New Style cylinder with and Old Style cylinder.
• as req: as required
1 Upper Lift Cylinder -- Old Style
Seal Kit
1 Lower Lift Cylinder -- Old Style
Seal Kit
2 Fitting, MB-MJ90-6-6
2 Valve
2 Coil
2 Valve, Relief
1 Upper Lift Cylinder -- New Style
Seal Kit
1 Lower Lift Cylinder -- New Style
Seal Kit
2 Fitting, MB-MJ90-6-6
2 Valve
2 Coil
2 Valve, Relief
Old Style
Cylinder
• INCL: Included with assembly
"4069RT" Parts Section
1 inch
2.5 cm
• NS: Not a Stock item
New Style
Cylinder
ART_4601
• REF: Reference only
March 2014
Page E-15
