Drive Case Drain Circuit - Mec 4069RT Service And Parts Manual

S D
Y S T E M E S C R I P T I O N S
D C D C
R I V E A S E R A I N I R C U I T
Hoses connect the Case Drain ports of each wheel motor route the fluid back to the
tank at the center return port of the Hydraulic Reservoir.

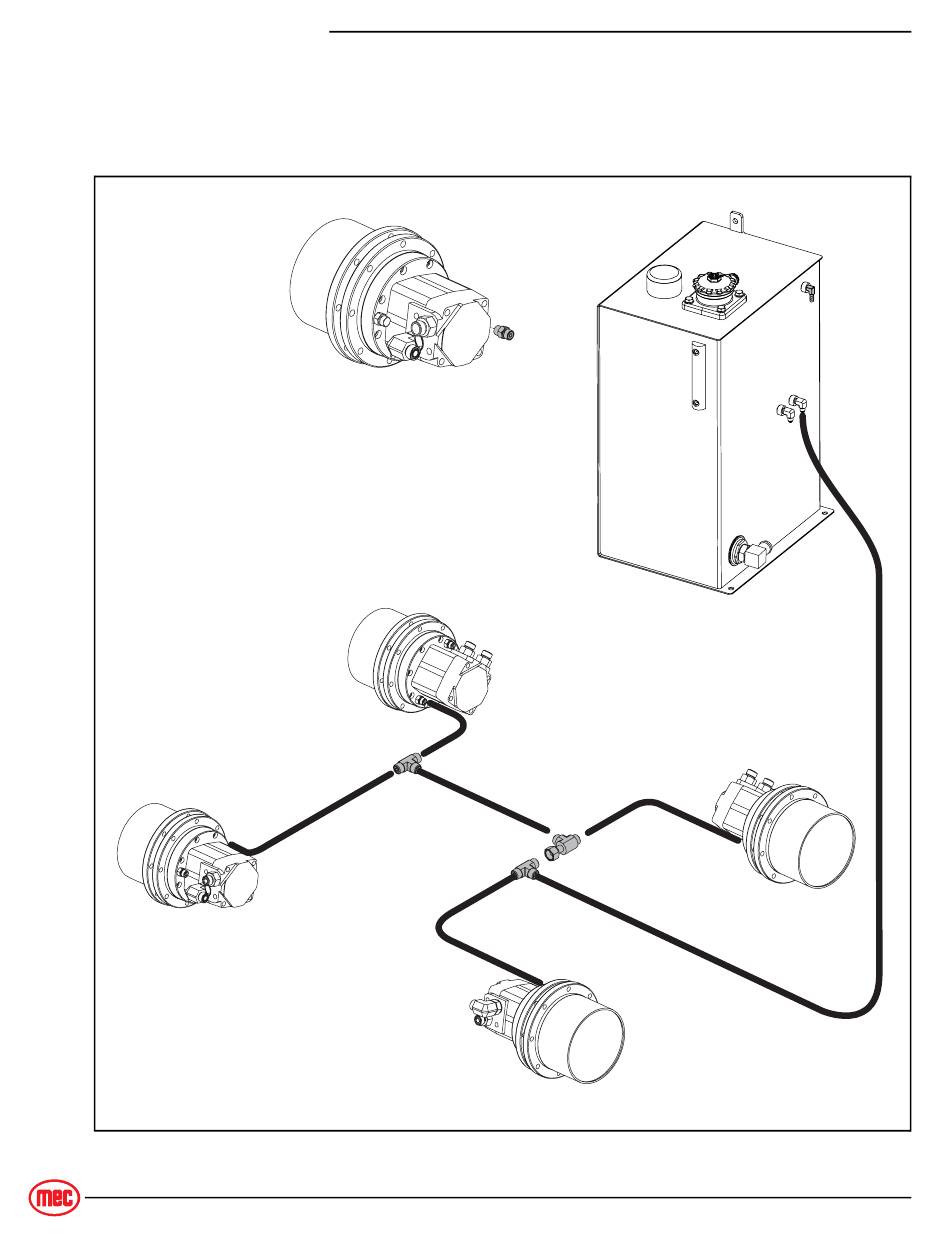

Figure 1-14: Drive Case Drain Circuit
D
ART_4597
