Drive Belt - Schwinn Airdyne AD2 Service Manual

Replacing the Drive Belt
Disconnect the data cable from the console before you service this machine.
Note: Your machine may not match the image. For reference only.
Tools required: pedal wrench, #2 Phillips screwdriver, 13mm open
end wrench or socket and wrench (or nutdriver)
1. Remove the Pedals. Refer to the "Replacing the Pedals"
procedure in this manual.
2. Carefully remove the Shrouds, Console and Vent Cover. Refer
to the "Replacing the Shrouds and Vent Cover" procedure in this
manual. Set the hardware safely aside for reassembly.
3. Remove the right Handlebar and Footpeg. Refer to the
"Replacing the Handlebars and Footpegs" procedure in this
manual. Set the hardware safely aside for reassembly.

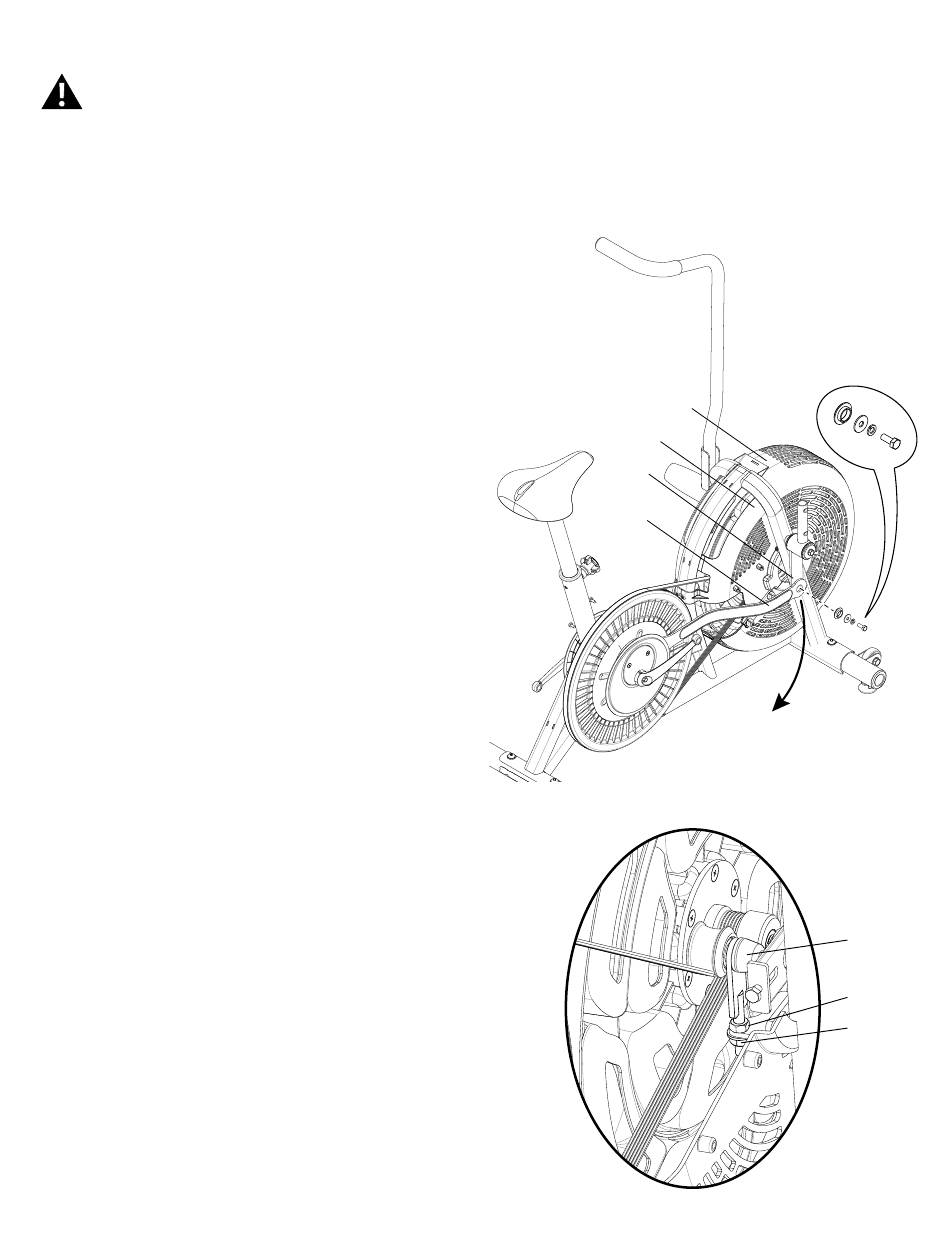

4. Loosen and remove the hardware that attaches the Right
Connector Arm (A) to the Arm Pivot (B). Set the free end of the
Connector Arm on the floor. Set the hardware safely aside for
reassembly.
Remove the Front Fan Cover (D). Refer to the "Replacing the
5.
Fan Covers" procedure in this manual. Set the hardware safely
aside for reassembly.
Note: It may also be necessary to remove the Right Rear Fan
Cover (C).
6. Make a note of the setting of the Belt Tensioner (E): the
number of bolt threads showing. To loosen the belt tension, turn the
upper nut (E1) and lower nut (E2).
