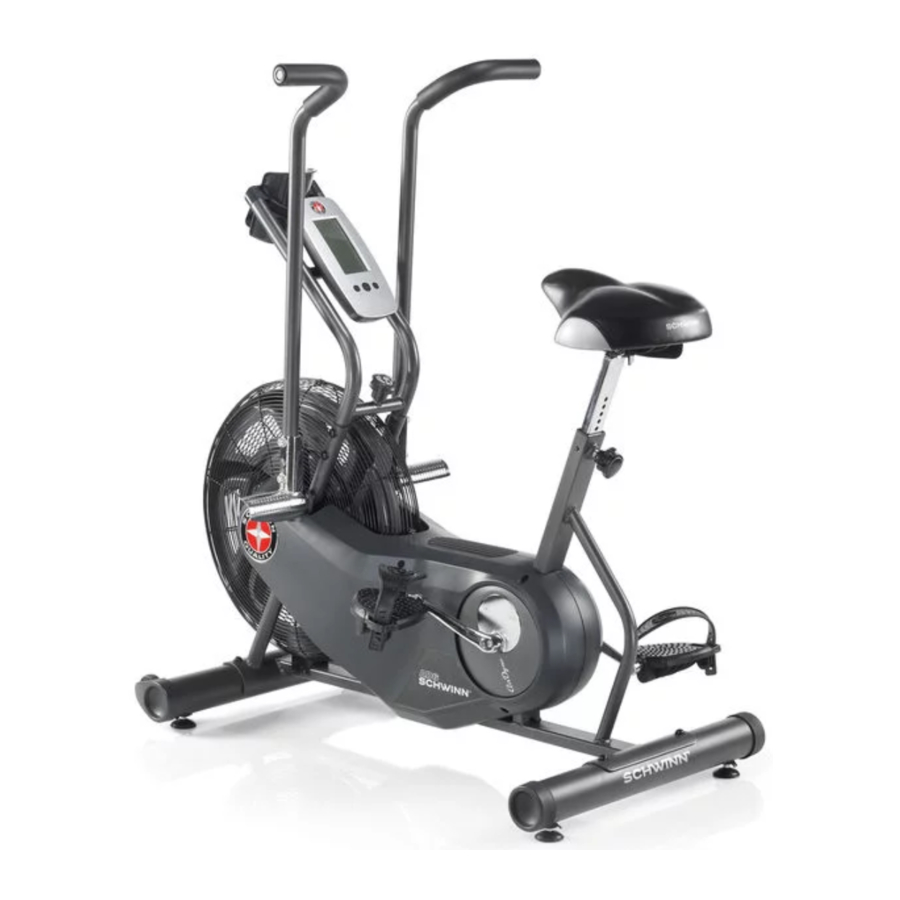

Schwinn AD6 Manual

PARTS

A decal has been applied to all right (" R ") and left (" L ") parts to assist with assembly.

HARDWARE / TOOLS

Tools
Included

ASSEMBLY

1. Attach Stabilizers to Frame
   Note: Hardware is pre-installed and not on the Hardware Card ( *).

2. Attach Pedals and then Pedal Straps to Frame Assembly
   Note: The Left Pedal is reverse-threaded. Be sure to attach Pedals on the proper side of the Bike. Orientation is based from a seated position on the bike. The Left Pedal has an "L", the Right Pedal an "R".

3. Connect Cables and Attach the Console Support Bar to Frame Assembly
   Note: Do not crimp the cables. Pull the lower cable to remove any slack as you insert the Console Support Bar.
   In order to avoid possible serious injury, when inserting the tube ends into the Frame Assembly be careful to avoid fingers or hands being caught or pinched.

4. Remove Hardware and Install Batteries into Console
   Note: Make sure that the batteries point in the direction of the +/– indicators in the battery bay. Hardware is pre-installed and not on the Hardware Card ( * ).
   Do not mix alkaline, standard (carbon-zinc), or rechargeable (Ni-Cd, Ni-MH, etc) batteries.


5. Connect Cable and Attach the Console
   Note: Do not crimp Console Cable.


6. Attach Water Bottle Holder to Frame Assembly
   Note: Hardware is pre-installed and not on the Hardware Card (*).

7. Attach Endcaps, Handlebar Arms and Foot Pegs to Frame Assembly
   Note: Remove protective plastic caps from pivots. Put Endcaps in position on pivots. Then install Handlebar Arms and Foot Pegs.

8. Loosen and Pull the Seat Post Adjustment Knob to Attach Seat Post to Frame Assembly

9. Attach Seat to Seat Post
   NOTICE: Be sure the Seat is straight and then tighten the hardware.


10. Final Inspection
    Inspect your machine to ensure that all hardware is tight and components are properly assembled.
    Do not use or put the machine into service until the machine has been fully assembled and inspected for correct performance in accordance with the Owner's Manual.

BEFORE YOU START

Moving the Machine
The machine may be moved by one or more persons depending on their physical abilities and capacities. Make sure that you and others are all physically fit and able to move the machine safely. Use proper safety precautions and lifting techniques.

1. Secure the Handlebar to the Console Support Bar with the Transport and Immobilization Strap (T).
2. Use the Rear Stabilizer to carefully lift the machine onto the transport rollers.
   Note: Be sure to keep the fan assembly clear of the floor.
3. Push the machine into position.
4. Carefully lower the machine into position.
   NOTICE: B e careful when you move the machine. All abrupt motions can affect the computer operation.

Leveling the Machine
The machine needs to be leveled if your workout area is uneven. To adjust:

1. Place the machine in your workout area.
2. Loosen the locking nuts and adjust the levelers until they are evenly balanced and in contact with the floor.
   Do not adjust the levelers to such a height that they detach or unscrew from the machine. Injury to you or damage to the machine can occur.
3. Tighten the locking nuts.
   Make sure the machine is level and stable before you exercise.

FEATURES

1. Console
2. Hand Grip
3. Handlebar
4. Water Bottle Holder
5. Battery Compartment
6. Transport and Immobilization Strap

7. Air Resistance Fan
8. Transport Roller
9. Leveler
10. Stabilizer, Front
11. Foot Peg
12. Pedal

13. Stabilizer, Rear
14. Foot Step Pad
15. Seat Post Adjustment Knob
16. Seat

Accessories

17. AirDyne ™ Reading Rack
18. AirDyne ™ Wind Screen
19. Remote Heart Rate Chest Strap

Use the values calculated or measured by the machine's computer for reference purposes only. The heart rate displayed is an approximation and should be used for reference only. Over exercising may result in serious injury or death. If you feel faint stop exercising immediately.

Console Features
The Console provides information about your workout on the display screen.

LCD Display Data
The console display shows each workout value.

RPM
The RPM display fi eld shows the machine revolutions per minute (RPM). The maximum display is 100.

Time
The TIME display fi eld shows the time count of the workout. The maximum display is 99:59. If the time count is more, the display starts again at 0:00.
During the initial power-up, this display will show altitude ( "Alt" ). The altitude where the machine will be in operation must be entered.

Speed
The SPEED display fi eld shows the machine speed in kilometers per hour ( "KM" ) or miles per hour ( "M" ), to one decimal place—for example, 3.4 or 10.5. The maximum display is 99.9.

Dist.
The DISTANCE display fi eld shows the distance count (miles or km) in the workout, to two decimal places—for example, 2.07. The maximum display is 99.99. If the distance exceeds 99.99, the display starts again at 0.00.
Note: To change the measurement units to English Imperial or metric, refer to the "Console Service Mode" section in this manual.
The Odometer ( "Odo." ) shows the sum of all workout distances. It is dis- played when a workout is paused, or as an option in the "Console Service Mode".
During the initial power-up, this display will show the Altitude value until accepted.

Watts
The WATTS display field shows the power that you are producing at the current resistance level (1 horsepower = 746 watts).

Calories
The CALORIES display field shows the estimated calories that you have burned during the exercise. The maximum display is 9999. If the calorie count is more, the display fl ashes 9999.

Pulse
The PULSE display shows the heart rate in beats per minute (BPM) from a telemetric heart rate sensor. The icon will fl ash when it has a signal from a telemetric heart rate strap. This display value will be blank if a heart rate signal is not detected.
Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again. Use the values calculated or measured by the machine's computer for reference purposes only.

Keypad Functions
Decrease (‚) button- Decreases a value (time or altitude) or moves through options
START/STOP button- Starts a Program workout, confirms a selection, and ends a paused workout if held down for 3 seconds.
Increase () button- Increases a value (time or altitude) or moves through options

Remote Heart Rate Monitor
Monitoring your Heart Rate is one of the best procedures to control the intensity of your exercise. The Console can read telemetry HR signals from a Heart Rate Chest Strap Transmitter that operates in the 4.5kHz - 5.5kHz range.
Note: The heart rate chest strap must be an uncoded heart rate strap from Polar Electro or an uncoded POLAR^™ compatible model. (Coded POLAR^™ heart rate straps such as POLAR^™ OwnCode^™ chest straps will not work with this equipment.)
If you have a pacemaker or other implanted electronic device, consult your doctor before using a wireless chest strap or other telemetric heart rate monitor.

Heart Rate Calculations
Your maximum heart rate usually decreases from 220 Beats Per Minute (BPM) in childhood to approximately 160 BPM by age 60. This fall in heart rate is usually linear, decreasing by approximately one BPM for each year. There is no indication that training influences the decrease in maximum heart rate. Individuals of the same age could have different maximum heart rates. It is more accurate to find this value by completing a stress test than by using an age related formula.
Your at-rest heart rate is influenced by endurance training. The typical adult has an at-rest heart rate of approximately 72 BPM, where as highly trained runners may have readings of 40 BPM or lower.
The Heart Rate table is an estimate of what Heart Rate Zone (HRZ) is effective to burn fat and improve your cardiovascular system. Physical conditions vary, therefore your individual HRZ could be several beats higher or lower than what is shown.
The most efficient procedure to burn fat during exercise is to start at a slow pace and gradually increase your intensity until your heart rate reaches between 60 – 85% of your maximum heart rate. Continue at that pace, keeping your heart rate in that target zone for over 20 minutes. The longer you maintain your target heart rate, the more fat your body will burn.
The graph is a brief guideline, describing the generally suggested target heart rates based on age. As noted above, your optimal target rate may be higher or lower. Consult your physician for your individual target heart rate zone.
Note: As with all exercises and fitness regimens, always use your best judgment when you increase your exercise time or intensity.

FAT-BURNING TARGET HEART RATE

OPERATIONS

What to Wear
Wear rubber-soled athletic shoes. You will need the appropriate clothes for exercise that allow you to move freely.

How Often Should You Exercise
Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again. Use the values calculated or measured by the machine's computer for reference purposes only. The heart rate displayed is an approximation and should be used for reference purposes only.

• 3 times a week for 20 minutes each day.
• Schedule workouts in advance and try to follow the schedule.

Seat Adjustment
Correct seat placement encourages exercise efficiency and comfort, while reducing the risk of injury.

1. With a Pedal in the forward position, place the heel of your foot to the lowest part of it. Your leg should be bent slightly at the knee.
2. If your leg is too straight or your foot cannot touch the Pedal, you need to move the seat downward. If your leg is bent too much, you need to move the seat upward.
   Step off the machine before you adjust the seat.
3. Loosen and pull the Seat Post Adjustment Knob on the Seat Post. Adjust the seat to the desired height.
   Do not lift the Seat post above the "STOP" mark on the Seat Post.
4. Release the Seat Post Adjustment Knob to engage the locking pin. Be sure that the pin is fully engaged and fully tighten the adjustment knob.

Foot Position / Pedal Strap Adjustment
Foot pedals with straps provide secure footing to the exercise bike.

1. Rotate the Pedals until one can be reached.
   Be aware that the Pedals, Handlebars and Resistance Fan are connected and when any of these parts move the others do as well.
2. Put the ball of each foot on the Pedals.
3. Fasten the strap over the shoe.
4. Repeat for the other foot.
   Be sure toes and knees point directly forward to ensure maximum Pedal efficiency. Pedal straps can be left in position for subsequent workouts.

Using the Machine
Be aware that the Pedals, Handlebars and Resistance Fan are connected and when any of these parts move the others do as well.
Carefully mount the machine using the Foot Step Pad if necessary. Adjust the Seat and Pedals before starting a workout.
Lower Body Workout: Slowly pedal with your arms relaxed at your sides or with your hands resting on the Hand Grips as the Handlebars move.
Full Body Workout: Grasp the Hand Grips with your palms down. Push and pull the Handlebars as you pedal, keeping your elbows low and next to your body.
Upper Body Workout: Grasp the Hand Grips firmly with palms down and place your feet on the Foot Pegs. Lean slightly forward at the hips with your back straight and shoulders down. Now push and pull the Handlebars
Note: You may need to safely push a Pedal to assist with starting the workout.
To increase the air resistance and workload, increase your level of activity. To exercise all the muscle groups in your arms, alter your grasp to palms up for part of the workout.
When done with your workout, reduce the Resistance Fan speed until the machine fully stops.
This bike cannot stop the Pedals independently of the Resistance Fan. Reduce the pace to slow the Resistance Fan and Pedals to a stop. Do not dismount the bike until the Pedals have come to a complete stop.

Locking the Fan Assembly / Storage
When the machine is not in use, be sure to lock the Fan Assembly with the Transport and Immobilization Strap. The fan assembly should be locked for storage of the machine.
For safe storage of the machine, remove the batteries and install the Transport and Immobilization Strap to secure the Resistance Fan. Place the machine in a secure location away from children and pets. Be aware that the Pedals, Handlebars and Resistance Fan are connected and when any of these parts move the others do as well.
To lock the Fan Assembly:

1. Move the Handlebars so that one Handlebar is as close as possible to the Console Support Bar.
2. Wrap the Transport and Immobilization Strap (T) around the Handlebar and the Console Support Bar and put the end of the strap through the metal ring. Tighten the strap to prevent movement of the handlebars and secure the strap.

Power-Up / Idle Mode
The Console will enter Power-Up / Idle Mode if any button is pushed, or if it receives a signal from the RPM sensor as a result of pedaling the machine.
Note: The Console will display "Lbatt" if the batteries are around 10% of their rated power during power up.

Auto Shut-Off (Sleep Mode)
If the Console does not receive any input in approximately 5 minutes, it will automatically shut off. The LCD display is off while in Sleep Mode.
Note: The Console does not have an On/Off switch.

Initial Setup
During the initial power-up, the Console will display "Alt" and must be setup with the current workout altitude.

1. Push the Increase/Decrease buttons to change the value for the altitude. Entering the correct value will make the calorie count more accurate.
2. Push the START/STOP button to set.
   Note: The altitude value can be adjusted at a future time. To adjust the value, consult the "Console Set-Up Mode" section.

Quick Start Workout
The Quick Start program lets you start a workout without entering any information.

1. Sit on the machine.
2. With the Console in Idle Mode, push the START/STOP button to start the workout program.
3. When done with your workout, stop pedaling. Then push and hold down the START/STOP button for 3 seconds to end the workout.

Custom Time Workout
The Console allows you to select a Custom Time Workout and enter your own time value. The Console will remember this value until changed.

1. Sit on the machine.
2. With the Console in Idle Mode, push and hold down for 3 seconds the START/STOP button.
3. The Console will show the default value or the last custom time value.
   Note: The default time value is 20 minutes.
4. Push the Increase and Decrease buttons to adjust the custom time value.
5. Push START/STOP to accept the custom time workout. Your Custom Goal Workout will now begin.

Pausing or Stopping
To Pause a workout:

1. Stop pedaling to pause your workout.
   Note: The Console will automatically pause if there is no RPM signal for 5 seconds.
2. To continue your workout, push START/STOP or start pedaling.
   To stop the workout, push and hold down the START/STOP button for 3 seconds. The Console will go into Results mode.
   When paused, the Console display will flash the current workout values of TIME, AVERAGE SPEED, DISTANCE, TOTAL MACHINE DISTANCE ("Odo."), WATTS, CALORIES, and AVERAGE HEART RATE (if activated).

Results Mode
When you complete or end a workout, the Console will display your workout values three times in the order of TIME, AVERAGE SPEED, DISTANCE, WATTS, CALORIES, and AVERAGE HEART RATE (if activated).
Push START/STOP to stop the Results display and go back to Idle Mode.

CONSOLE SERVICE MODE

The Console Service Mode lets you set the units of measurement to either English or Metric, see the total time and distance the machine has been used, adjust the altitude value for a more accurate calorie count, or find out which version of Firmware is installed.

1. Hold down the Increase button and Decrease button together for 3 seconds while in the Idle Mode to go into the Console Service Mode.
2. The Console display shows the Units prompt ( "Unit" ). Push START/STOP to start Units option. Push the Increase/ Decrease buttons to change between "M" (Imperial English units) and "KM" (metric units).
3. Push START/STOP to set. For the next option, push the Increase button.
4. The Console display shows the Workout Statistics prompt ( "StAt" ). Push START/STOP to start the Workout Statistics option. The Console will display the Total Distance ( "Odo" ) and Total Time.
   Note: The upper displayed value is total hours followed by the remaining minutes.
5. Push START/STOP to exit. For the next option, push the Increase button.
6. The Console display shows the Firmware Version prompt ( "Fir" ). The Console will display which Firmware Version is installed in the Speed display field.
7. For the next option, push the Increase button.
8. The Console display shows Altitude ( "Alt" ) with the previously entered value in the Speed display field. Push START/ STOP to adjust the Altitude value. Use the Increase/Decrease buttons to change the value.
9. Push START/STOP to exit. For the next option, push the Increase button.
10. The Console display shows the exit prompt ( "dOnE" ).
11. Push START/STOP to exit.
    To fully exit the Console Service Mode push and hold down the START/STOP button for 3 seconds. In Service Mode if the Console does not receive any input in approximately 5 minutes, it goes into Sleep Mode.

MAINTENANCE

Read all maintenance instructions fully before you start any repair work. In some conditions, an assistant is required to do the necessary tasks.
Equipment must be regularly examined for damage and repairs. The owner is responsible to make sure that regular maintenance is done. Worn or damaged components must be repaired or replaced immediately. Only manufacturer supplied components can be used to maintain and repair the equipment.
If at any time the Warning labels become loose, unreadable or dislodged, contact your local distributor for replacement labels.
Disconnect all power to the machine before you service it.

Daily:	Before each use, examine the exercise machine for loose, broken, damaged, or worn parts. Do not use if found in this condition. Repair or replace all parts at the first sign of wear or damage. After each workout, use a damp cloth to wipe your machine and Console free of moisture. Note: Avoid excessive moisture on the Console. NOTICE: If necessary, only use a mild dish soap with a soft cloth to clean the Console. Do not clean with a petroleum based solvent, automotive cleaner, or any product that contains ammonia. Do not clean the Console in direct sunlight or at high temperatures. Be sure to keep the Console free of moisture.
Weekly:	Clean the machine to remove any dust, dirt, or grime from the surfaces. Check for smooth seat operation. If needed, sparingly apply a thin coating of silicone lube to ease operation. Silicone lubricant is not intended for human consumption. Keep out of reach of children. Store in a safe place. Note: Do not use petroleum based products.
Monthly or after 20 hours:	Check pedals, crank arms and handlebars. Make sure all bolts and screws are tight. Tighten as necessary.

Replacing the Console Batteries
The Console will display "Lbatt" for ten seconds when the batteries are around 10% of their rated power during power up. When replacing the batteries, make sure the batteries point in the +/- direction shown in the battery bay.
Note: The console uses AA size batteries (LR6).
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or rechargeable (Ni-Cd, Ni-MH, etc) batteries.

Maintenance Parts

1. Foot Peg, Right
2. Handlebar, Right
3. Handlebar, Left
4. Foot Peg, Left
5. Water Bottle Holder
6. Console
7. Strap, Transport/Immobilization
8. Console Support Bar
9. not used
10. Console Cable, Upper
11. Seat
12. Seat Post
13. Foot Step Pad

14. Seat Adjustment Knob
15. Frame
16. Stabilizer, Rear
17. Shroud, Left
18. Crank Arm, Left
19. Center Plate
20. Pedal, Left
21. Pulley, Crank
22. Speed Sensor Magnet
23. Crank Belt
24. Pulley, Drive
25. Drive Belt
26. Speed Sensor Assembly

AA Connector Arm
BB Arm Pivot
CC Console Cable, Lower
DD Resistance Fan Assembly
EE Fan Cover
FF Leveler
GG Stabilizer, Front
HH Transport Wheel
II Shroud, Right
JJ Crank Arm, Right
KK Pedal, Right
LL Endcap, Left
MM Endcap, Right

TROUBLESHOOTING
