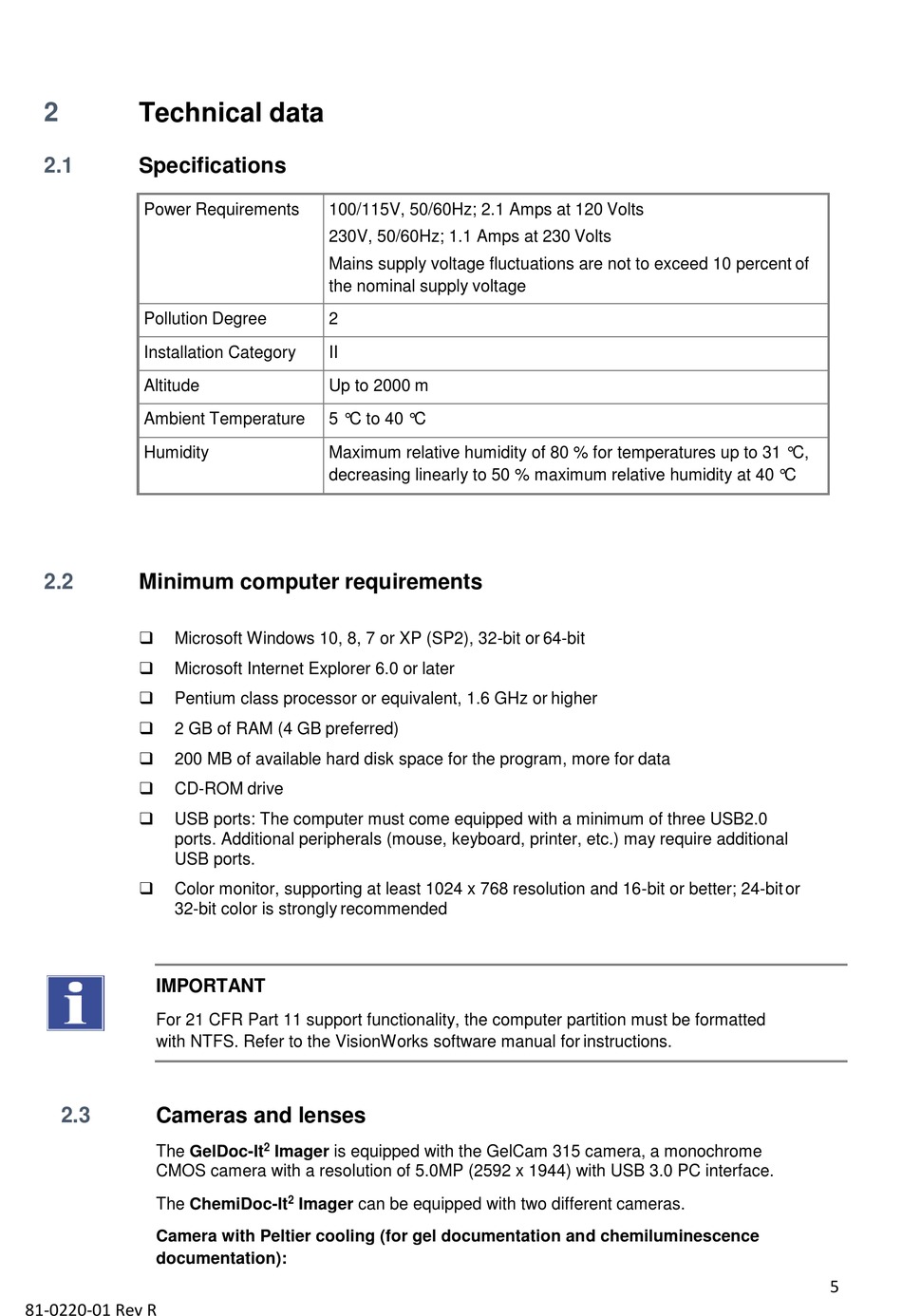

Technical data

2.1

Specifications

Power Requirements
Pollution Degree
Installation Category
Altitude
Ambient Temperature
Humidity
2.2

Minimum computer requirements


Microsoft Windows 10, 8, 7 or XP (SP2), 32-bit or 64-bit

Microsoft Internet Explorer 6.0 or later

Pentium class processor or equivalent, 1.6 GHz or higher

2 GB of RAM (4 GB preferred)

200 MB of available hard disk space for the program, more for data

CD-ROM drive

USB ports: The computer must come equipped with a minimum of three USB2.0
ports. Additional peripherals (mouse, keyboard, printer, etc.) may require additional
USB ports.

Color monitor, supporting at least 1024 x 768 resolution and 16-bit or better; 24-bit or
32-bit color is strongly recommended
IMPORTANT
For 21 CFR Part 11 support functionality, the computer partition must be formatted
with NTFS. Refer to the VisionWorks software manual for instructions.
2.3

Cameras and lenses

The GelDoc-It
CMOS camera with a resolution of 5.0MP (2592 x 1944) with USB 3.0 PC interface.
The ChemiDoc-It
Camera with Peltier cooling (for gel documentation and chemiluminescence
documentation):
81-0220-01 Rev R
100/115V, 50/60Hz; 2.1 Amps at 120 Volts
230V, 50/60Hz; 1.1 Amps at 230 Volts
Mains supply voltage fluctuations are not to exceed 10 percent of
the nominal supply voltage
2
II
Up to 2000 m
5 °C to 40 °C
Maximum relative humidity of 80 % for temperatures up to 31 °C,
decreasing linearly to 50 % maximum relative humidity at 40 °C
2
Imager is equipped with the GelCam 315 camera, a monochrome
2
Imager can be equipped with two different cameras.
