6
Software Installation
6.1
Installing VisionWorks Software
1. Insert the VisionWorks flash drive into the computer.
2. Click on the Install button for VisionWorks.
3. Click OK, Next, agree to "I accept terms of licensing agreement", then Next. Leave all
options in their default settings. Then click Next, Next, Install and finally Finish.
6.2
Registering the Software

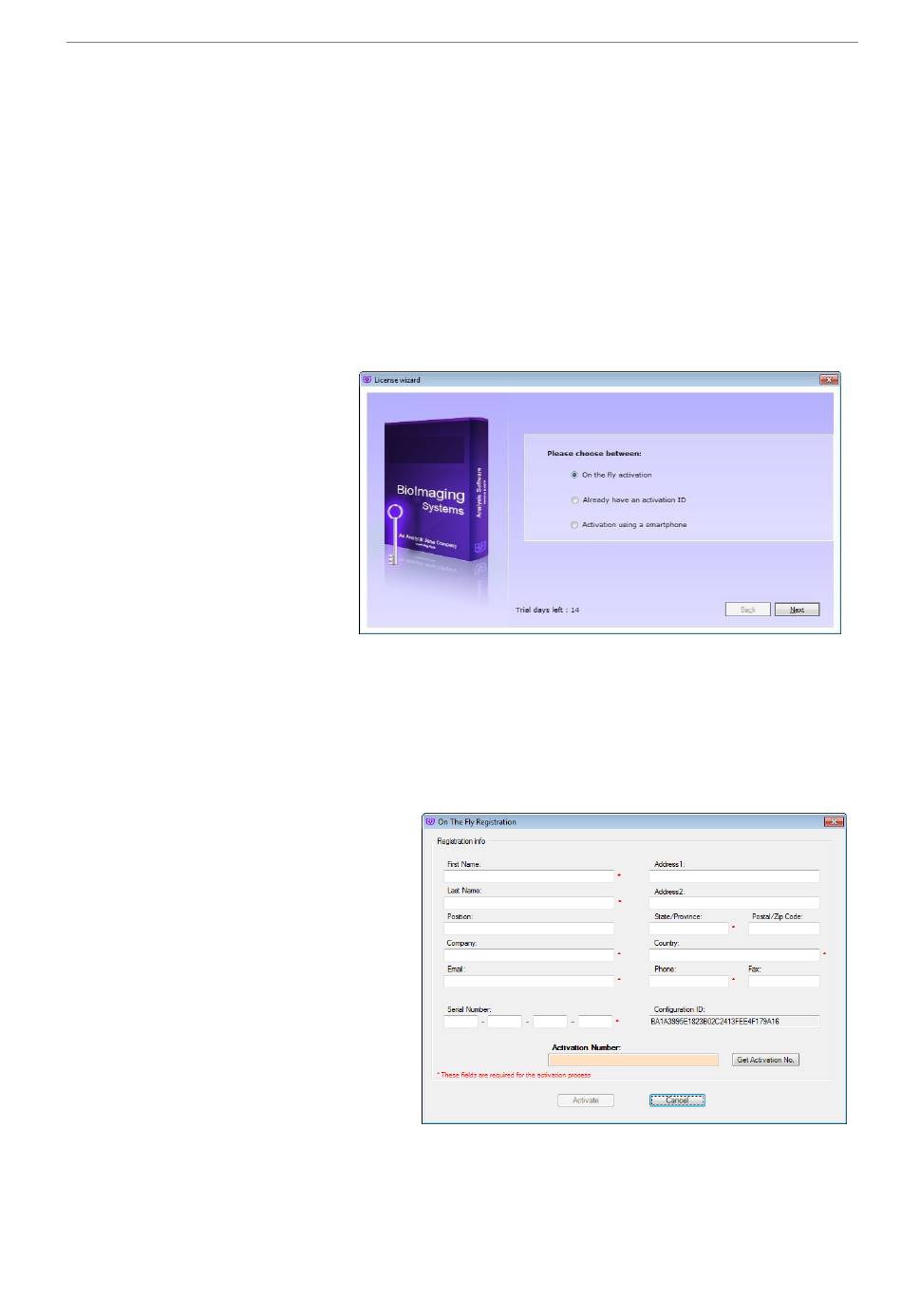

1. Double click the
VisionWorks soft-
ware icon on the desk-
top.
2. To activate the software,
registration is required.
To immediately activate
the software online,
choose On-the-Fly
activation. Activation
can aso be done using
a smartphone.
Activation can also be done at REG.UVP.com using any other web connected device. A
Config ID will be needed for this option and can be found by clicking Next after selecting On
the fly activiation. It will be displayed under Configuration ID.
3. Click Next to continue.
4. The Already have an activation ID option is useful when reloading the software after
receiving an initial activation code.
5. Complete all required infor-
mation on the form.
6. Fill out the Serial Number
located on the box delivered
with the flash drive. The num-
ber should be four sets of six
numbers.
7. Once the form is completed,
click on Get Activation No. and
then click Activate once the
Activation Number appears in
the box.
81-0220-01 Rev R
Software Installation
20
