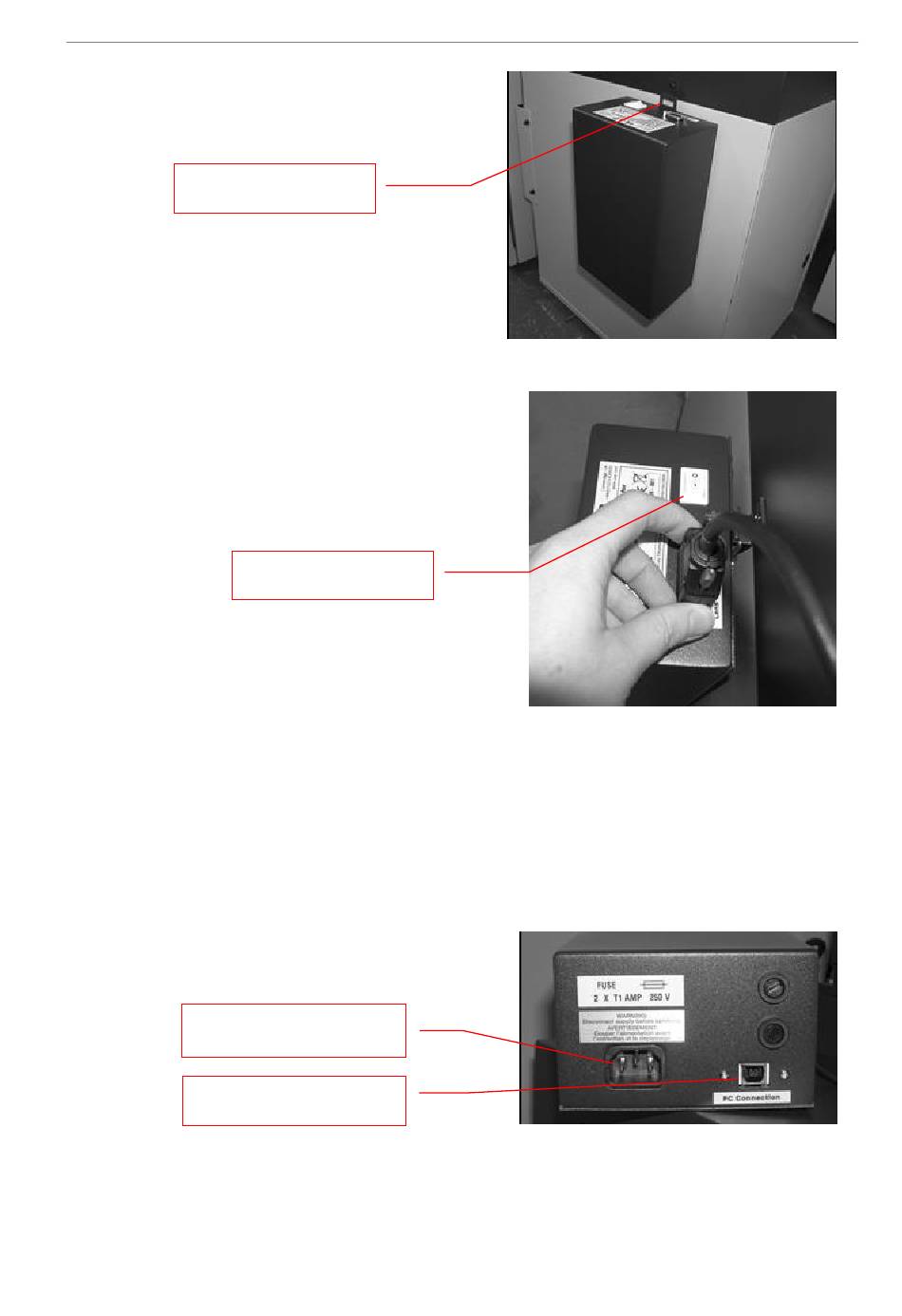

4. Mount the lens control box on the hook
located at the back of the darkroom.
Hook for the
Lens Control Box
5. Plug the serial cable from the motorized lens
into the lens control box.
6. Connect the USB cable to the PC connection port on the lens control box. Leave the
other end of the USB cable unplugged until installation of VisionWorks is complete.
7. Connect the power supply to the lens control box and into the power outlet.
Power supply
on the Lens Control Box
PC Connection on the Lens
Control Box
81-0220-01 Rev R
Power switch for the Lens
Control Box
Set-Up
