5.4.2 Camera with Motorized Lens
The 515 camera, zoom lens and diopter are assembled at the UVP factory.
Note: The camera, lens and brackets may appear different than pictured.
The 815 CCD and and 515 CCD cameras use many of the same components and are in-
stalled in a similar manner. Therefore, the installation instructions herein will refer to all three
cameras interchangeably.
Camera
power
supply
Camera
power
cable
Camera Installation

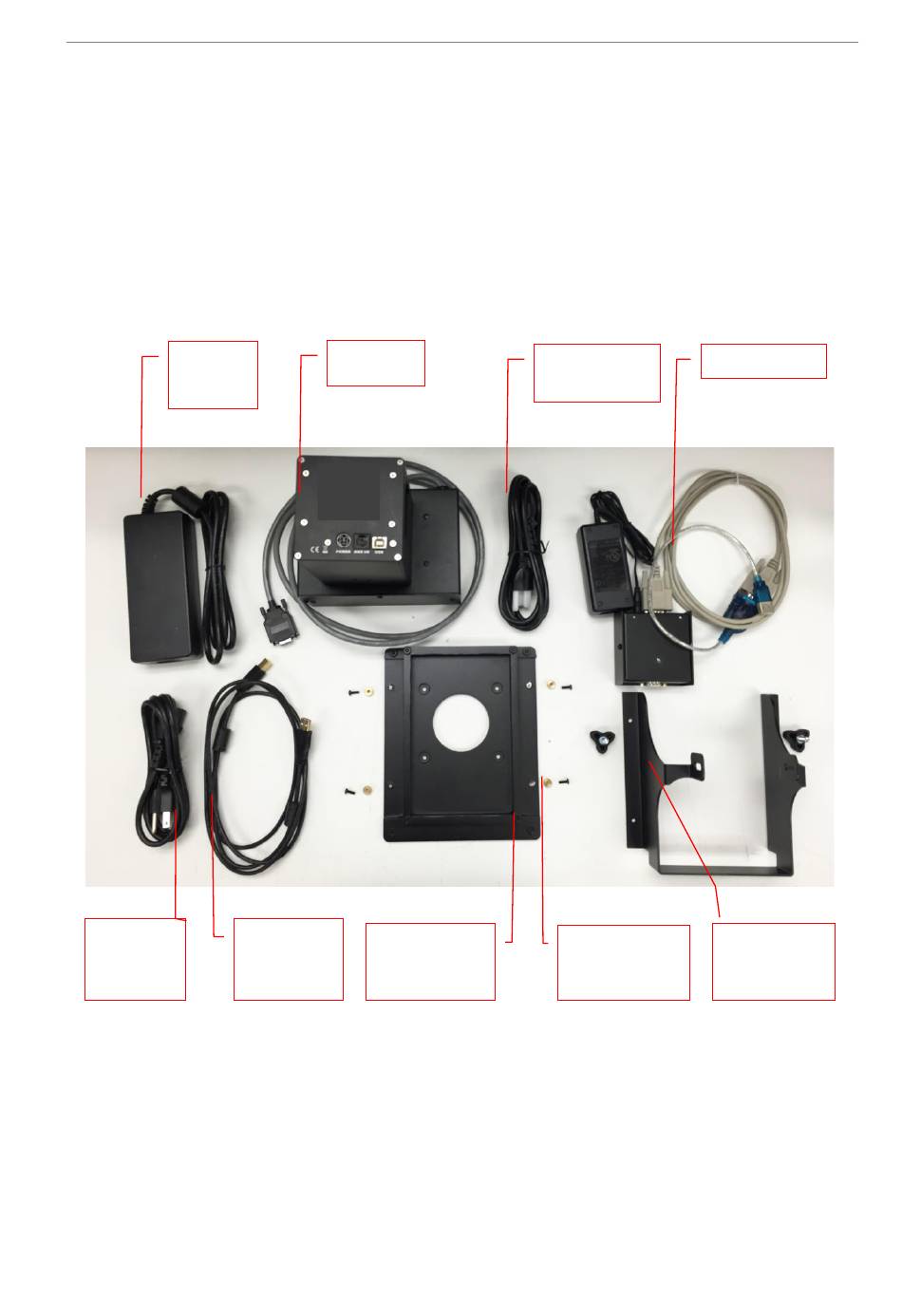

The photograph shows the parts required for assembly of the 815 CCD and 515 CCD cam-
era kits with the motorized lens on the Imager.
Note: The image above shows the motorized 42.5mm f/0.95 lens. Another lens and/or lens
controller may be shipped with the system, but will be installed in the same manner.
81-0220-01 Rev R
Camera
and lens
USB cable
Base mount
(computer
(ships attached
to camera)
to darkroom)
Lens controller Lens controller
power cable
Black screws
and brass
thumb nuts
Set-Up
Bracket and
black thumb
screws
