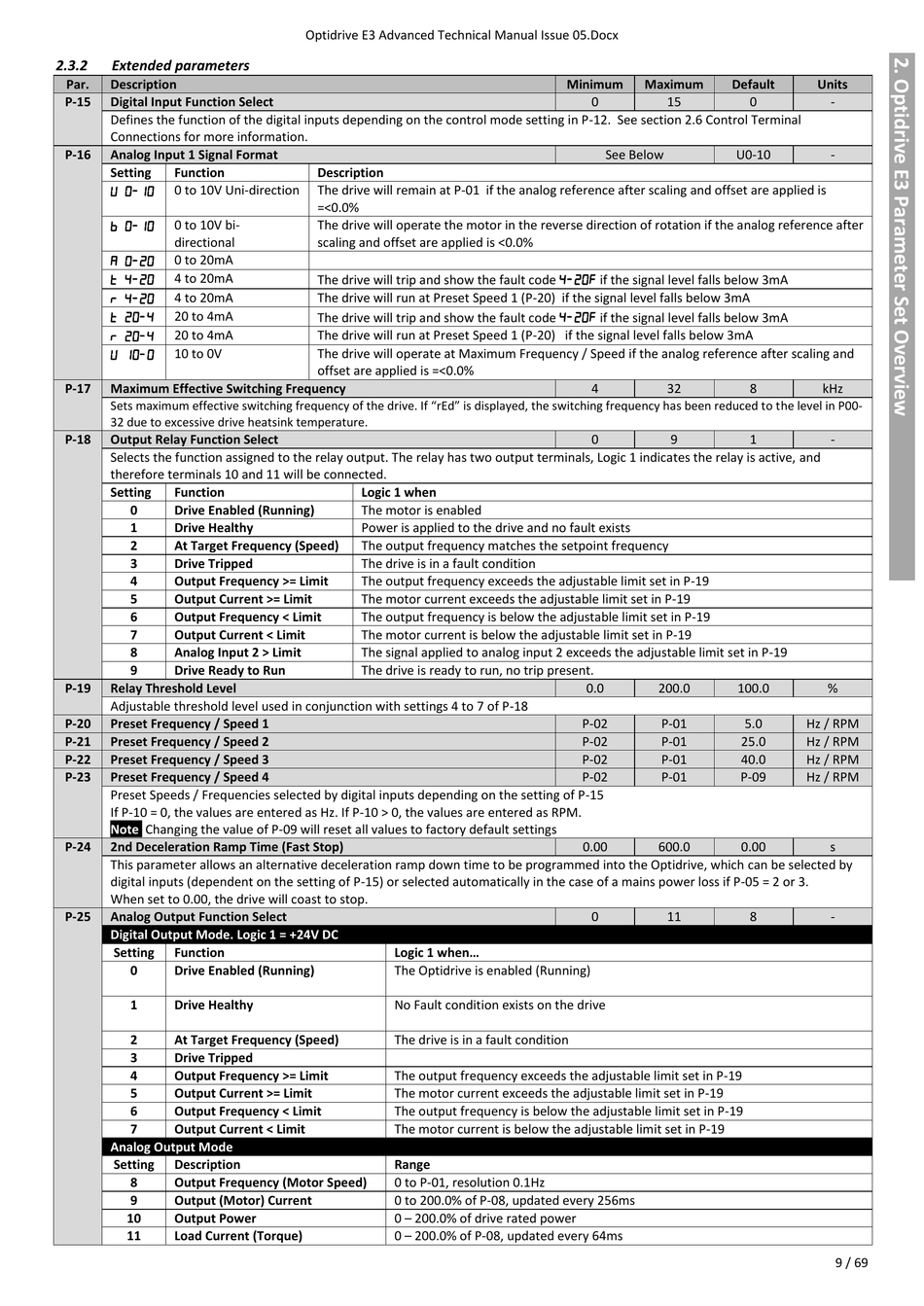

Invertek Drives Optidrive iE3 Technical Manual page 8

2.3.2 Extended parameters
Par. Description
P-15 Digital Input Function Select
Defines the function of the digital inputs depending on the control mode setting in P-12. See section 2.6 Control Terminal
Connections for more information.
P-16 Analog Input 1 Signal Format
Setting Function
 0 to 10V Uni-direction The drive will remain at P-01 if the analog reference after scaling and offset are applied is
 0 to 10V bi-
directional
 0 to 20mA
 4 to 20mA
 4 to 20mA
 20 to 4mA
 20 to 4mA
 10 to 0V
P-17 Maximum Effective Switching Frequency
Sets maximum effective switching frequency of the drive. If "rEd" is displayed, the switching frequency has been reduced to the level in P00-
32 due to excessive drive heatsink temperature.
P-18 Output Relay Function Select
Selects the function assigned to the relay output. The relay has two output terminals, Logic 1 indicates the relay is active, and
therefore terminals 10 and 11 will be connected.
Setting Function
0 Drive Enabled (Running)
1 Drive Healthy
2 At Target Frequency (Speed)
3 Drive Tripped
4 Output Frequency >= Limit
5 Output Current >= Limit
6 Output Frequency < Limit
7 Output Current < Limit
8 Analog Input 2 > Limit
9 Drive Ready to Run
P-19 Relay Threshold Level
Adjustable threshold level used in conjunction with settings 4 to 7 of P-18
P-20 Preset Frequency / Speed 1
P-21 Preset Frequency / Speed 2
P-22 Preset Frequency / Speed 3
P-23 Preset Frequency / Speed 4
Preset Speeds / Frequencies selected by digital inputs depending on the setting of P-15
If P-10 = 0, the values are entered as Hz. If P-10 > 0, the values are entered as RPM.
Note Changing the value of P-09 will reset all values to factory default settings
P-24 2nd Deceleration Ramp Time (Fast Stop)
This parameter allows an alternative deceleration ramp down time to be programmed into the Optidrive, which can be selected by
digital inputs (dependent on the setting of P-15) or selected automatically in the case of a mains power loss if P-05 = 2 or 3.
When set to 0.00, the drive will coast to stop.
P-25 Analog Output Function Select
Digital Output Mode. Logic 1 = +24V DC
Setting Function
0 Drive Enabled (Running)
1 Drive Healthy
2 At Target Frequency (Speed)
3 Drive Tripped
4 Output Frequency >= Limit
5 Output Current >= Limit
6 Output Frequency < Limit
7 Output Current < Limit
Analog Output Mode
Setting Description
8 Output Frequency (Motor Speed)
9 Output (Motor) Current
10 Output Power
11 Load Current (Torque)
