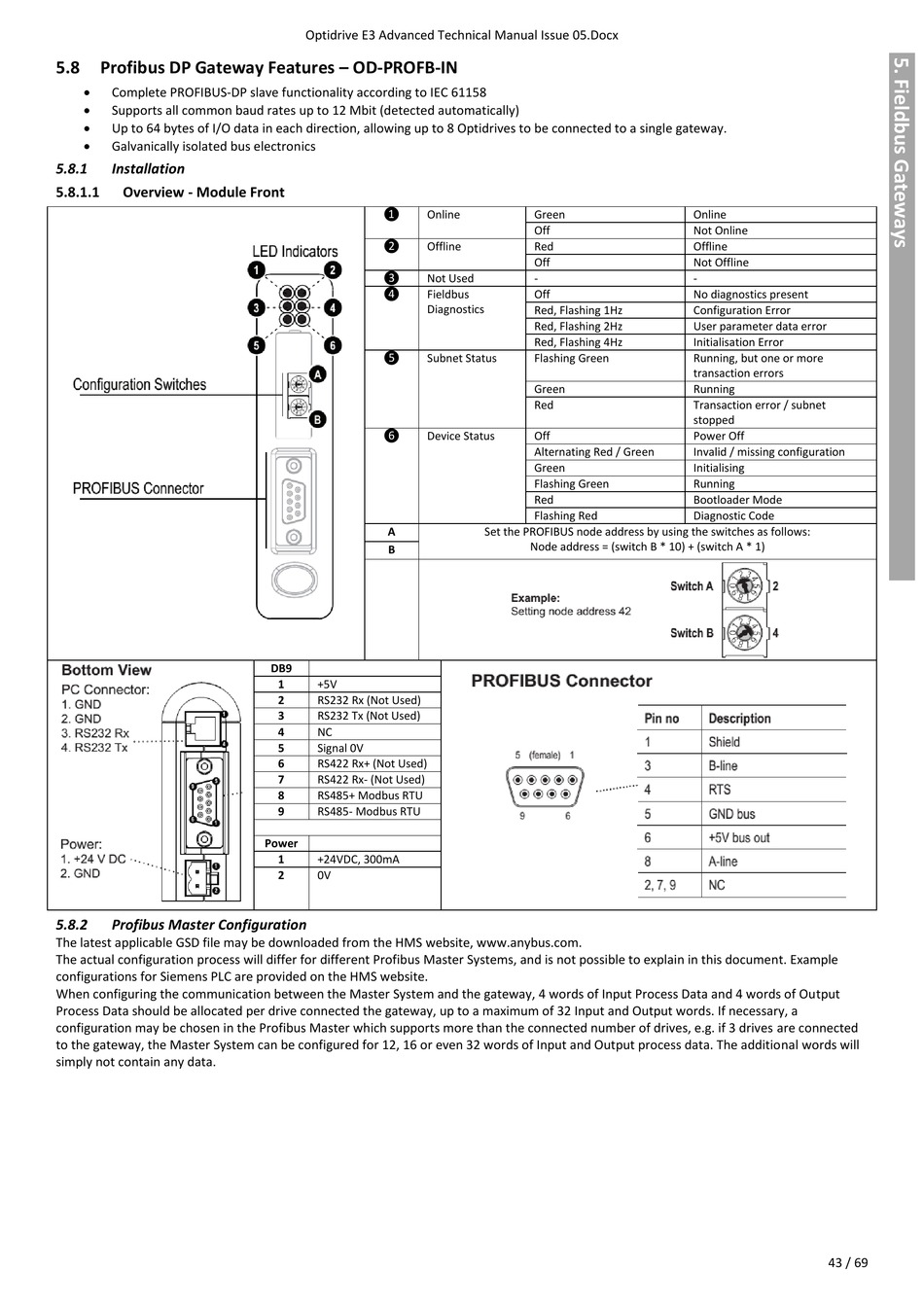

5.8 Profibus DP Gateway Features – OD-PROFB-IN

Complete PROFIBUS-DP slave functionality according to IEC 61158

Supports all common baud rates up to 12 Mbit (detected automatically)

Up to 64 bytes of I/O data in each direction, allowing up to 8 Optidrives to be connected to a single gateway.

Galvanically isolated bus electronics
5.8.1 Installation
5.8.1.1 Overview - Module Front
5.8.2 Profibus Master Configuration
The latest applicable GSD file may be downloaded from the HMS website, www.anybus.com.
The actual configuration process will differ for different Profibus Master Systems, and is not possible to explain in this document. Example
configurations for Siemens PLC are provided on the HMS website.
When configuring the communication between the Master System and the gateway, 4 words of Input Process Data and 4 words of Output
Process Data should be allocated per drive connected the gateway, up to a maximum of 32 Input and Output words. If necessary, a
configuration may be chosen in the Profibus Master which supports more than the connected number of drives, e.g. if 3 drives are connected
to the gateway, the Master System can be configured for 12, 16 or even 32 words of Input and Output process data. The additional words will
simply not contain any data.
Optidrive E3 Advanced Technical Manual Issue 05.Docx
❶ Online
❷ Offline
❸ Not Used
❹ Fieldbus
Diagnostics
❺ Subnet Status
❻ Device Status
A
B
DB9
1 +5V
2 RS232 Rx (Not Used)
3 RS232 Tx (Not Used)
4 NC
5 Signal 0V
6 RS422 Rx+ (Not Used)
7 RS422 Rx- (Not Used)
8 RS485+ Modbus RTU
9 RS485- Modbus RTU
Power
1 +24VDC, 300mA
2 0V
Green
Off
Red
Off
-
Off
Red, Flashing 1Hz
Red, Flashing 2Hz
Red, Flashing 4Hz
Flashing Green
Green
Red
Off
Alternating Red / Green
Green
Flashing Green
Red
Flashing Red
Set the PROFIBUS node address by using the switches as follows:
Node address = (switch B * 10) + (switch A * 1)
Online
Not Online
Offline
Not Offline
-
No diagnostics present
Configuration Error
User parameter data error
Initialisation Error
Running, but one or more
transaction errors
Running
Transaction error / subnet
stopped
Power Off
Invalid / missing configuration
Initialising
Running
Bootloader Mode
Diagnostic Code
