Mechanical Installation

3 Mechanical Installation

3.1 Unpacking

3.1.1 Items Supplied
Items supplied may vary according to product configu-
ration.
•
Make sure the items supplied and the information
on the nameplate correspond to the order confir-
mation.
•
Check the packaging and the adjustable
frequency drive visually for damage caused by
inappropriate handling during shipment. File any
claim for damage with the carrier. Retain
damaged parts for clarification.
VLT
Midi Drive
1
www.danfoss.com
2
T/C: FC-280PK55T4E20H1BXCXXXSXXXXA6
3
P/N: 134U2993 S/N: 000000G000
0.55kW 0.75HP
4
IN: 3x380-480V 50/60Hz, 1.6/1.3A
OUT: 3x0-Vin 0-500Hz, 1.7/1.6A (Tamb. 45˚C)
5
Enclosure: CHASSIS/IP20
6
76X1 E134261 Ind.contr.Eq. See manual for prefuse
US LISTED
R
CAUTION:
SEE MANUAL
WARNING:
STORED CHARGE DO NOT TOUCH UNTILL 4 MIN. AFTER
DISCONNECTION
RISK OF ELECTRIC SHOCK-DUAL SUPPLY DISCONNECT MAINS
AND LOADSHARING BEFORE SERVICE
11
1 Type code
2 Order number
3 Power rating
Input voltage, frequency and current (at low/high
4
voltages)
Output voltage, frequency and current (at low/high
5
voltages)
6 Enclosure type and IP rating
7 Disposal
8 CE mark
9 Serial number
10 Functional safety
11 Rated ambient temperature
12 Discharge time (Warning)

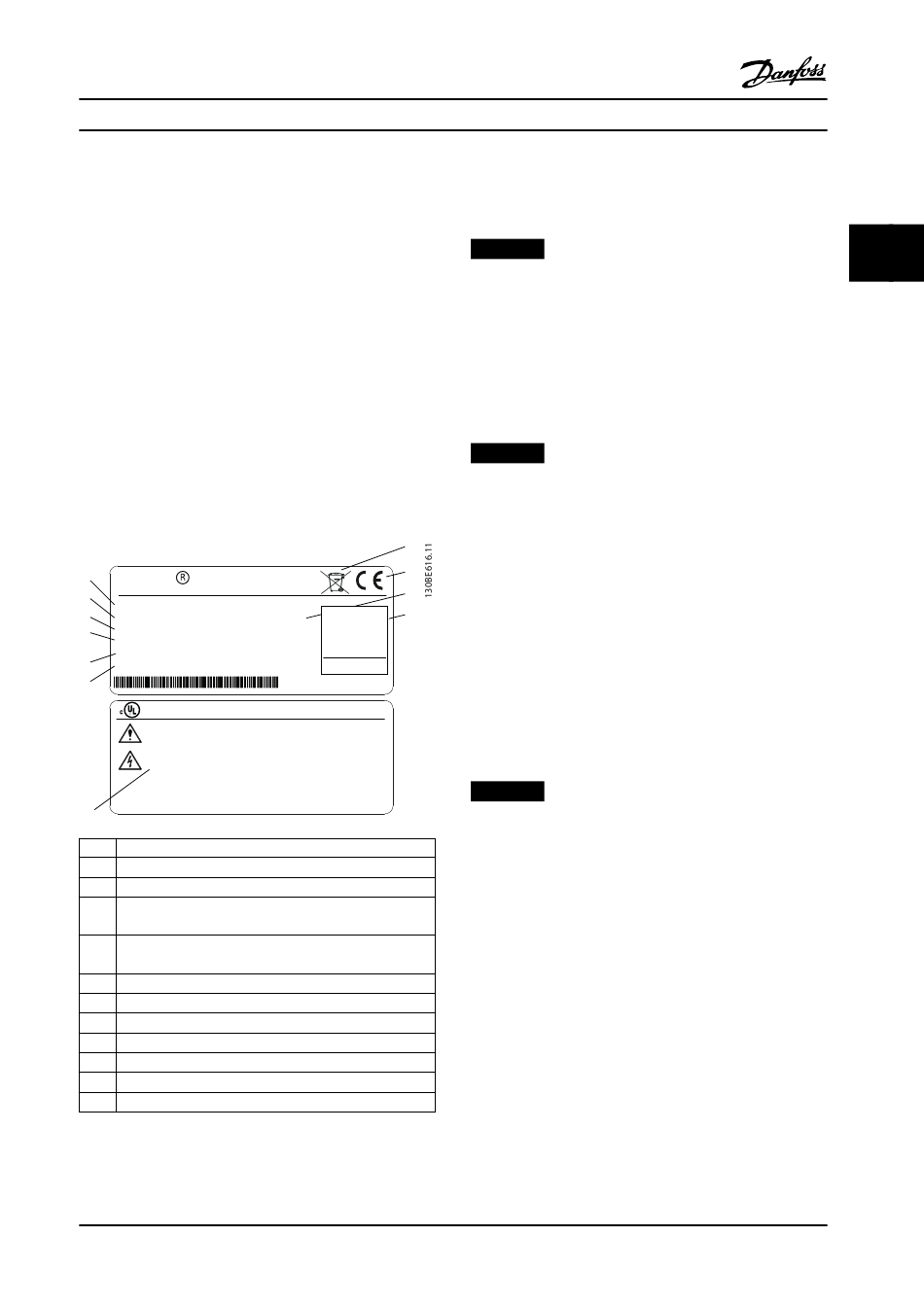

Figure 3.1 Product Nameplate (Example)
MG07A122
Instruction Manual
7
8
9
Functional
10
Safety
Type
Approved
www.tuv.com
ID 1234567890
MADE BY DANFOSS IN CHINA
Danfoss A/S © 11/2015 All rights reserved.
NOTICE!
Do not remove the nameplate from the adjustable
frequency drive (loss of warranty).
3.1.2 Storage
Ensure that requirements for storage are fulfilled. Refer to
chapter 9.4 Ambient Conditions for further details.

3.2 Installation Environment

NOTICE!
In environments with airborne liquids, particles or
corrosive gases, ensure that the IP/Type rating of the
equipment matches the installation environment. Failure
to meet requirements for ambient conditions can reduce
lifetime of the adjustable frequency drive. Ensure that
requirements for air humidity, temperature and altitude
are met.
Vibration and shock
The adjustable frequency drive complies with requirements
for units mounted on the walls and floors of production
premises, as well as in panels bolted to walls or floors.
For detailed ambient conditions specifications, refer to
chapter 9.4 Ambient Conditions.

3.3 Mounting

NOTICE!
Improper mounting can result in overheating and
reduced performance.
Cooling
•
Ensure 100 mm (4 in) of top and bottom
clearance for air cooling.
Lifting
•
To determine a safe lifting method, check the
weight of the unit, see chapter 9.9 Enclosure Sizes,
Power Ratings and Dimensions.
•
Ensure that the lifting device is suitable for the
task.
•
If necessary, plan for a hoist, crane or forklift with
the appropriate rating to move the unit.
•
For lifting, use hoist rings on the unit, when
provided.
3 3
