Application Examples
7.1.6 SLC
FC
+24 V 12
+24 V
13
D IN 18
D IN 19
D IN 27
D IN 29
D IN 32
D IN 33
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
01
02
03

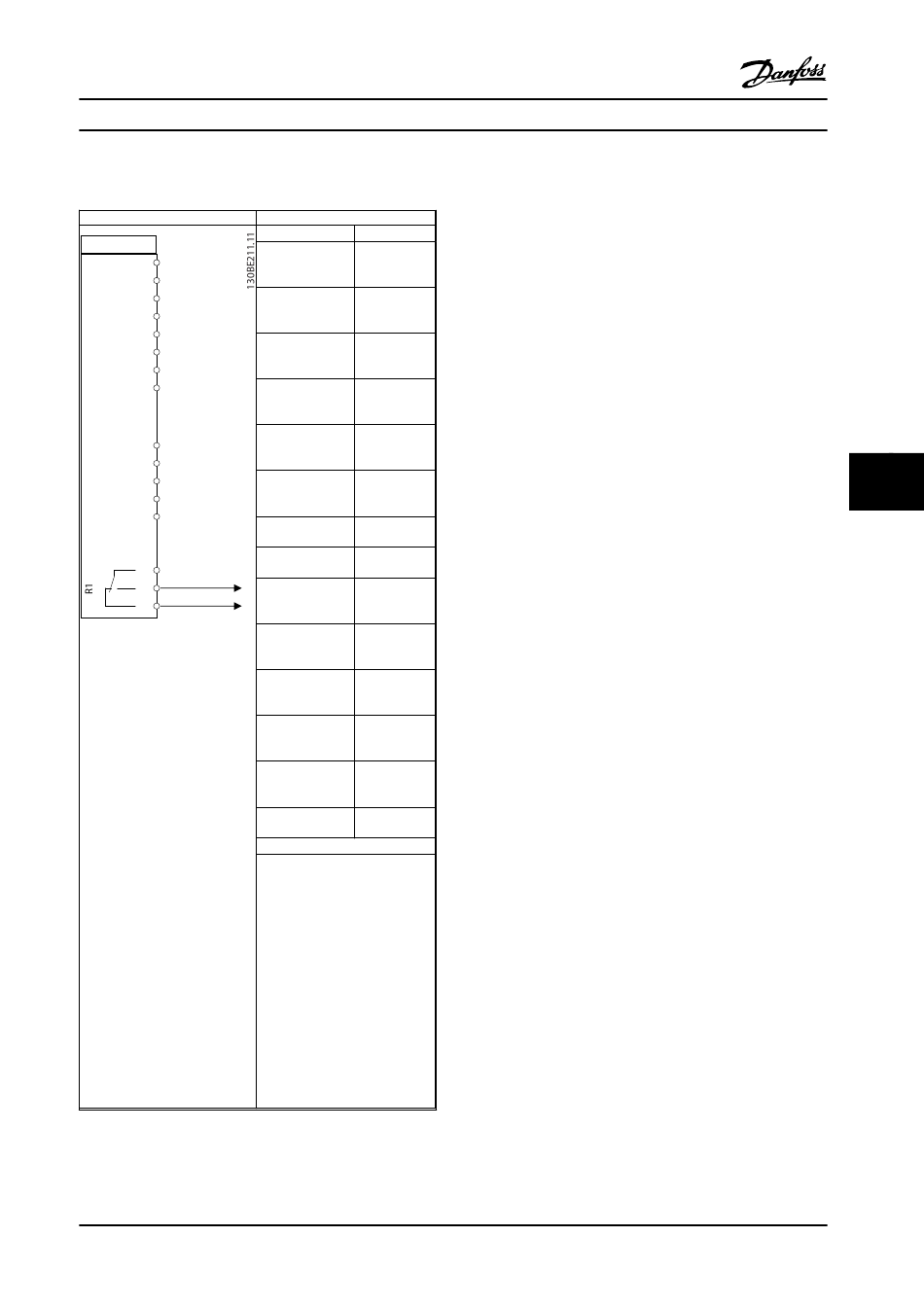

Table 7.9 Using SLC to Set a Relay
MG07A122
Instruction Manual
Parameters
Function Setting
Parameter 4-30
Motor Feedback [1] Warning
Loss Function
Parameter 4-31
Motor Feedback 50
Speed Error
Parameter 4-32
Motor Feedback 5 s
Loss Timeout
Parameter 7-00 S
[1] 24V
peed PID
encoder
Feedback Source
Parameter 5-70 T
erm 32/33 Pulses 1024*
Per Revolution
Parameter 13-00
SL Controller [1] On
Mode
Parameter 13-01
[19] Warning
Start Event
Parameter 13-02
[44] Reset key
Stop Event
Parameter 13-10
[21] Warning
Comparator
no.
Operand
Parameter 13-11
Comparator *[1] ≈
Operator
Parameter 13-12
Comparator 61
Value
Parameter 13-51
[22]
SL Controller
Comparator 0
Event
Parameter 13-52 [32] Set
SL Controller digital out A
Action low
Parameter 5-40 F [80] SL digital
unction Relay output A
* = Default value
Notes/comments:
If the limit in the feedback
monitor is exceeded, warning
61 feedback monitor is issued.
The SLC monitors warning 61
feedback monitor. If warning 61
feedback monitor becomes true,
relay 1 is triggered.
External equipment could
indicate that service is required.
If the feedback error goes
below the limit again within 5
s, the adjustable frequency
drive continues and the
warning disappears. But relay 1
persists until [Off/Reset] is
pressed.
