Commissioning
1
2
A
4
6
5 5
B
7
10 C
On
15
16
17
D
18

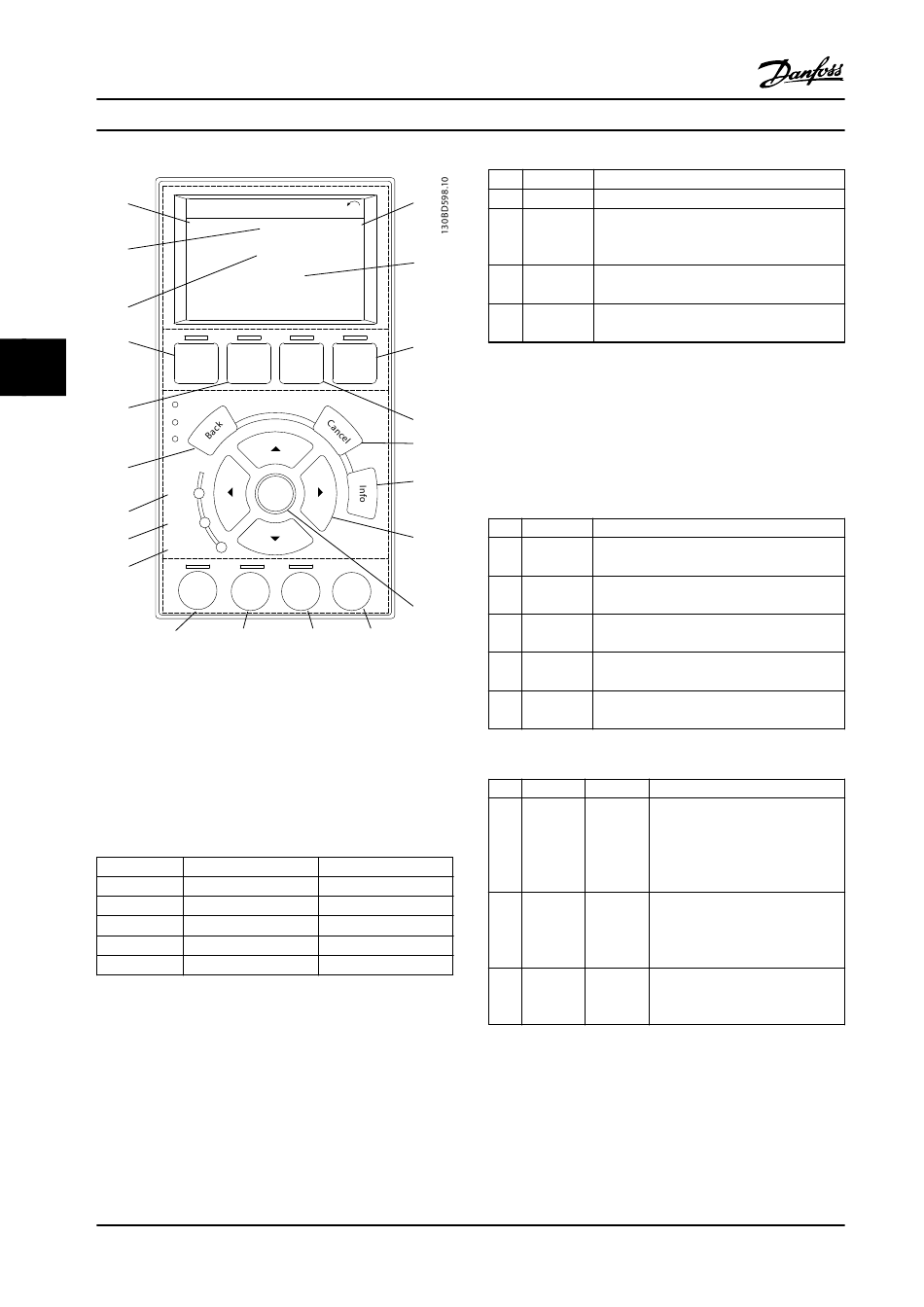

Figure 5.8 Graphic Local Control Panel (GLCP)
A. Display area
The display area is activated when the frequency converter
receives power from the mains voltage, a DC bus terminal
or an external 24 V DC supply.
The information displayed on the LCP can be customized
for user application. Select options in the Quick Menu
Q3-13 Display Settings.
Display
1
2
3
4
5
Table 5.8 Legend to Figure 5.8, Display Area
B. Display menu keys
Menu keys are used for menu access for parameter set-up,
toggling through status display modes during normal
operation and viewing fault log data.
26
Status
7.83 A 36.4 kW
799 RPM
0.000
53.2 %
Auto Remote Ramping
Quick Main Alarm
Status
Menu Menu
OK
Warn.
Alarm
Hand Auto
Reset
Off
on on
19 20
Parameter number
0-20 [1602] Reference [%]
0-21 [1614] Motor Current
0-22 [1610] Power [kW]
0-23 [1613] Frequency
0-24 [1502] kWh Counter
Danfoss A/S © 11/2015 All rights reserved.
®
VLT Midi Drive FC 280
6
3
1(1)
7
5
8
9
9
Table 5.9 Legend to Figure 5.8, Display Menu Keys
Log
C. Navigation keys and LEDs
Navigation keys are used for programming functions and
8
moving the display cursor. The navigation keys also
11
provide speed control in local operation. There are also
three adjustable frequency drive status indicator lights in
12
this area.
13
10
11
14
12
21
13
14
Table 5.10 Legend to Figure 5.8, Navigation Keys
15
Default setting
16
17
Table 5.11 Legend to Figure 5.8, Indicator Lights (LEDs)
Key Function
Status Shows operational information.
Quick Allows access to programming parameters
Menu for initial set-up instructions and many
detailed application instructions.
Main Menu Allows access to all programming
parameters.
Alarm Log Displays a list of current warnings, the last 10
alarms and the maintenance log.
Key Function
Back Reverts to the previous step or list in the
menu structure.
Cancel Cancels the last change or command as long
as the display mode has not changed.
Info Press for a definition of the function being
displayed.
Navigation Use the four navigation keys to move
Keys between items in the menu.
OK Press to access parameter groups or to
enable a selection.
Indicator Light Function
On Green The ON light activates when the
frequency converter receives
power from the mains voltage, a
DC bus terminal or an external 24
V supply.
Warn. Yellow When warning conditions are met,
the yellow WARN light turns on
and text appears in the display
area identifying the problem.
Alarm Red A fault condition causes the red
alarm light to flash and an alarm
text is displayed.
MG07A122
