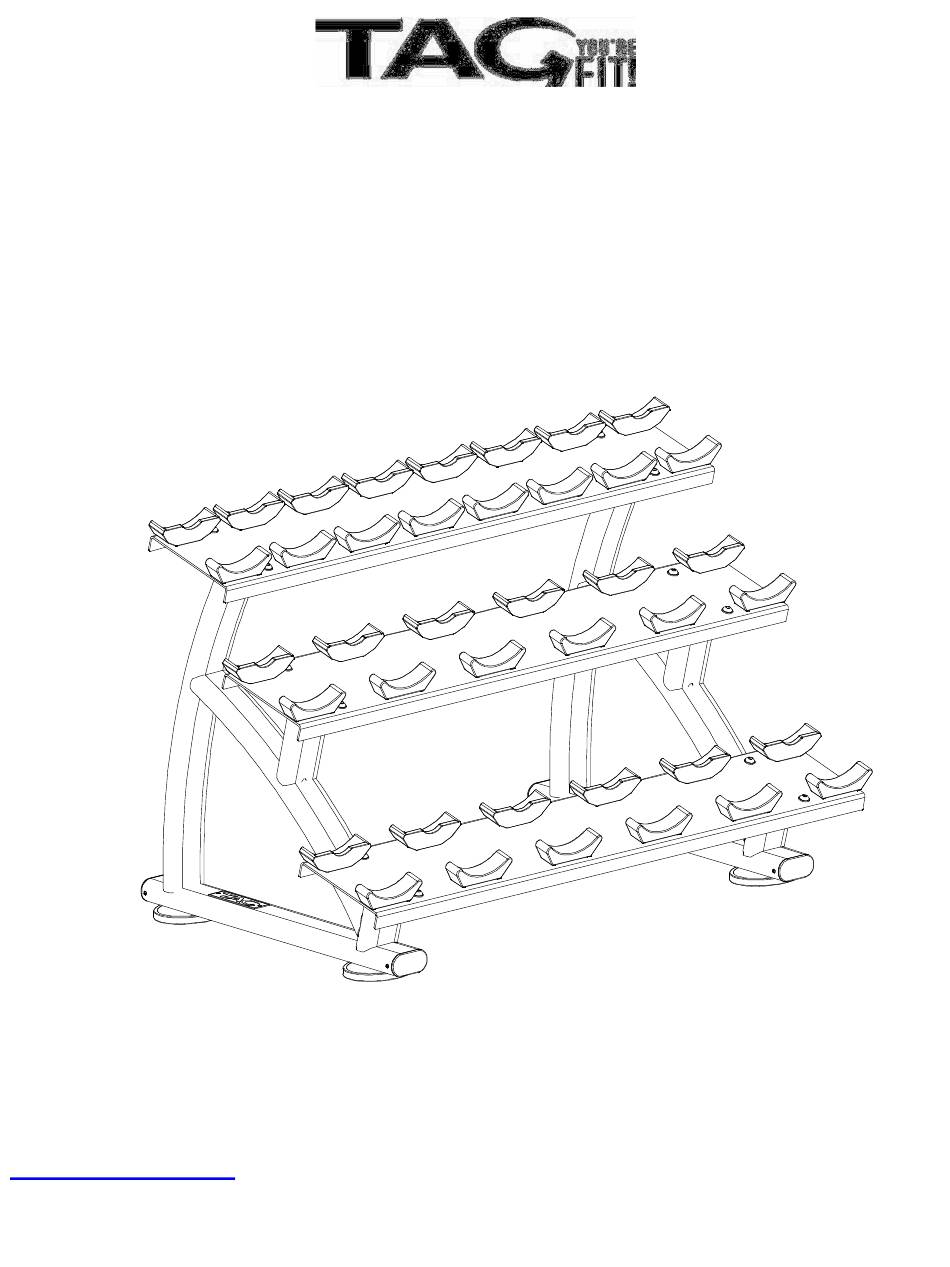

- Page 1 RCK-SD3.1 New Design TAG 3 Tier Dumbbell Rack with Saddles (10 pair) OWNER’S MANUAL & PARTS LIST www.tagfitness.net 630-375-1500...
-
Page 2: Part List
EXPLOAD DRAWING PART LIST Description Q’TY Description Q’TY Upright frame Hex Screw M8*15 Upper Cross frame Flat Washer Ф9*Ф16*1.6 Cross frame Flat Washer Ф13.5*Ф24*2.5 Saddle 166*46.5*67 Spring Washer Ф8 Saddle 158*47.5*40 Nut M8 Rubber Shone Nut M12 End Cap 50*100*2mm Screw ST4.2*16 Hex Bolt M8*15 Name Plate... - Page 3 STEP 1 Assemble Upright frame (1) and Cross frame (3) using Hex Bolt M12*15(9), Flat Washer Ф13.5*Ф24*2.5(12) and Nut M12 (15).Please don’t tighten all the bolts and nuts. STEP 2 Assemble Upright frame (1) and Cross frame (3) using Hex Bolt M12*15(9), Flat Washer Ф13.5*Ф24*2.5(12) and Nut M12 (15).Please don’t tighten all the bolts and nuts.
- Page 4 STEP 3 Assemble Upright frame (1) and Upper Cross frame (2) using Hex Bolt M12*15(9), Flat Washer Ф13.5*Ф24*2.5(12) and Nut M12 (15).Please tighten all the bolts and nuts.
