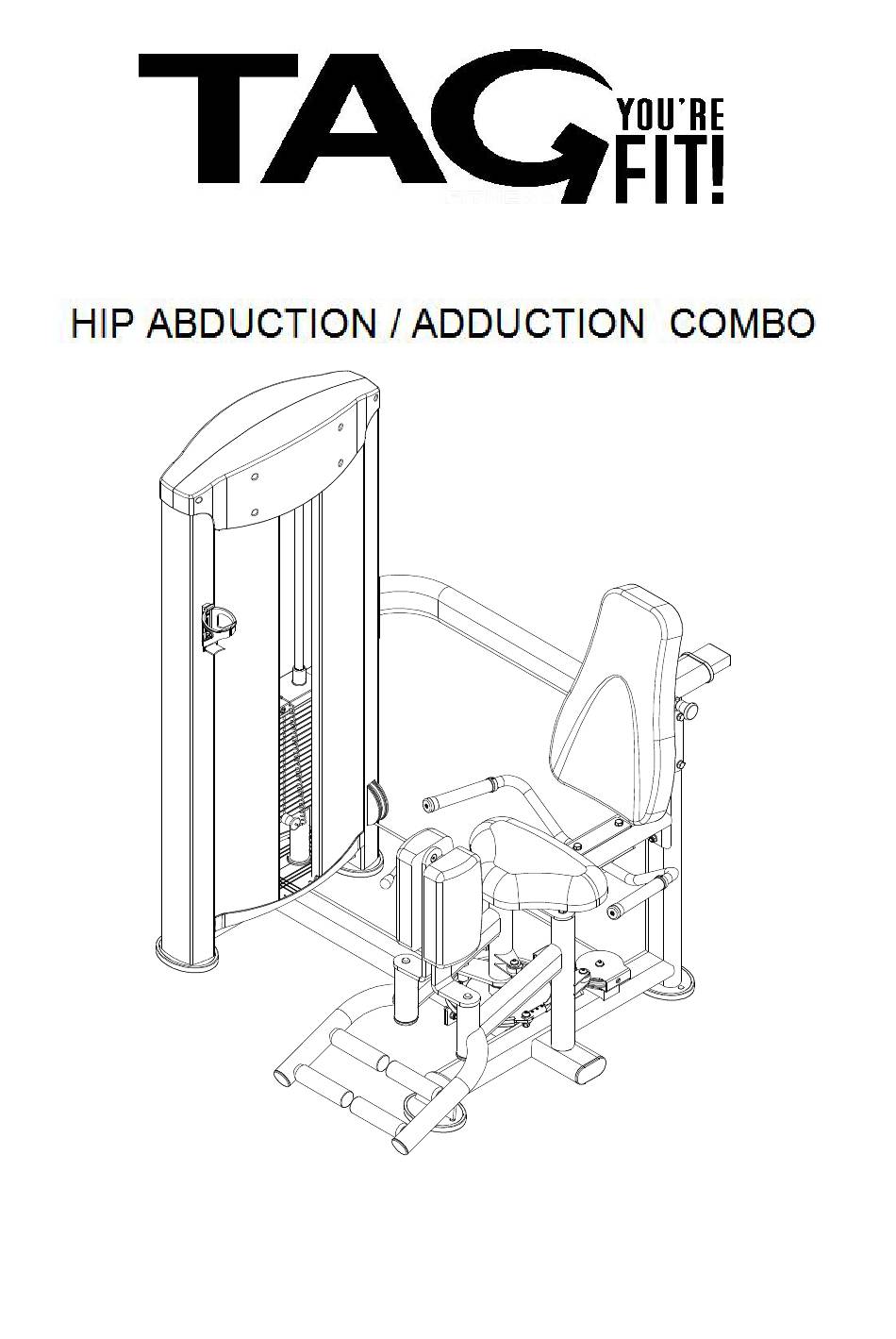

- Page 1 MODEL # S-Line 750 www.tagfitness.net 630-375-1500...
- Page 2 ABSTRACT PREVENTIVE MAINTENANCE..................3 SPECIFICATIONS OF THE PRODUCT ................3 SAFETY INFORMATIONS....................4 ASSEMBLY ........................5 Pictures and photos in this manual are merely illustrative. The company reserves the right to change specifications and design without notice. This manual may illustrate optional items which are not part of the equipment purchased. Read all the information applied to the product and the Manual/Guide that comes with it.
-
Page 3: Preventive Maintenance
PREVENTIVE MAINTENANCE SPECIFICATIONS OF THE PRODUCT Follow these guidelines to maintain perfect operation of the equipment. Note: For your convenience and quick access, the same information is applied in the product, sticker fixed on tower. -
Page 4: Safety Informations
SAFETY INFORMATIONS Before using the equipment, carefully read all the safety labels and warnings related to the equipment as well as all the instructions contained in this Guide or the Equipment Installation Guide and retain them in a safe place for future reference. It is the owner's responsibility to ensure that all users of the equipment are adequately informed about the safety precautions and use. -
Page 5: Assembly
ASSEMBLY STEP 1 Assemble Tower Frame (1) to Main Frame (2) using Connecting Tube (11) and Connecting Tube (10). To fix it use, 14 Flat Washer(75), 2 Spring Washer (93) 6 Lock Nuts Hex M10(79), 2 Hex Head Bolts M10x25(76), 2 Hex Head Bolts M10x125(78), 2 Hex Head Bolt M10x100(91) 1 Fixing Plate(28) and 1 Fixing Plate(27). - Page 6 STEP 2 Assembly Chain(30) to Adjusting Lever(13), and then fix to Right Swing Frame(5) using 1 Pan Head Allen Bolt M8x40(87), 4 Flat Washer(73), 1 Lock Nut Hex M8(86). Using the right tools tighten bolt and nut properly. Nº English description RIGHT SWING FRAME ADJUSTING LEVER CHAIN...
- Page 7 STEP 3 Assemble Handle Bar (14) to Seat Frame (3) using 2 Hex Head Bolt M10x75 (80), 4 Flat Washer (75), 1 Fixing Plate (28) and 2 Lock Nut Hex M10 (79). Fix Seat Cushion (39) using 2 Hex Head Bolt M10x25 (76), 2 Flat Washer (75).
- Page 8 STEP 4 Fix Back Cushion (23) Adjusting Tube (15) using 2 Hex Head Bolt M10x25 (76), 2 Flat Washer (75), Insert Adjusting Tube (15) into Main Frame (2) as shown. Nº English description MAIN FRAME ADJUSTING TUBE BACK CUSHION FLAT WASHER HEX HEAD BOLT M10x25...
- Page 9 STEP 5 Fix 2 Base Cover (54) to Tower Frame (1) using 4 Pan Head Phillips Bolt M6x15 (83) and using the right tools tighten properly the bolts. Fix 2 Front Side Face (52) into Tower Frame (1) using 8 Pan Head Phillips Bolt M6x15 (82). Nº...
- Page 10 STEP 6 Remove Cable (50) from Selector Shaft (18), remove 2 Pan Head Allen Bolt M10x25 (95), 2 Spring Washer (93) and 2 Flat Washer (75) from Guide-rod (26). Incline Guide-rod (26), as shown in the drawing above, and then remove the combination of Top Weight Stack (46) and Selector Shaft (18).
- Page 11 STEP 7 Fix 2 Side Face (52) in the back of Tower Frame (1) using 8 Pan Head Phillips Bolt M6x15 (83). Insert 2 Front Cover (55) and 1 Back Cover (56) into Tower Frame (1). Screw Bolt 60*M6 (36) on the front of Tower Frame (1), Fix 2 Front Cover (55) to Bolt 60*M6 (36) onto Tower Frame (1), using M6*20 Bolt (100), Big Washer (102), Small Washer (103), and extra Big Washer (103).
- Page 12 STEP 8 Put Top Cover (54) onto the top of Tower Frame(1). Nº English description TOWER FRAME TOP COVER...
- Page 13 STEP 9 Disassemble Pulley (63) and Pulley (64) then put the cable into Pulley (64) and Pulley (63). Install Pulley (64) to Main Frame (2) using 1 Pan Head Allen Bolt M10x50 (84), 1 Flat Washer (75). Assemble Pulley (63) in the pulley support using 1 Pan Head Allen Bolt M10x65 (96), 1 Flat Washer (79).
