TAG G8550FT Owner's Manual & Parts List

TAG G8550FT Owner's Manual & Parts List

Functional trainer

Advertisement

Quick Links

www.tagfitness.net
Phone# 630-375-1500

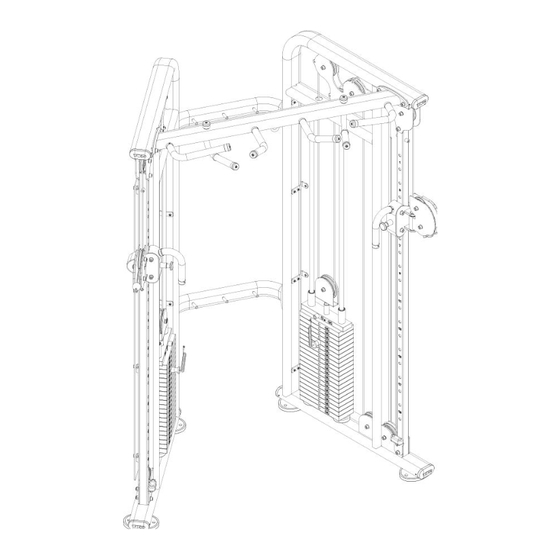

G8550FT FUNCTIONAL TRAINER
OWNER'S MANUAL&PARTS LIST

Advertisement

loading
Need help?

Need help?

Do you have a question about the G8550FT and is the answer not in the manual?

Questions and answers

Summary of Contents for TAG G8550FT

  • Page 1 G8550FT FUNCTIONAL TRAINER OWNER’S MANUAL&PARTS LIST www.tagfitness.net Phone# 630-375-1500...
  • Page 3: Parts List

    PARTS LIST Part No. Description Q’ty Part No. Description Q’ty Left Main Frame Bearing 61804ZZ Right Main Frame Pulley Φ95*24 Rear Cross Frame End Cap PT50*100*3 Upper Cross Frame Foam Grip Φ24*3*345 Left Sliding Frame Foam Grip Φ24*3*160 Right Sliding Frame Foam Grip Φ24*3*290 Front Wheel Bracket Washer Φ11*Φ20*2...
  • Page 4 FUNCTIONAL TRAINER...
  • Page 5 Accessory List Part No. Description Q’ty Part No. Description Q’ty Handle Bar Chains Lifting Rod Hand Grip Tricep Rope Hook Ankle Straps...
  • Page 6 Assembly Step 1 Please Connect Left Main Frame (1), Right Main Frame (2),Rear Cross Frame (3), Upper Cross frame (4) and Rear Upper Cross Frame (33), using Hex Round Bolt (44) and Washer (43).
  • Page 7 Assembly Step 1 Please loosen Hex Cone Set Screw (62) and take Bush (12) off; After leaning Guide Shaft (10), take Cover (15) out.
  • Page 8 Assembly Step 3 Please place Weight Plate (14), 20 pieces for each side.
  • Page 9 Assembly Step 4 Please put Cover (15) to the place as the picture shows; Keep the Guide Shaft upright and put Bush (12) onto Guide Shaft; Use Hex Cone Set Screw (62) to tighten it and keep it not to lean; It is the same with another side.
  • Page 10 Assembly Step 5 Please put Cover to the place as the picture shows.
