MODEL # S-Line 772
Weight Assisted Chin Dip
www.tagfitness.net
630-375-1500

Advertisement

loading
Need help?

Need help?

Do you have a question about the S-Line 772 and is the answer not in the manual?

Questions and answers

Related Manuals for TAG S-Line 772

Summary of Contents for TAG S-Line 772

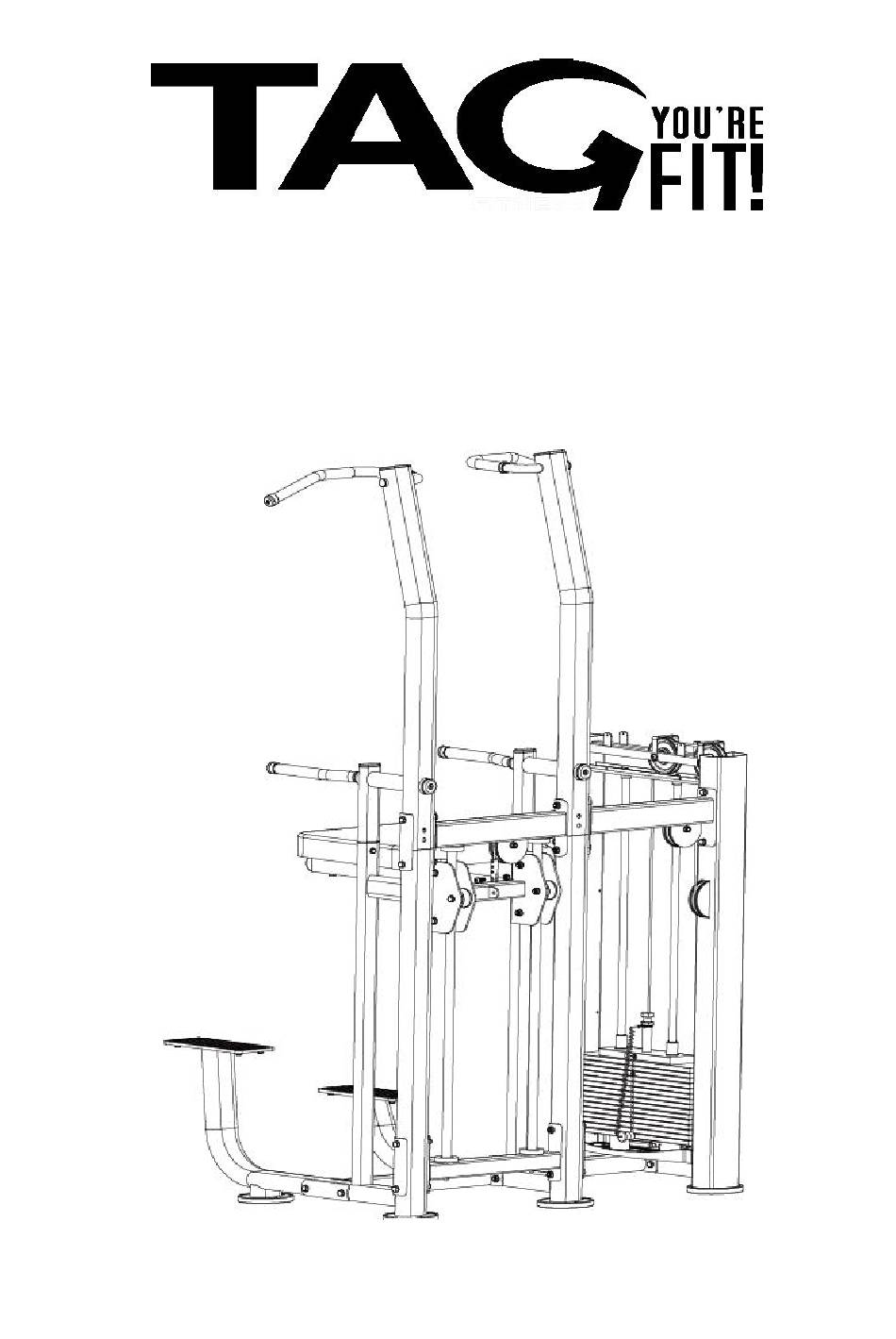

  • Page 1 MODEL # S-Line 772 Weight Assisted Chin Dip www.tagfitness.net 630-375-1500...

  • Page 2: Safety Informations

    SAFETY INFORMATIONS Before using the equipment, carefully read all the safety labels and warnings related to the equipment as well as all the instructions contained in this Guide or the Equipment Installation Guide and retain them in a safe place for future reference. It is the owner's responsibility to ensure that all users of the equipment are adequately informed about the safety precautions and use.
  • Page 3 ASSEMBLY STEP 1 40 70 40 70 Connect the 2 handlebar(19), 1 to left upper frame(4) and 1 to right upper frame(5), using 2 round head Allen bolt M10x15(74), 2 ending cap(49) and 2 flat head Allen bolt M8x15(70) and using right tools tighten bolts properly.
  • Page 4 STEP 2 52 72 52 72 72 52 Assemble the connecting tube(7) to the left lower frame(3) and right lower frame(2). To fix use 4 hex head bolt M10x125(53), 8 flat washer(52) and 4 lock nut hex M10(72). Do not tighten the bolts and nuts in this step.
  • Page 5 STEP 3 52 72 72 52 52 53 52 54 72 52 52 72 72 52 72 52 53 52 Assemble the connecting tube(9) to the tower frame(1), using 2 hex head bolt M10x100(54), 4 flat washer(52), 1 fixing plate(18) and 2 lock nut hex M10(72). Then assemble the connecting tube(9) to the left lower frame(2) and connecting tube(6), using 2 hex head bolt M10x125(53), 4 flat washer(52) and 2 lock nut hex M10(72).
  • Page 6 STEP 4 Connect the left upper frame(4) to the left lower frame(2), using 2 hex head bolt M10x15(66) and 2 flat washer(65). Assemble the right upper frame(5) and right lower frame(3), using 2 hex head bolt M10x15(66) and 2 flat washer(65). Do not tighten the bolts in this step. English description LEFT LOWER FRAME RIGHT LOWER FRAME...
  • Page 7 STEP 5 nsert 2 movement guides(15) to the connecting tube(7) using 2 flat washer(52) and 2 pan head Allen bolt M10x20(61). Insert 2 shock absorber rubber(41), sliding frame(11), and 2 shock absorber rubber(41). Do not tighten the bolts. English description CONNECTING TUBE SLIDING FRAME MOVEMENT GUIDE...
  • Page 8 STEP 6 nsert the cable(50) into connecting tube(10) and connecting tube(8) and fix the pulleys. Assemble the connecting tube(10) to the tower frame(1), using 2 hex head bolt M10x25(64), 2 spring washer(62) and 2 flat washer(52). Then assemble the connecting tube(10) to the left upper frame(4) and connecting tube(8), using 2 hex head bolt M10x125(53), 4 flat washer(52) and 2 lock nut hex M10(62).
  • Page 9 STEP 7 Assemble 2 base cover(23) to the tower frame(1) using 4 pan head Phillips bolt M6x15(75) and using the right tools tighten bolts properly. English description TOWER FRAME BASE COVER PAN HEAD PHILLIPS BOLT M6X15...
  • Page 10 STEP 8 Remove the cable(50) from selector shaft(31) and remove 2 spring washer(62), 2 flat washers(52) and 2 pan head Allen bolt M10x25(63) from guide-rod(16). Incline the guide-rod(16) as shown in the drawing and then remove the combination of the top weight stack(30) and selector shaft(31).
  • Page 11 STEP 9 Assemble the terminal already locked in the cable with the sliding frame(11) using hex head bolt M10x30(60) and 1 lock nut hex M10(72) and using right tool tighten bolt and nut properly. English description CABLE SLIDING FRAME HEX HEAD BOLT M10X30 LOCK NUT HEX M10...
  • Page 12 STEP 10 Fix 4 side faces(24) in the tower frame(1) using 8 pan head Phillips bolt M6x15(75), 2 in the front and 2 in the back and using the right tools tighten bolts properly. Insert 2 front covers(25) and 1 back cover(26) in the tower frame(1).
  • Page 13 PROCEDURE TO ASSEMBLY THE UP COVER 1º Insert two screws M6x15(2) one in each side as show the image. Adjust the screws, but not tighten completely. 2º Using your fingers thumbs, adjust the top of the cover and pay attention to press exactly upon the 4 mortises, as show the image.

  • Page 14: Completed Assembly

    Front cover Rear cover Insert the covers on the top of tower and tighten the others screws, as the image. English description TOP COVER PAN HEAD, PHILLIPS BOLT M6x15 COMPLETED ASSEMBLY...
