TAG S-Line 756 Manual
  1. Manuals
  2. Brands
  3. TAG Manuals
  4. Fitness Equipment
  5. S-Line 756
  6. Manual

TAG S-Line 756 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
MODEL # S-Line 756
PEC/DELT COMBO
www.tagfitness.net
630-375-1500

Advertisement

loading
Need help?

Need help?

Do you have a question about the S-Line 756 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TAG S-Line 756

Summary of Contents for TAG S-Line 756

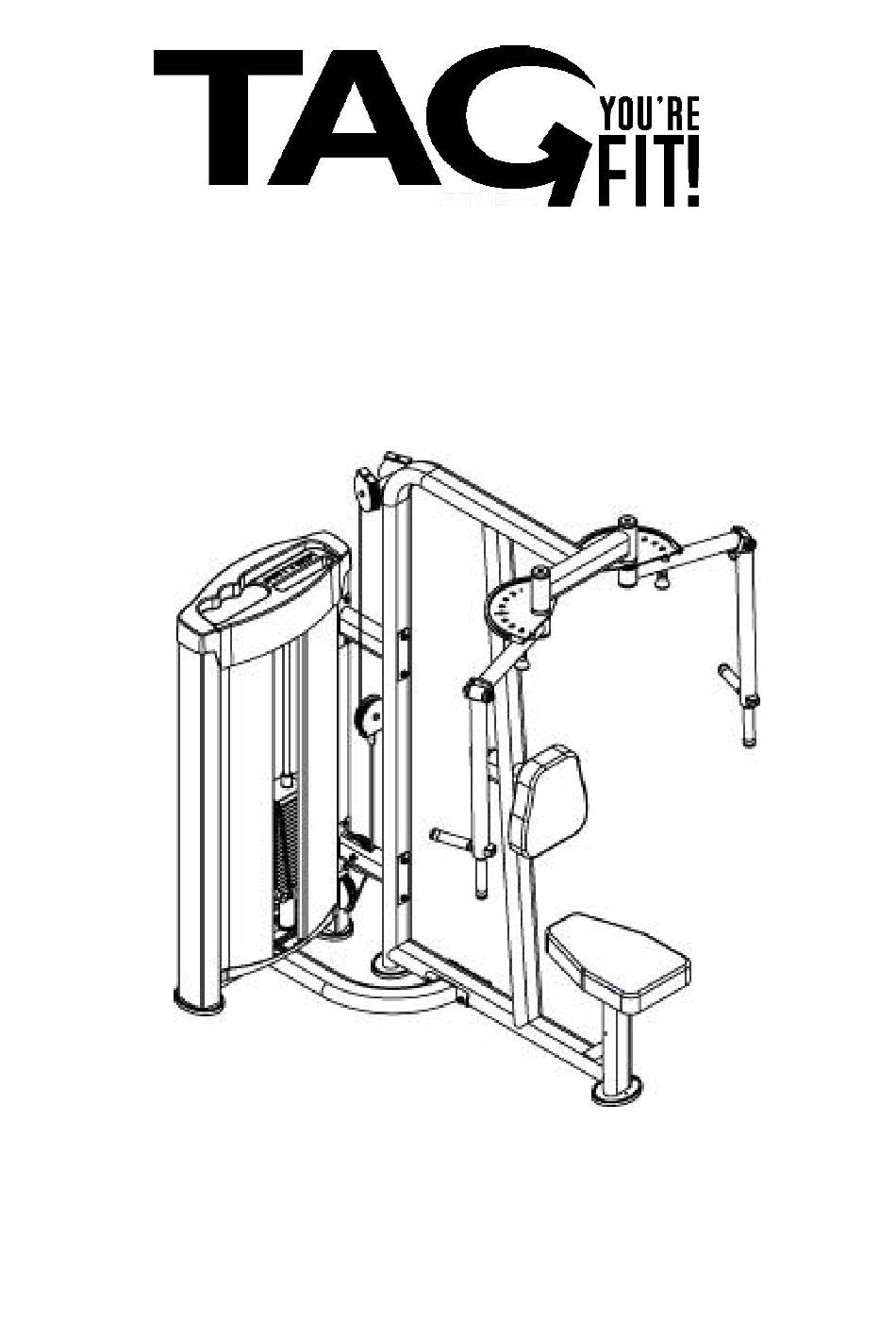

  • Page 1 MODEL # S-Line 756 PEC/DELT COMBO www.tagfitness.net 630-375-1500...
  • Page 2 ABSTRACT PREVENTIVE MAINTENANCE................3 SPECIFICATIONS OF THE PRODUCT..............3 SAFETY INFORMATIONS..................4 ASSEMBLY........................5 Pictures and photos in this manual are merely illustrative. The company reserves the right to change specifications and design without notice. This manual may illustrate optional items which are not part of the equipment purchased.
  • Page 3 PREVENTIVE MAINTENANCE SPECIFICATIONS OF THE PRODUCT Follow these guidelines to maintain perfect operation of the equipment. Note: For your convenience and quick access, the same information is applied in the product, sticker fixed on tower.

  • Page 4: Safety Informations

    SAFETY INFORMATIONS Before using the equipment, carefully read all the safety labels and warnings related to the equipment as well as all the instructions contained in this Guide or the Equipment Installation Guide and retain them in a safe place for future reference. It is the owner's responsibility to ensure that all users of the equipment are adequately informed about the safety precautions and use.
  • Page 5 ASSEMBLY STEP 1 75 82 21 82 83 75 82 21 82 83 82 83 Assemble the tower frame (1) to the main frame (2) using connecting tube (4), connecting tube (5) and connecting tube(6). Fix it using 2 hex head bolt M10x125(77), 2 hex head bolt M10x100(76), 2 hex head bolt M10x25(74), 2 hex head bolt M10x75(75), 20 flat washer(82), 4 spring washer(81) and 8 lock nut hex M10(83), 3 fixing plate(21) and 1 fixing plate (22).
  • Page 6 STEP 2 Fix 2 base cover (42) to the tower frame (1) using 4 pan head Phillips bolt M6x15 (64) and using the right tools tighten properly the bolts. Nº English description TOWER FRAME BASE COVER PAN HEAD PHILLIPS BOLT M6X15...
  • Page 7 STEP 3 Remove cable (34) from selector shaft (26), remove 2 pan head Allen bolt M10x25 (69), 2 spring washer (81) and 2 flat washers (82) from guide-rod (23). Incline the guide-rod (23), as shown in the drawing above and then, remove the combination top weight stack (24) and selector shaft (26).
  • Page 8 STEP 4 Insert 2 axis (8) into main frame (2). Insert in the 2 axis(50) 2 special washer(20), right cam(11), left cam(10), and sets of right handle frame and left handle frame (7 e 12) pay attention the position in the drawing, step by step,using 2 circlip (56), 4 ending cap(30) and 4pan head Allen bolt M8x25(67).
  • Page 9 STEP 5 Fix the cable(34) in the pulley support(16), insert the cable (35) through the pulley support(16) and the pulley support already fixed in the main frame(2), fix in the left cam(10) and right cam(11). Assemble the seat cushion(53) and back cushion(54) on the main frame(2) and seat frame(9), use 4 pan head Allen bolt M10x25(74) and 4 flat washer(82) to fix it and using right tools tighten bolts and nuts properly.

  • Page 10: Completed Assembly

    STEP 6 64 64 64 64 Fix 4 side faces (45) in the tower frame (1) using 16 pan head Phillips bolt M6x15 (64), 2 in the front and 2 in the back. Using right tools tighten bolts properly. Insert 2 front cover (43) in the front side of the tower frame (1). Insert the back cover (44), in the back side of the tower frame (1).
