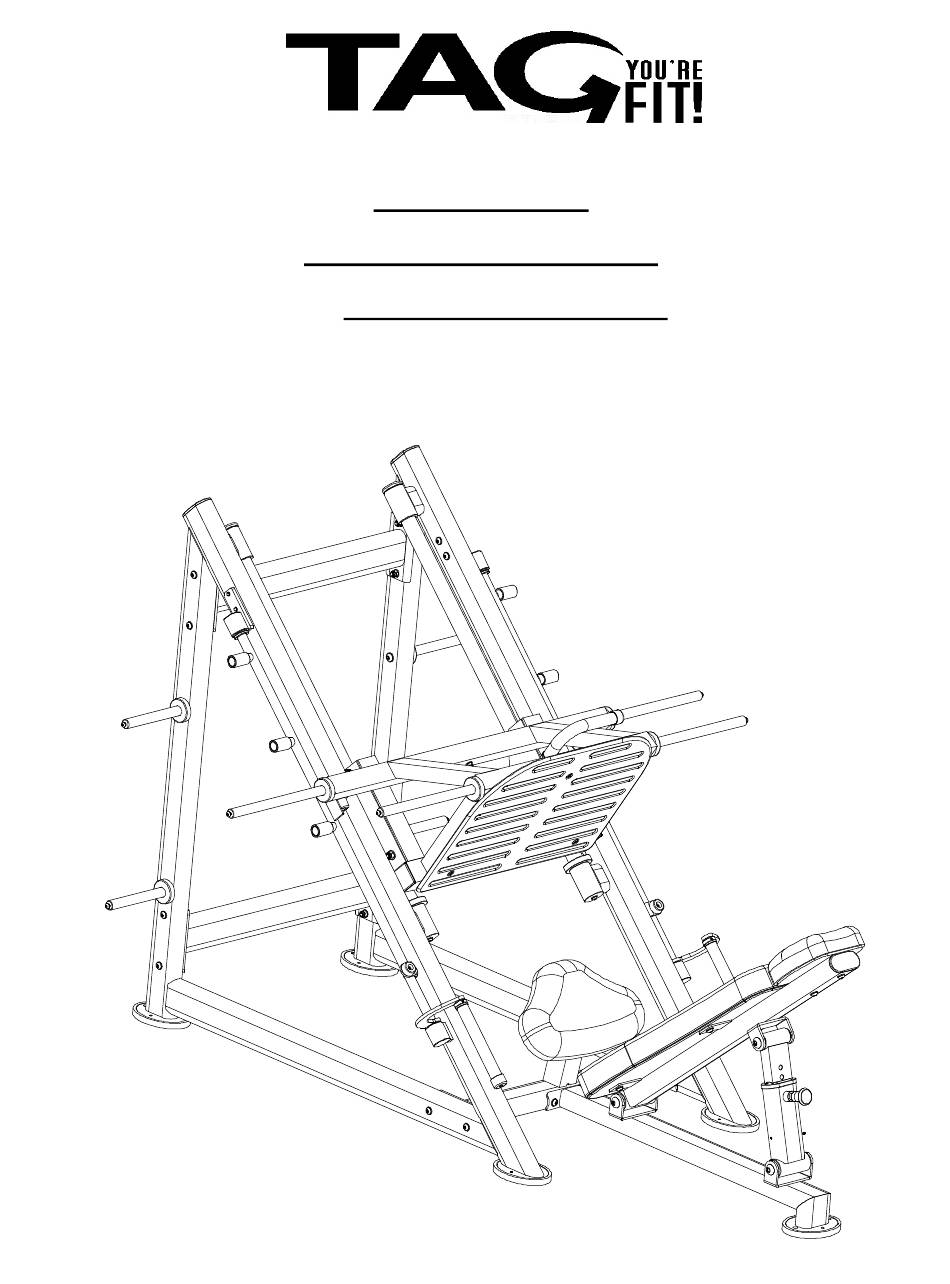

- Page 1 MODEL # LEGPRS TAG FITNESS 688 LEG PRESS ASSEMBLY INSTRUCTIONS...
- Page 2 EXPLODED DRAWING & PARTS LIST...
- Page 3 PARTS LIST DESCRIPTION Q’TY DESCRIPTION Q’TY LEFT FRAME HANDLE SLEEVE RIGHT FRAME SLEEVE BACK FRAME BUSHING CAP INNER ADJUSTING TUBE BARBELL AXIS SEAT ADJUSTING FRAME BARBELL AXIS CONNECTING TUBE WEIGHT SUPPORT OUTER ADJUSTING TUBE LOCK NUT HEX M10 KNOB HEX HEAD BOLT M10x125 STOPPER PAD HEX HEAD BOLT M10x25 AXIS...
- Page 4 ASSEMBLY STEP1 Assemble the left frame(1) to the right frame(2) using seat frame(28) and 2 connecting tube(6) using 24 flat washer(19), 12 hex head bolt M10x75(36) 4 fixing plate(35)and 12 lock nut hex M10(45). Adjust the equipment and using the right tools tighten bolts and nuts properly. 21 19 21 19 21 19...
- Page 5 STEP3 Connect the back cushion(33) and cushion(34) to the back frame(3), using 6 flat washer(19), 4 hex head bolt M10x25(47) and 2 hex head bolt M10x70(22).Slide the inner adjusting tube(4) to the outer adjusting tube(7). Insert the knob (8) and tighten the boatman head Allen bolt (58). Fix the seat adjusting frame (3) in the seat frame (28) using 2 head bolt M10x125 (46), 4 flat washer (19), 1 fixing plate (36) and 2 lock nut hex M10 (45).Usingtherighttoolstightenbolts and nutsproperly.
