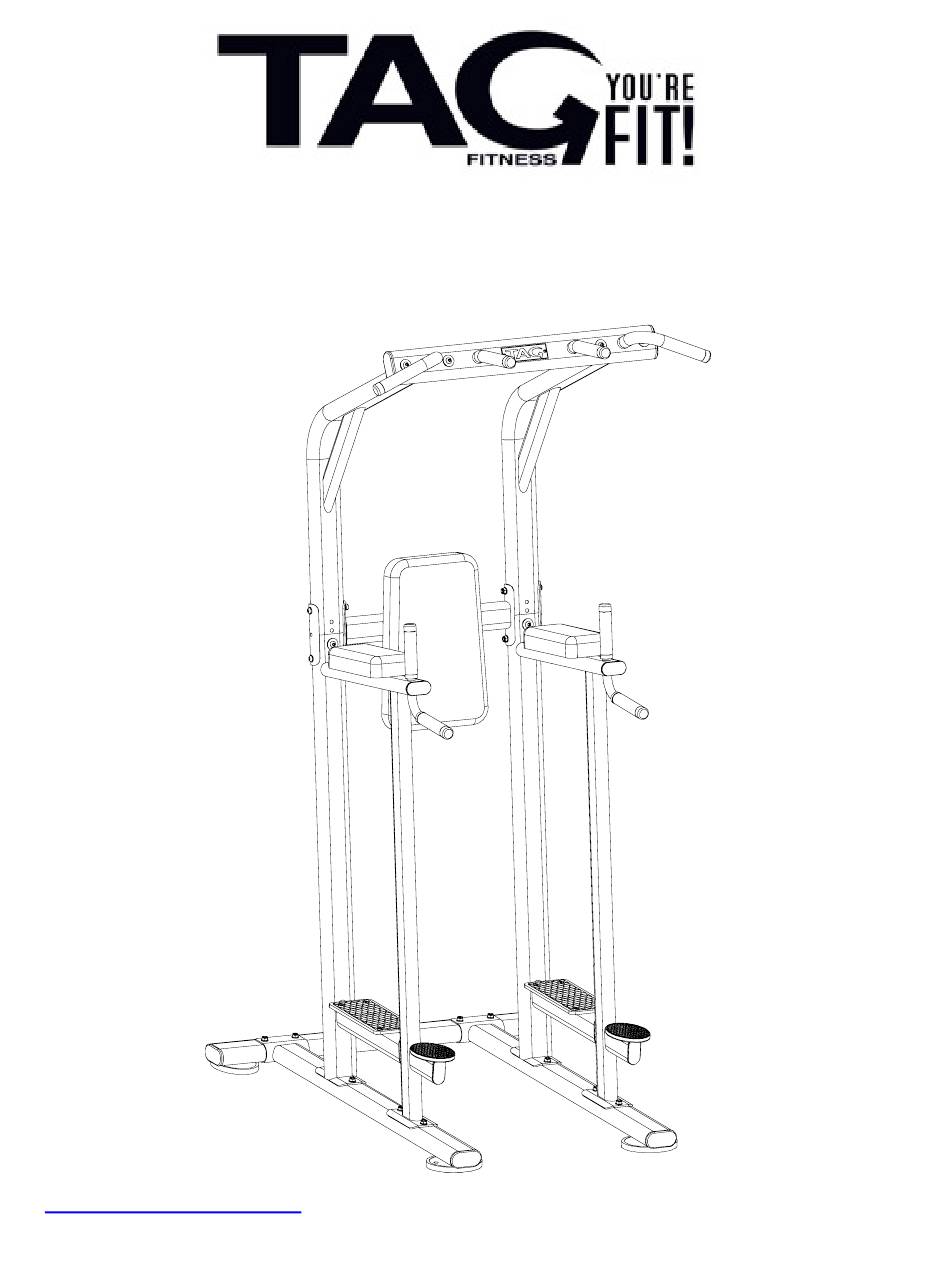

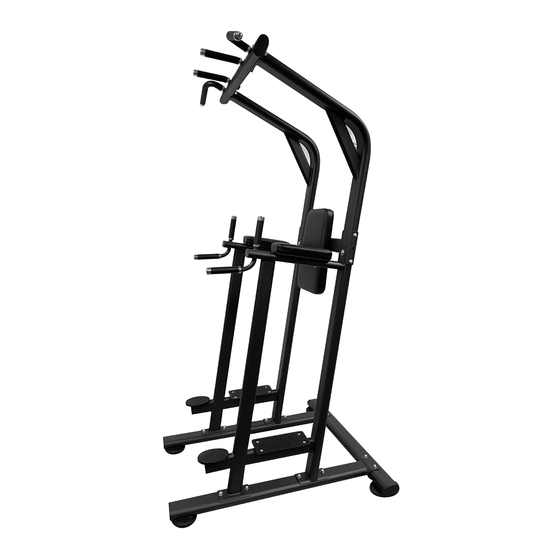

- Page 1 TAG VERTICAL KNEE RAISE/CHIN/DIP www.tagfitness.net 630-375-1500...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS TAG Fitness products are designed and manufactured to the highest standards in order to provide you with years of great workouts. We proudly stand behind all our products with the best customer service in the fitness industry. If you have any...
- Page 3 EXPLODED DRAWING...
- Page 4 PARTS LIST Part Part Description Q’ty Description Q’ty Foam ∮24*5*140 Rear base frame Foam ∮24*5*175 Front base frame End cap ∮25*2 Foam ∮24*5*290 Lower upright frame Name plate 146*45*2 Flat washer ∮9*∮16*1.6 Upper upright frame Flat washer ∮11*∮20*2 Cross frame Flat washer ∮11*∮34*3 Upper cross frame Curved connection bracket...
- Page 5 ASSEMBLY STEPS Step 1. Connect Rear base frame （1） ， Front base frame （2） and Right base frame(3) using Flat washer ∮11*∮20*2(24), Nut M10(26) and Allen bolt M10*70(30). Please don’t tighten all the bolts.. Step 2. Connect Front base frame (2) , and Lower upright frame(4), using Flat washer ∮11*∮ 20*2(24), Nut M10(26) and Carriage bolt M10*65(35).
- Page 6 Step 3. Connect Lower upright frame(4), Upper upright frame(5) using Flat washer ∮11*∮ 34*3 (25), Nut M10(26) and Allen bolt M10*65(29). Please don’t tighten all the bolts.. Step 4. Connect Lower upright frame(4), Upper upright frame(5), Cross frame(6) and Curved connection bracket(8) using Flat washer ∮11*∮20*2 (24), Nut M10(26) and Allen bolt M10*125 (31).
- Page 7 Step 5. Connect Upper upright frame(5) and Upper cross frame (7) using Flat washer ∮11*∮ 20*2 (24), Flat washer ∮11*∮34*3 (25),Nut M10(26) and Allen bolt M10*70(30). Please tighten all the bolts. Step 6. Fix Back pad(9) to Cross frame(6), using Flat washer ∮9*∮16*1.6(23), Allen bolt M8*25(27) ;...
