TAG S-Line 708 Manual

Chest/shoulder combo
Hide thumbs

Advertisement

Quick Links

Download this manual

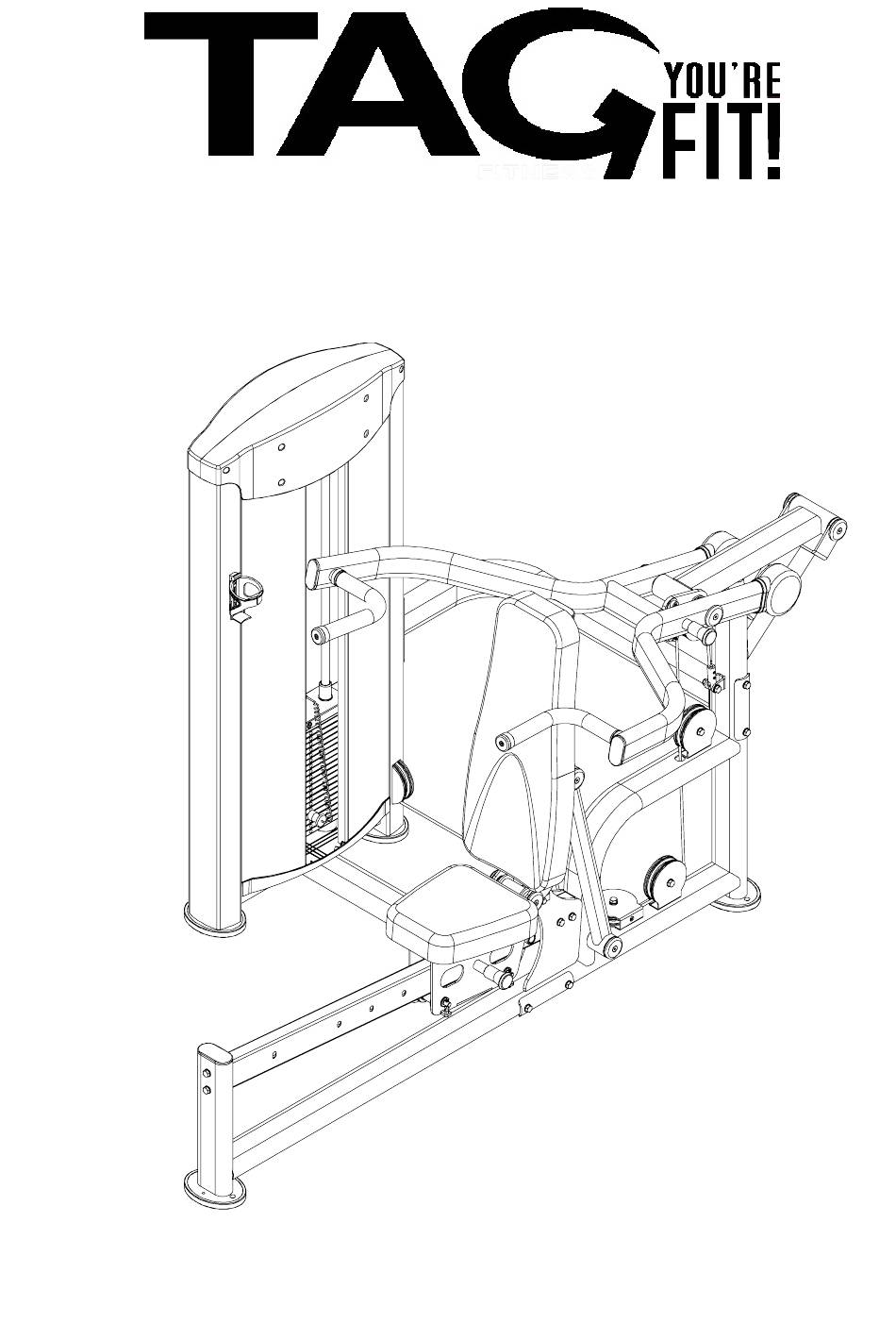

MODEL # S-Line 708
CHEST/SHOULDER COMBO
www.tagfitness.net
630-375-1500

Advertisement

loading
Need help?

Need help?

Do you have a question about the S-Line 708 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TAG S-Line 708

Summary of Contents for TAG S-Line 708

  • Page 1 MODEL # S-Line 708 CHEST/SHOULDER COMBO www.tagfitness.net 630-375-1500...
  • Page 2 ABSTRACT PREVENTIVE MAINTENANCE..................3 SPECIFICATIONS OF THE PRODUCT................3 SAFETY INFORMATIONS..................... 4 ASSEMBLY ........................5 Pictures and photos in this manual are merely illustrative. The company reserves the right to change specifications and design without notice. This manual may illustrate optional items which are not part of the equipment purchased. Read all the information applied to the product and the Manual/Guide that comes with it.
  • Page 3 PREVENTIVE MAINTENANCE SPECIFICATIONS OF THE PRODUCT Follow these guidelines to maintain perfect operation of the equipment. Note: For your convenience and quick access, the same information is applied in the product, sticker fixed on tower.

  • Page 4: Safety Informations

    SAFETY INFORMATIONS Before using the equipment, carefully read all the safety labels and warnings related to the equipment as well as all the instructions contained in this Guide or the Equipment Installation Guide and retain them in a safe place for future reference. It is the owner's responsibility to ensure that all users of the equipment are adequately informed about the safety precautions and use.
  • Page 5 ASSEMBLY STEP 1 Assemble the tower frame(1) to the main frame(2) using lower connect tube(10) and upper connect tube(4). Fix it to fixing plate(38),fixing plate(39),and using 4 pan head Allen bolt M10x125(84), 2 pan head Allen bolt M10x100(83), 2 pan head Allen bolt M10x25(80), 14 flat washer(87), 2 spring washer(88).
  • Page 6 STEP 2 Assemble arm frame(3) to adjustable frame(9) using pivot shaft(13), 2 ending cap(22) and 2 flat head Allen bolt M8x15(68). Using the right tools to tighten bolts and nuts properly. Nº English description ARM FRAME ADJUSTABLE FRAME PIVOT SHAFT ENDING CAP FLAT HEAD, ALLEN BOLT M8x15...
  • Page 7 STEP 3 Fix2 base cover(45) to tower frame(1) using 4 panhead Phillips bolt M6x15(65). Using right tools tighten bolts properly. Nº English description Tower frame Base cover Pan head Philips bolt M6x15...
  • Page 8 STEP 4 Remove 2 pan head Allen bolt M10x25(75), 2 spring washer(88) and 2 flat washers(87) from guide-rod(24). Incline the guide-rod(24) as shown in the drawing and then remove the combination top weight stack(26). Make sure the shock absorber rubber(42) is in the right position as shown in the drawing, then put 19 weight stacks(27) into the guide-rod(24), insert back the combination of the top weight stack(27).
  • Page 9 STEP 5 Fix 4 side faces(48) in the tower frame(1) using pan head Phillips bolt M6x15(65), 8 in the front and 8 in the back, using the right tools tighten bolts properly. Insert 2 front covers (46) and 1 back cover(47) in the tower frame(1). Then fix the bottle cage (49) on the tower frame(1), using pan head Phillips bolt M5x15(64), and using the right tools tighten bolts properly.
  • Page 10 STEP 6 Fix back cushion(53) to back adjusting tube(5), using 4 hex head bolt M10x25(80) and 4 flat washers(87). Install the seat cushion(52) to the seat adjusting tube(7) using 4 hex head bolt M10x25(80) and 4 flat washers(87). Using right tools tighten bolts and nuts properly.
