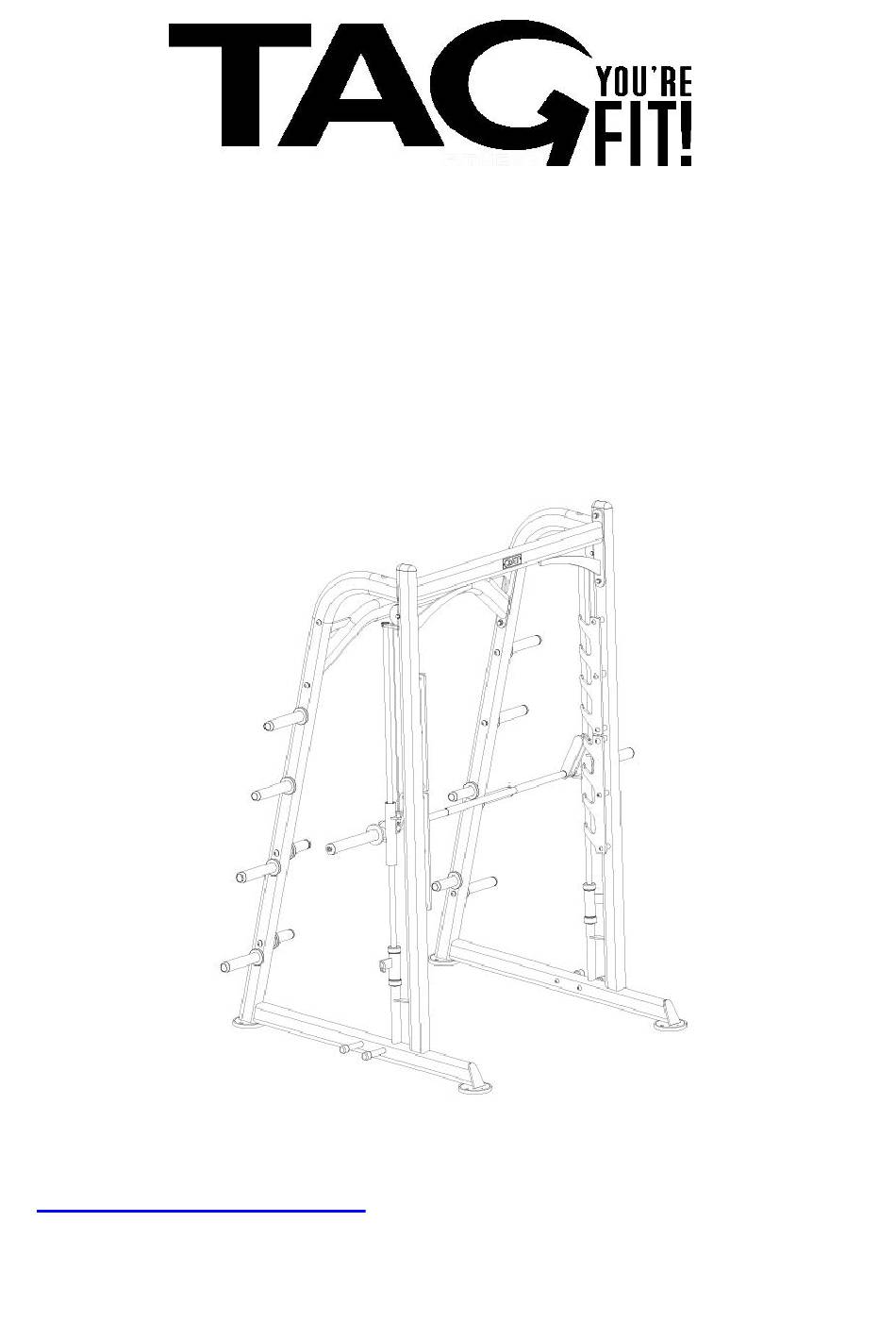

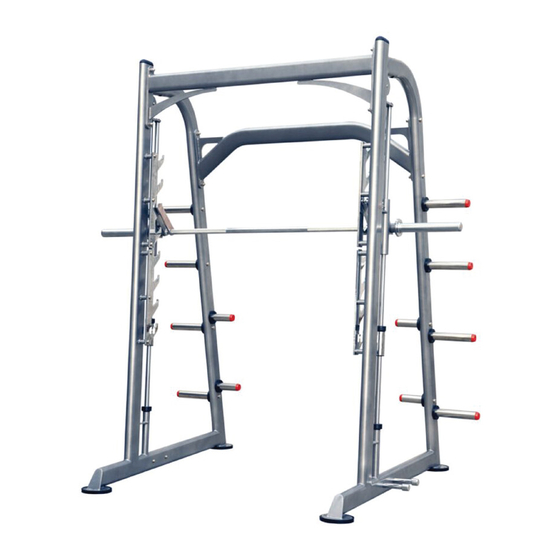

- Page 1 Smith Machine Model 872SM www.tagfitness.net Phone:630-375-1500...
-
Page 2: Exploded Drawing
EXPLODED DRAWING... -
Page 3: Parts List
PARTS LIST Part No. Description Q’ty Part No. Description Q’ty Main Frame-L End Cap PT50X100 Main Frame-R Φ45 End Cap Top Cross Frame Allen Bolt M12x75mm (3”) Sliding mechanism assembly – L Sliding mechanism assembly – R Barbell Hex Bolt M10x50mm (2”) Safety Catch –... -
Page 4: Assembly Step
ASSEMBLY STEP Note: Before starting assembly remove all parts and hardware from the carton, ensure you have everything according to the list. Step 1 Please connect the Top Cross Frames (3)and Lower Cross Frame (41) to the Main Frames (1&2), using 4 Allen Bolts (26), 12 Flat Washers (29) and 8 Lock Nuts (32). Note: Please tighten all the nuts and bolts with wrenches. - Page 5 Step 2 Please loosen 4 Allen Bolt (35) and pull up the Smith Guide Rod (11). As the picture shows, please connect these parts using Guide Rod (11), then pull down the Guide Rod (11) and tighten the Allen Bolt (35).
- Page 6 Step 3 Please pull down Cable (21) and loose Nut for ready. Remove the big washer from the Bolt, keeping the same for both sides.
- Page 7 Step 4 Please As picture shows, please put all bolts on relevant holes and tighten nuts. Keep the same for both sides.
- Page 8 Step 5...
- Page 9 Step 6...
