TAG S-Line 762 Quick Start Manual

Leg press/calf raisecombo
Hide thumbs

Advertisement

Quick Links

Download this manual

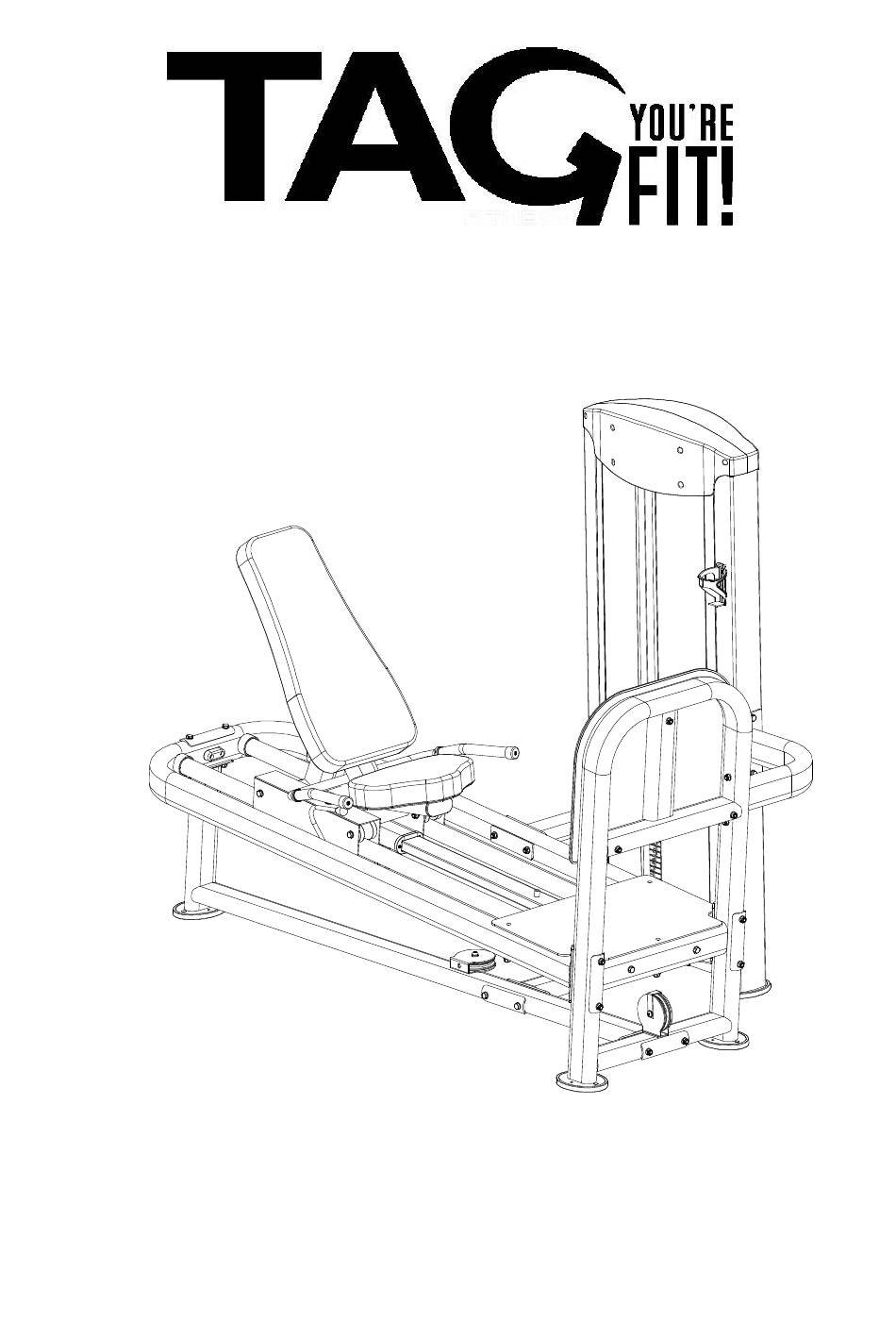

MODEL # S-Line 762
LEG PRESS/CALF RAISE COMBO
www.tagfitness.net
630-375-1500

Advertisement

loading
Need help?

Need help?

Do you have a question about the S-Line 762 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TAG S-Line 762

Summary of Contents for TAG S-Line 762

  • Page 1 MODEL # S-Line 762 LEG PRESS/CALF RAISE COMBO www.tagfitness.net 630-375-1500...

  • Page 2: Table Of Contents

    ABSTRACT ABSTRACT........................2 SAFETY AND MAINTENANCE STICKER.............3 SPECIFICATIONS OF THE PRODUCT..............4 SAFETY INFORMATIONS..................5 EXPLODED DRAWING....................6 PARTS LIST......................... 7 ASSEMBLY........................9 PROCEDURE TO ASSEMBLY THE UP COVER..........14...

  • Page 3: Abstract

    SPECIFICATIONS OF THE PRODUCT Dimension 2155x1090x1690mm (L*W*H) Tower Height 1650mm Weight Stack 100kg 220lbs Weight of Gross/Net 314,5kg/300kg 693/661lbs Pictures and photos in this manual are merely illustrative. The company reserves the right to change specifications and design without notice. This manual may illustrate optional items which are not part of the equipment purchased.

  • Page 4: Safety And Maintenance Sticker

    USE OF THE PRODUCT Instruction to use see sticker fixed on top cover of tower weight, as shown in figure. Look at the illustrations and call outs. SAFETY AND MAINTENANCE STICKER Safety and maintenance see sticker fixed on the tower.

  • Page 5: Specifications Of The Product

    SPECIFICATIONS OF THE PRODUCT Follow these guidelines to maintain perfect operation of the equipment. Note: For your convenience and quick access, the same information is applied in the product, sticker fixed on tower.

  • Page 6: Safety Informations

    SAFETY INFORMATIONS Before using the equipment, carefully read all the safety labels and warnings related to the equipment as well as all the instructions contained in this Guide or the Equipment Installation Guide and retain them in a safe place for future reference. It is the owner's responsibility to ensure that all users of the equipment are adequately informed about the safety precautions and use.

  • Page 7: Exploded Drawing

    EXPLODED DRAWING...

  • Page 8: Parts List

    PARTS LIST DESCRIPTION SPEC TOWER FRAME CONNECTING TUBE LOWER MAIN FRAME GUIDE TUBE SEAT FRAME ADJUSTING LEVER UPPER MAIN FRAME CONNECTING TUBE CONNECTING TUBE FRONT MAIN FRAME SLIDING TUBE HANDLEBAR PROTECTIVE CAP Q235,80*40*6 PLATFORM Q235, 620*490*4 ANTI-SLIPPERY PLATFORM 620*415*5 BUSH 94.4*44.8*490 Φ16*Φ12*Φ10*74 CABLE...
  • Page 9 FRONT COVER Acrilic, 184*1434*3 STOPPER PAD 30*70*20 PROCTECTING JACKET Φ15*Φ6*18 LEVER ADJUSTING COVER Φ20*50 DECORATIVE CAP OVAL:50*100*2.5 FOOTPAD 169*115*16 PLATFORM MAT 630*500*9 SHOCK ABSORBER RUBBER Φ56*Φ20.5*5 SHOCK ABSORBER RUBBER Φ55*Φ25*25 BOTTLE HOLDER 121*R35.5 HANDLE SLEEVE Φ24*3*260 CONNECTOR BEARING 6200ZZ NUT HEX FLANGE M20*1.5 STD.HEX-FL-M20*1.5-T18-WZ PHILIP HEAD, SELF-TAPPING BOLT STD.PH-ST4.2X25-T1-WZ-FT...

  • Page 10: Assembly

    ASSEMBLY STEP 1 91 81 94 91 91 84 83 91 91 84 91 91 Assemble tower frame (1), to the lower main frame (3) connect using connecting tube (2). Fix using 8 flat washer(91), 4 lock nut hex M10(94), 2 hex head bolt M10x100(83) and 2 hex head bolt M10x125(84) 1 fixing plate(28) and 1 fixing plate(29).Assemble the connecting tube(9) with the tower frame(1), using 2 flat washer(91), 2 spring washer(88) and 2 hex head bolt M10x25(80).
  • Page 11 STEP 3 91 94 91 80 91 80 84 91 Assemble the upper main frame (7) to the lower main frame (3) and front main frame (10), using 12flat washer (91), 6 lock nut hex M10 (94) and 6 hex head bolt M10x125 (84). Connect upper main frame (7) to the connecting tube (9), using 4 flat washers (91), 2 lock nut hex M10 (94) and 2 hex head bolt M10x75 (82).In this step tighten all the bolts and nuts, including the bolts and nuts of the steps 1 and 2.
  • Page 12 STEP 5 Detach from the seat frame (5), bush (27), 2 trolleys (28) of lower part, 2 pan head Allen bolt M10x100 (75). Assemble the structure of the step 4 to the guide tube(4), then insert back on seat frame(5) and fix with bush(27), trolley(28), 2 pan head Allen bolt M10x100(75) in the same place.
  • Page 13 STEP 7 Remove cable (18) from selector shaft (38), remove 2 pan head Allen bolt M10x25 (71), 2 spring washer (88) and 2 flat washers (91) from guide-rod (30). Incline the guide-rod (30), as shown in the drawing above and then, remove the combination top weight stack (37) and selector shaft (38).
  • Page 14 STEP 9 Fix 4 side faces (47) in the tower frame (1) using 20 pan head Phillips bolt M6x15 (65), 2 in the front and 2 in the back. Using right tools tighten bolts properly. Insert 2 front cover (49) in the front side of the tower frame (1). Insert the back cover (48), in the back side of the tower frame (1).

  • Page 15: Procedure To Assembly The Up Cover

    PROCEDURE TO ASSEMBLY THE UP COVER 1º Insert two screws M6x15 (2) one in each side as show the image. Adjust the screws, but not tighten completely. 2º Using your fingers thumbs, adjust the top of the cover and pay attention to press exactly upon the 4 mortises, as show the image.
