TAG S-Line767 Assembly Instructions Manual

Leg extension/curlcombo
Hide thumbs

Advertisement

Quick Links

Download this manual

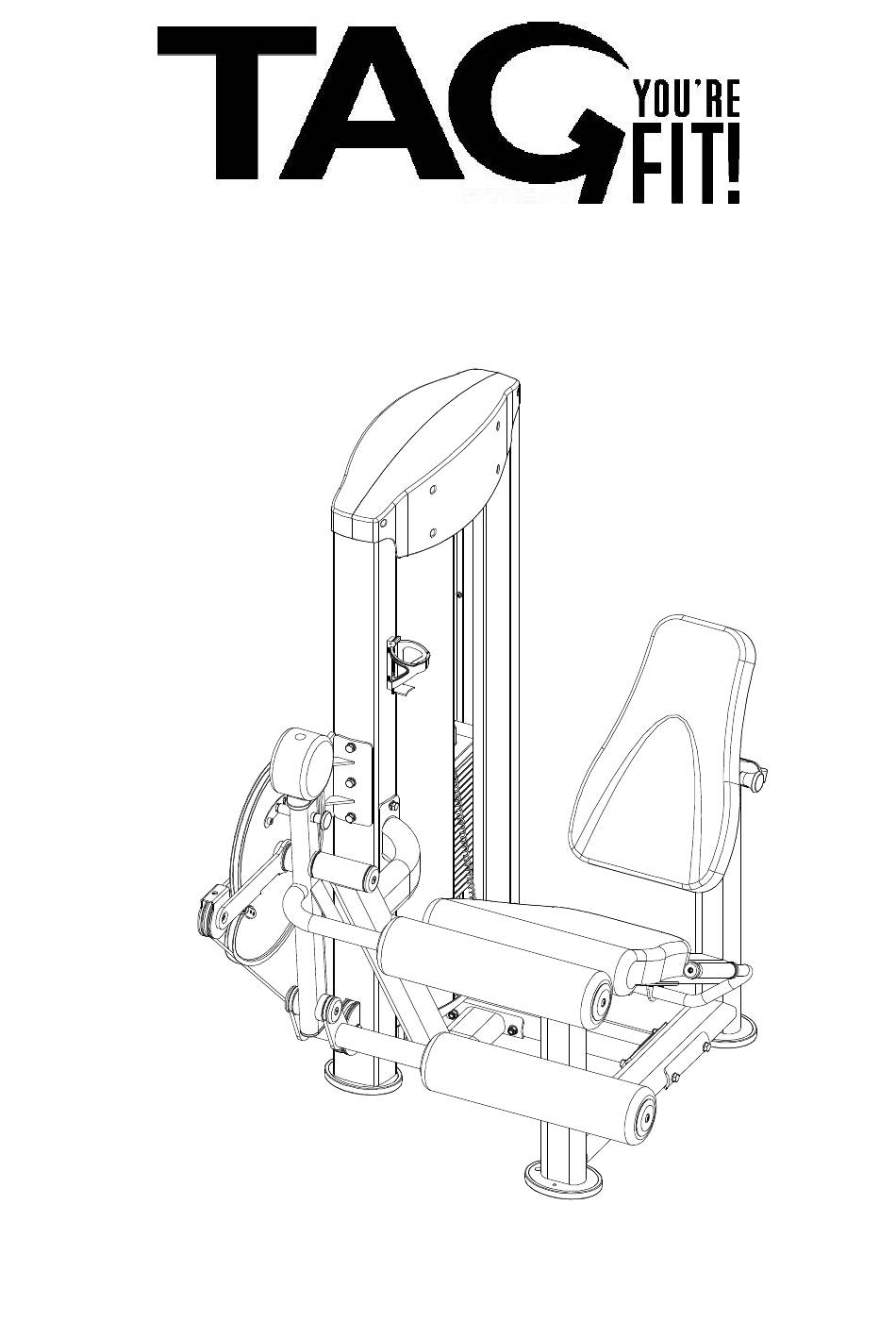

MODEL # S-Line 767
LEG EXTENSION/CURL COMBO
www.tagfitness.net
630-375-1500

Advertisement

loading
Need help?

Need help?

Do you have a question about the S-Line767 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TAG S-Line767

Summary of Contents for TAG S-Line767

  • Page 1 MODEL # S-Line 767 LEG EXTENSION/CURL COMBO www.tagfitness.net 630-375-1500...

  • Page 2: Safety Informations

    SAFETY INFORMATIONS Before using the equipment, carefully read all the safety labels and warnings related to the equipment as well as all the instructions contained in this Guide or the Equipment Installation Guide and retain them in a safe place for future reference. It is the owner's responsibility to ensure that all users of the equipment are adequately informed about the safety precautions and use.
  • Page 3 ASSEMBLY STEP 1 Assemble tower frame (1), main frame (7), connecting tube (9), curl support tube(11),)fixing plate (20) and fixing plate (21), using flat washer(63) , spring washer(64),lock nut hex M10(65), hex head bolt M10x25(66), hex head bolt M10x75(68), hex head bolt M10x100(69) and hex head bolt M10x125(70).
  • Page 4 STEP 2 Install cam support (5) to tower frame (1), using flat washer (63), spring washer (64) and hex head bolt M10x25 (66). Do not tighten the bolts and nuts at this step. Insert long Axis (16) into cam support(5),cam (2), leg cushion frame (3), curl support tube (11), then fix the long Axis(16) using ending cap (29) and flat head, allen bolt (81).
  • Page 5 STEP 3 Insert foam Axis (96) into foam support(87),curl support tube (11), then fix using ending cap (29) and flat head, allen bolt (81). Nº English description CURL SUPPORT TUBE ENDING CAP FLAT HEAD, ALLEN BOLT M8x15 FOAM SUPPORT FOAM AXIS...
  • Page 6 STEP 4 Install handle bar (10) and fixing plate (20) to main frame (7), using flat washer (63), lock nut hex M10 (65) and hex head bolt M10x75 (68). Nº English description MAIN FRAME HANDLE BAR FIXING PLATE FLAT WASHER LOCK NUT HEX M10 HEX HEAD BOLT M10x75...
  • Page 7 STEP 5 Fix back cushion (37) to the adjusting tube (8) using 2 flat washers(63) and 2 pan head Allen bolt M10x25(66), then remove hex head bolt M8x25(71) from main frame(7), install adjusting tube(8) to right position ,fixed the hex head bolt M8x25(71); Fix cushion (36) to main frame (7) using 4 flat washer (63) and 4 hex head bolt M10x25 (66).
  • Page 8 STEP 6 Install base cover (45) to tower frame (1) using pan head phillips bolts M6x15(80). Fix 2 side faces (49) in the tower frame (1) using 8 pan head Phillips bolt M6x15 (80), Using the right tools tighten bolts properly. Nº...
  • Page 9 STEP 7 Remove the terminal (59) from selector shaft (25). Remove 2 pan head Allen bolt M10x25 (72), 2 spring washer (64) and 2 flat washers (63) from guide-rod (22). Incline the guide-rod (22) as shown in the drawing and then remove the combination of the top weight stack (24) and selector shaft (25).

  • Page 10: Completed Assembly

    STEP 8 Fix 1 top cover(44) on the tower frame(1), Using 10 pan head Phillips bolt M6x15(78),. Using the right tools tighten bolts properly. Nº English description TOWER FRAME TOP COVER PAN HEAD, ALLEN BOLT M6*15 PAN HEAD, PHILLIP BOLT M6*15 SIDE FACE BACK COVER FRONT COVER...
