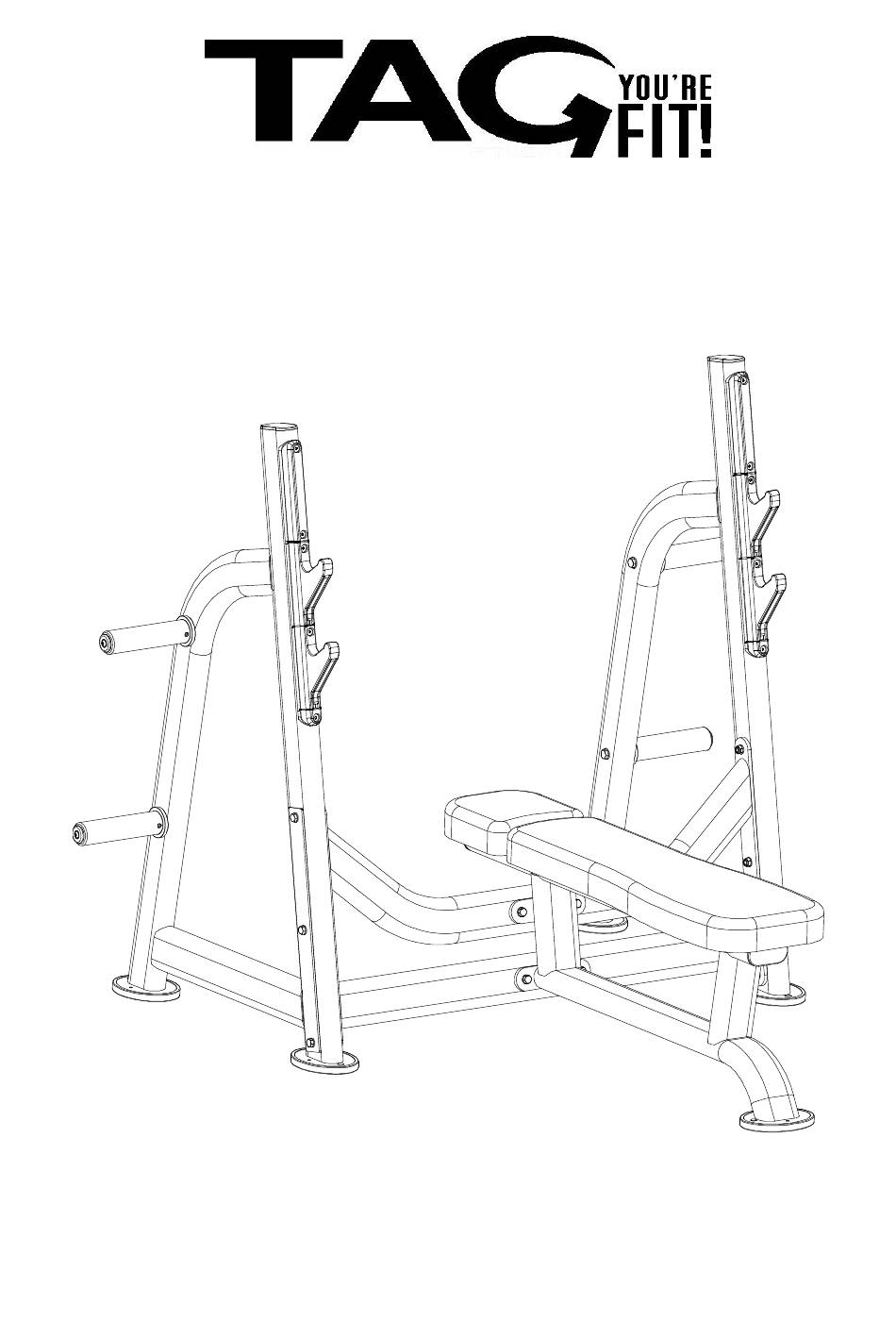

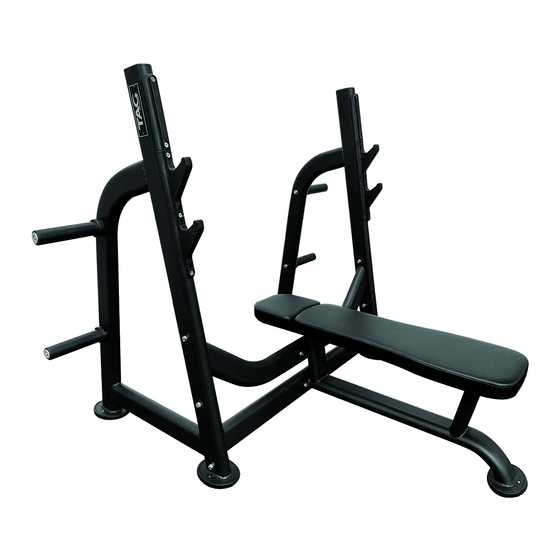

- Page 1 MODEL# BNCH-OFB TAG Olympic Flat Bench 602B www.tagfitness.net 630-375-1500...
-
Page 2: Exploded Drawing
EXPLODED DRAWING... -
Page 3: Parts List
PARTS LIST DESCRIPTION SPEC WEIGHT SUPPORT Φ25*253.5 MAIN FRAME CONNECTING FRAME LEFT FRAME RIGHT FRAME CUSHION 900*300*70 CUSHION 245*240*70 DECORATIVE CAP OVAL:50*100*2.5 FIXING PLATE 525*50*4 FIXING PLATE 178*50*5 PROTECTION COVER 183*114*50 PROTECTION COVER 220*50*34 PROTECTION COVER 50*34*37 SHOCK ABSORBER RUBBER Φ63.5*Φ26*15 FOOTPAD 169*129*16... - Page 4 ASSEMBLY STEP 1 Assemble the connecting frame(3) to the left frame(4) and right frame(5) using 12 flat washer(22), 6 hex head bolt M10x75(20), 2 fixing plate(9) and 6 lock nut hex M10(24) and using the right tools tighten nuts and bolts properly. STEP 2 Assemble the main frame(2) to the connecting frame(3), using 8 flat washer(22), 4 pan hex head bolt M10x75(20) 2 fixing plates(10) and 4 lock nut hex M10(24) and using the right tools tighten bolts and nuts properly.
- Page 5 STEP 3 Assemble 4 weight supports (1), 2 on left frame (4) and 2 on right frame (5), using 4 flat washer (23) and 4 hex head bolt M12x20 (21) and using the right tools to tighten bolts and nuts properly. Then put 1 shock absorber rubber(14) on each weight support (1).
