Display - Check-line DC**-3000PS series Operating Instructions Manual

10.0 MEASURING LIMITS
Minimum Radius for Convex Surfaces
Minimum Radius for Concave Surfaces
Minimum Headroom
Minimum Sample Diameter
Minimum Substrate Thickness - F
Minimum Substrate Thickness - NFe
11.0 RESOLUTION TABLE
Microns (μm)
000.0 – 999 μm 0.1 μm
100.0 – 249.8 μm 0.2 μm
250.0 – 499.5 μm 0.5 μm
500.0 – 999.0 μm 1.0 μm
1,000 – 1500 μm
0.002 mm
Mils
00.00 – 9.99 mils 0.01 mils
10.00 – 24.98 mils 0.02 mils
25.00 – 49.95 mils 0.05 mils
50.00 – 60 mils 0.1 mils
© Checkline-Europe
3mm (0.12")
5mm (0.2")
100 mm (4")
5mm (0.2")
0.5 mm (20 mils)
50 μm (2 mils)
-20-

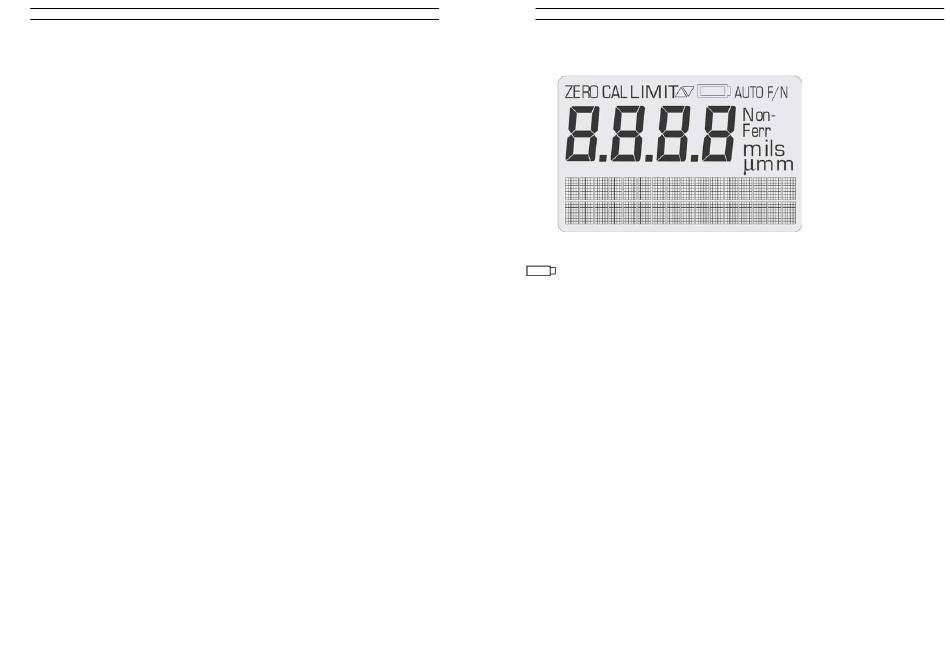

2.3

Display

If this symbol flashes, the batteries have to be changed, see page 9.
-------- Appears if limit values are exceeded or not reached.
ZERO Appears when Zero calibration is complete.
If flashing: ZERO setting begun but not completed.
CAL Appears when Foil calibration is complete.
If flashing: CAL setting begun but not completed.
LIMIT Appears if Limit values have been set.
If flashing: LIMIT setting begun but not completed.
AUTO FN Appears when automatic ferrous / non-ferrous
measuring mode is active.
Ferr Appears when ferrous measuring mode is active.
Non-Ferr Appears when non-ferrous measuring mode is active.
μm
All measured values given in μm unit.
mils All measured values given in mils unit.
© Checkline-Europe
-5-
